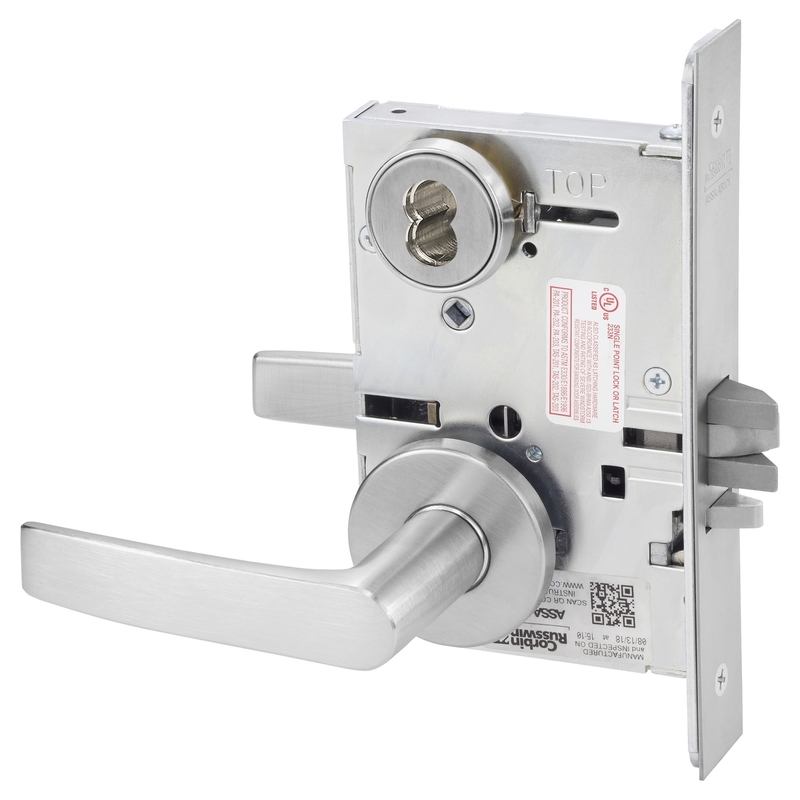

Corbin Russwin ML2057 ASA 626 CL6 Storeroom Mortise LockCorbin Russwin ML2057 ASA 626 CL6 Storeroom Mortise Lock offers durability and functionality for high-traffic environments. This Grade 1 mortise lock is engineered to withstand the demands of commercial, institutional, and industrial applications, making it ideal for offices, schools, hospitals, and hotels. The robust construction of heavy-gauge steel ensures longevity, while the patented quick reversible latchbolt allows for easy re-handing without disassembly. Designed for standard door thicknesses of 1-3/4 inches, the lock features a 2-3/4 inch backset and a 1-inch stainless steel deadbolt, providing enhanced security. The lockbody dimensions measure 5-7/8 inches x 4 inches x 15/16 inches, accommodating various door styles, including flat and beveled doors. With a variety of trim designs and a 10-year warranty, the ML2057 exemplifies versatility and reliability. This lock is compliant with ADA standards, ensuring accessibility, and meets federal specifications (FF-H-106C). It includes a Corbin Russwin 6-Pin LFIC Less Core cylinder type and comes with two nickel silver standard keys. Available in a sleek satin chrome finish, the Corbin Russwin ML2057 is an excellent choice for any door requiring dependable security and ease of use.
Storeroom Mortise Lock
Storeroom or Closet Mortise Lock, AS Lever, A Rose, 6-Pin LFIC Less Core, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F07 - Storeroom/Exit
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latchbolt
Country of origin: USA
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Door Thickness: 1-3/4"
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: AS - Armstrong Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Origin: USA
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
