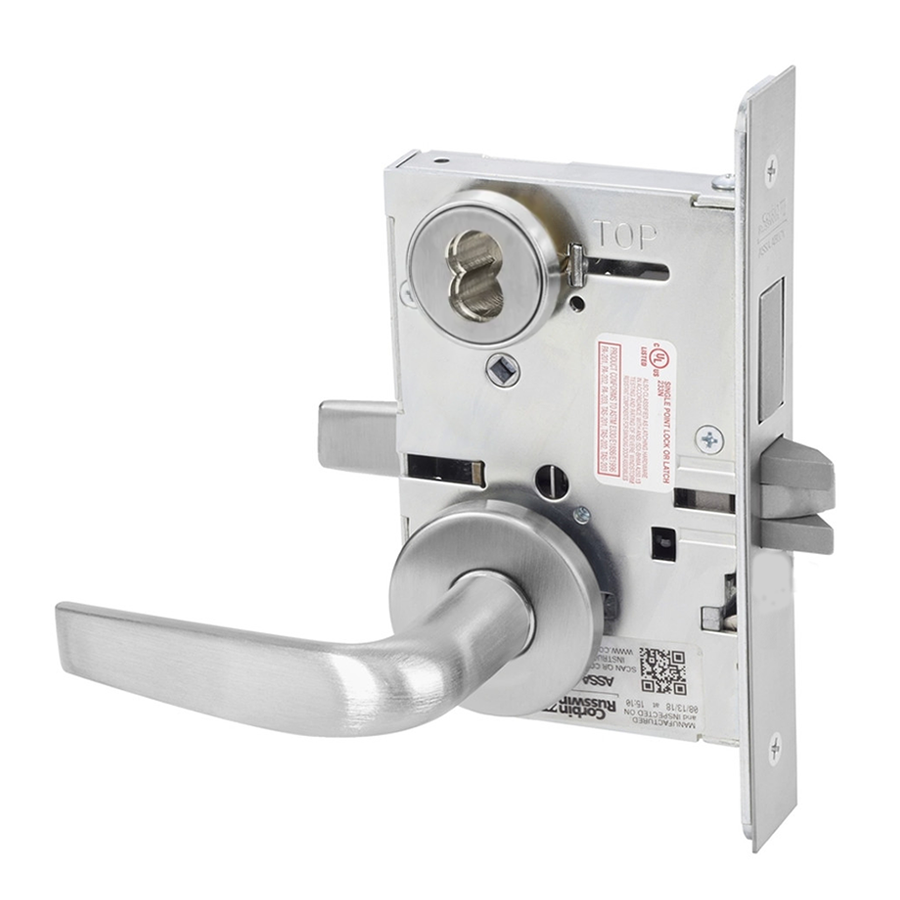

Corbin Russwin ML2065 CSA 626 CL6 V10-EMA-LH V01 Dormitory Mortise Lock with Deadbolt, Citation Lever, LFIC Core, Satin Chrome

Corbin Russwin ML2065 CSA 626 CL6 V10-EMA-LH V01 KIT is a robust dormitory mortise lock that combines security and functionality for high-traffic areas. Designed with a deadbolt and the Citation lever featuring an A Rose trim, this lock is constructed from heavy-gauge steel to withstand daily wear and tear. The LFIC 6-pin large format interchangeable core mortise housing allows for easy rekeying, making it a versatile choice for diverse applications. This model includes dual visual indicators-an exterior engraved status display (Locked/Unlocked, Green/Red) and an interior indicator-ensuring clear communication of door status. The lock supports a variety of door types, with a backset depth of 2 ¾ inches and a maximum door thickness of 4 inches, making it adaptable to different installations. Engineered for durability, the ML2000 Series exceeds ANSI/BHMA Grade 1 standards, ensuring long-lasting performance. Its innovative design features direct drive mechanics for smooth lever operation and a field-reversible latchbolt for easy re-handling. Plus, with EcoFlex®️ technology, it promotes energy efficiency, achieving up to 89% energy savings. Backed by a ten-year warranty, this lock provides peace of mind and reliability for any dormitory or commercial setting.

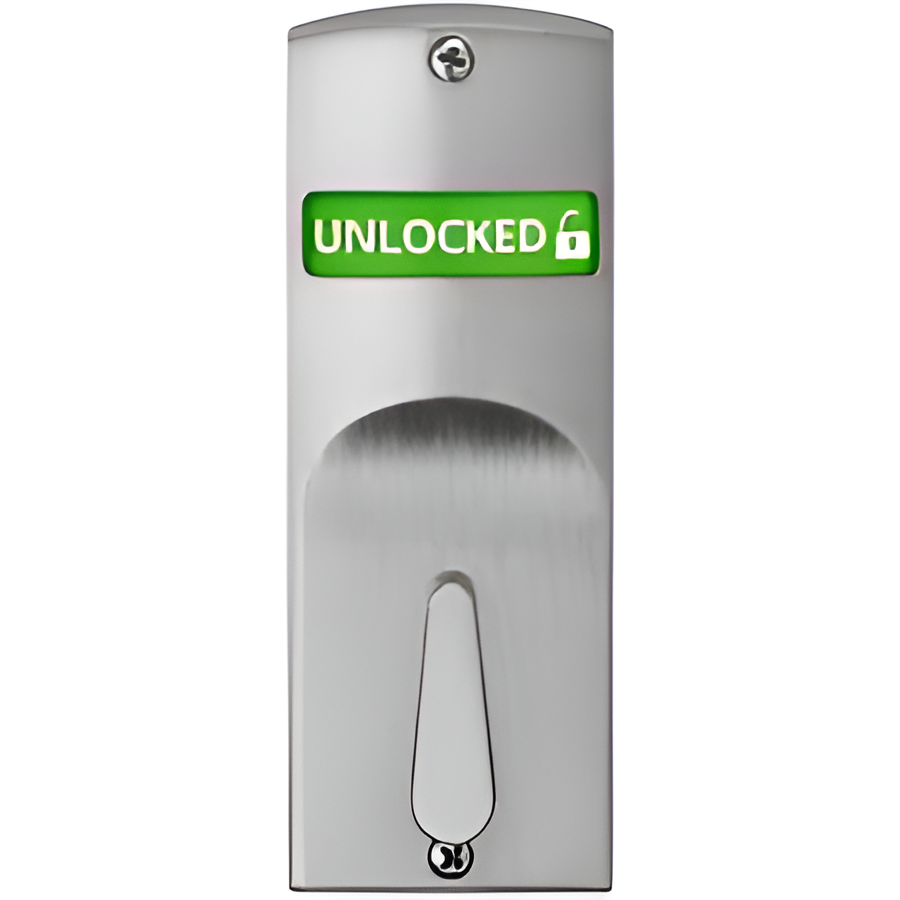

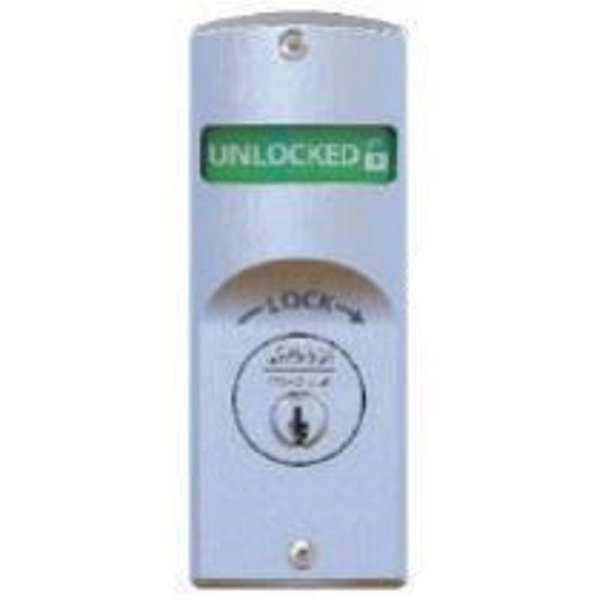

KIT - Dormitory Mortise Lock with Deadbolt, Citation Lever with A Rose Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, V10 Outside Indicator Engraved (Locked/Unlocked, Green/Red) (Left Hand LH/LHR), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
