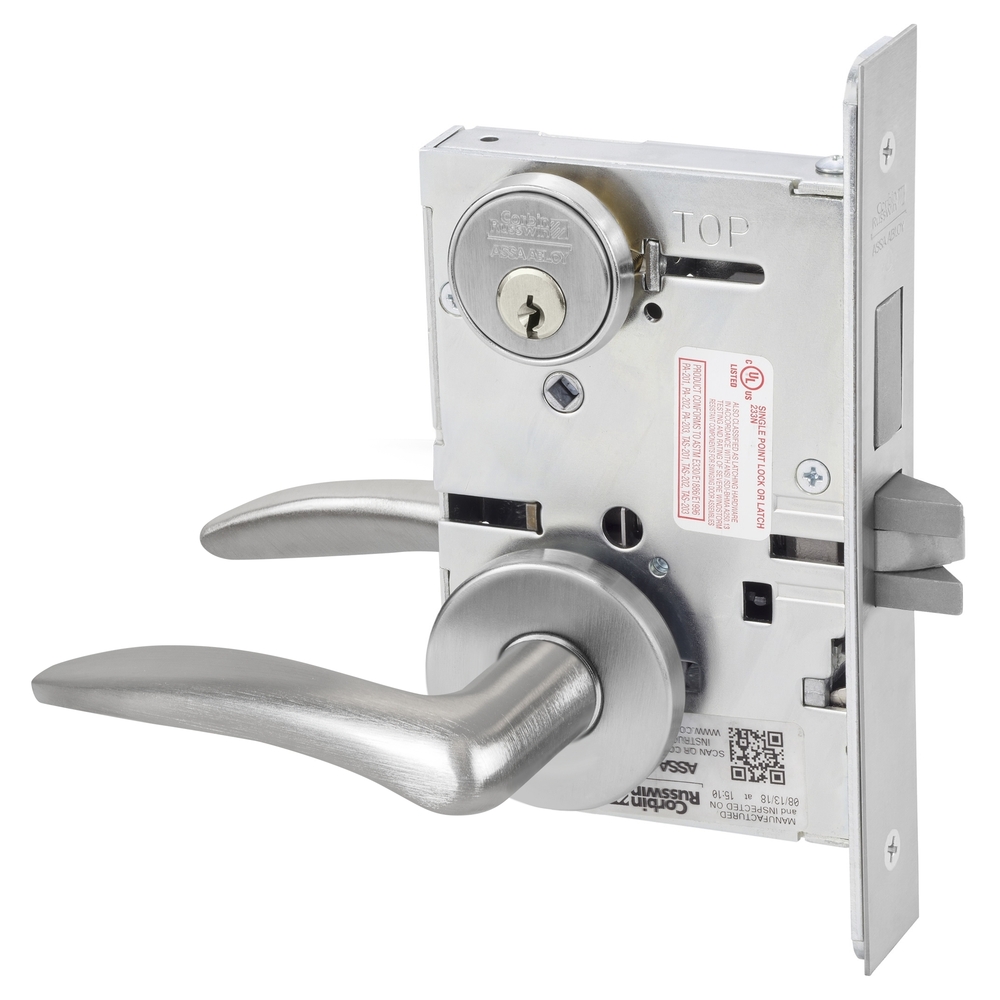

Corbin Russwin ML2065 DSA 626 LH Dormitory Mortise LockCorbin Russwin ML2065 DSA 626 LH Dormitory Mortise Lock offers a robust solution for high-traffic areas in commercial and institutional settings. Designed for durability, this Grade 1 mortise lock is constructed from heavy-gauge steel, featuring a patented quick reversible latchbolt and a 1" stainless steel deadbolt. Its versatile design is suitable for offices, schools, hospitals, and hotels, ensuring reliable security across various applications. The lock accommodates standard door thicknesses of 1-3/4" and has a backset of 2-3/4". The lockcase dimensions are 5-7/8" x 4" x 15/16", and it can be configured for non-ferrous materials for added corrosion resistance. Aesthetically, the lock is finished in satin chrome (626/US26D) and includes an A Rose trim design with a Dirke lever. Additionally, the ML2065 is crafted to meet accessibility standards and is compliant with ADA regulations. It comes with two nickel silver standard keys and is backed by a 10-year warranty for peace of mind. With a fire rating of 3 hours and a federal compliance rating of FF-H-106C, this lock is engineered for safety and reliability. The Corbin Russwin ML2065 is a smart choice for any facility prioritizing security and functionality.
Dormitory Mortise Lock
Dormitory or Entrance Mortise Lock, DS Lever, A Rose, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F13 - Dormitory
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 65-Dormitory or Entrance
Grade: Grade 1
Handing: LH
Keying: 0 Bitted
Keys: Blank
Leverknob Design: DS - Dirke Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
