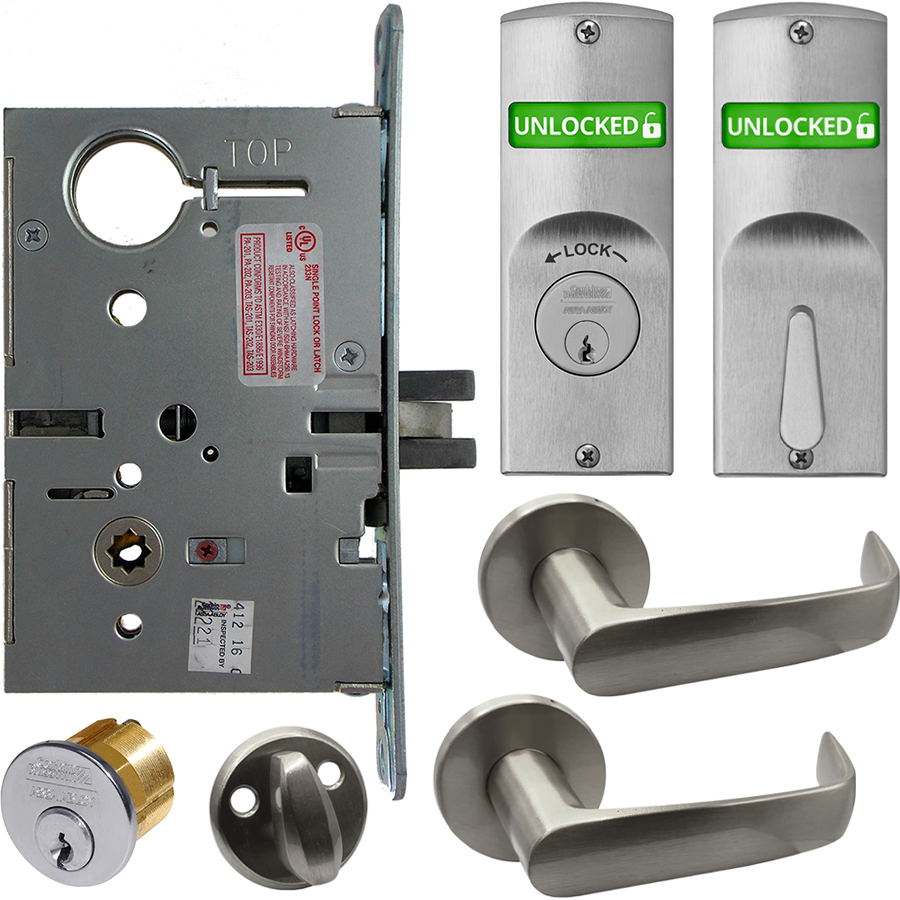

Corbin Russwin ML2065 NSA 626 L4 V10-EMA-LH V01 Dormitory Mortise Lock with Deadbolt Newport Lever, Satin ChromeCorbin Russwin ML2065 NSA 626 L4 V10-EMA-LH V01 KIT is a robust dormitory mortise lock equipped with a deadbolt and a Newport lever featuring an A Rose trim. Designed for high-traffic environments, this ANSI/BHMA Grade 1 lock offers unmatched durability and security. The heavy-gauge steel construction ensures longevity, while the innovative design minimizes wear and tear. This model includes dual status indicators-one outside and one inside-clearly displaying locked/unlocked status through green and red indicators. The lock is easily reversible in the field, allowing for quick adjustments without disassembly. It integrates seamlessly with existing Corbin Russwin key systems, enhancing security and convenience. Key features include a standard 1-1/8 mortise cylinder, an A01 Clover Cam, and a satin chrome finish (626/US26D) that not only looks sleek but also resists corrosion. The maximum door thickness is 4 inches, making it suitable for various door types, including wood and hollow metal. Additionally, it comes with a ten-year limited warranty, underscoring its reliability and quality. With advanced EcoFlex®️ technology, the lock offers significant energy savings, making it an eco-friendly choice for modern buildings. Elevate your security with the Corbin Russwin ML2065, a blend of functionality and style.
KIT - Dormitory Mortise Lock with Deadbolt, Newport Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, V10 Outside Indicator Engraved (Locked/Unlocked, Green/Red) (Left Hand LH/LHR), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2065 NSA 626 L4 V10-EMA-LH V01, ML2065NSA626L4V10EMALHV01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Locks
Door Indicators: Double Visual Indicator, Exterior Engraving - Lock and Directional Arrow, Exterior Indicator - Green/Red, Exterior Indicator - Locked/Unlocked, Interior Indicator - Green/Red, Interior Indicator - Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Dormitory
Handing: Left Handed
Keyway: Corbin L4
Lever Design: Newport
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
