Corbin Russwin ML2065 NSA 626 L4 V10-EMA-RH V01 KIT is a robust dormitory mortise lock that seamlessly combines security and functionality. Designed for high-traffic and demanding environments, this lock features a durable construction of heavy-gauge steel. The included Newport lever with an A Rose trim not only enhances aesthetics but also provides superior performance. This model includes a standard 1-1/8 mortise cylinder and an A01 Clover cam, along with dual status indicators-both exterior and interior-engraved with clear locked/unlocked markings in green and red. The right-handed handing ensures ease of use for standard door setups. The ANSI strike SS118 and satin chrome finish (626/US26D) provide a modern and polished look, making it suitable for various applications. Key benefits of the ML2000 series include its innovative design, which ensures smooth lever operation and eliminates sag. The lock is also field-reversible, allowing for easy re-handing without disassembly. With a ten-year limited warranty and compliance with ANSI/BHMA Grade 1 standards, this lock promises durability and reliability. Its environmental considerations include EcoFlex® technology, which offers significant energy savings, making the Corbin Russwin ML2065 an excellent choice for both security and sustainability.

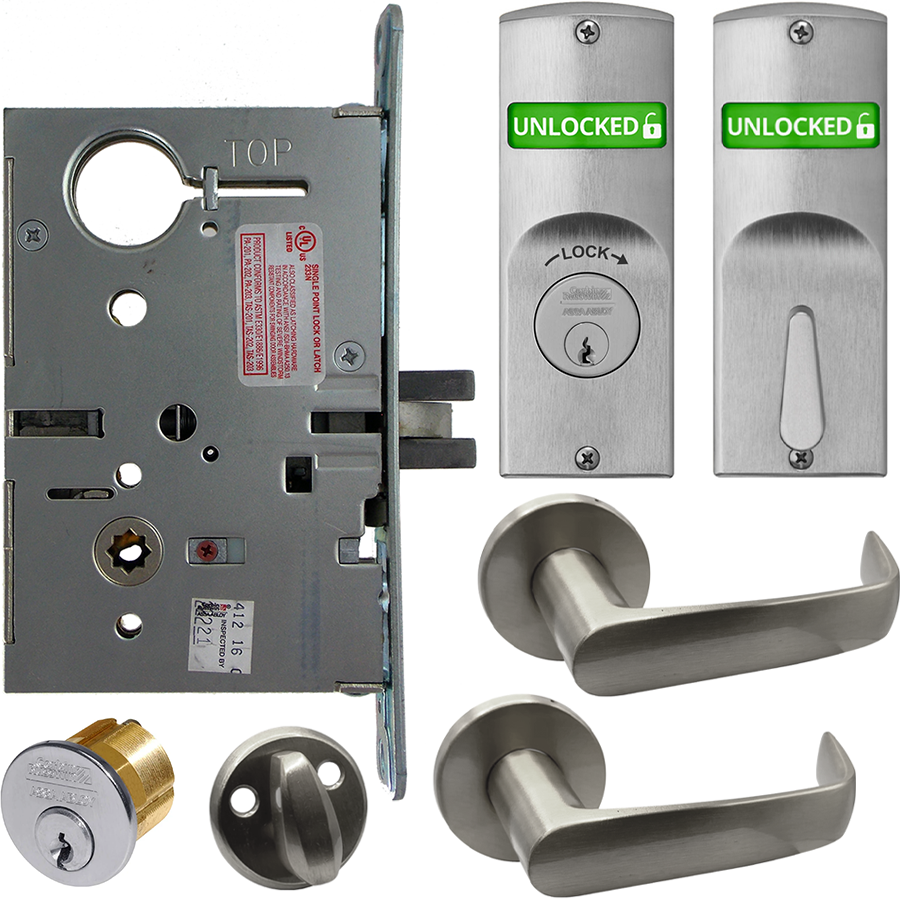

KIT - Dormitory Mortise Lock with Deadbolt, Newport Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, V10 Outside Indicator Engraved (Locked/Unlocked, Green/Red) (Right Hand RH/RHR), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
