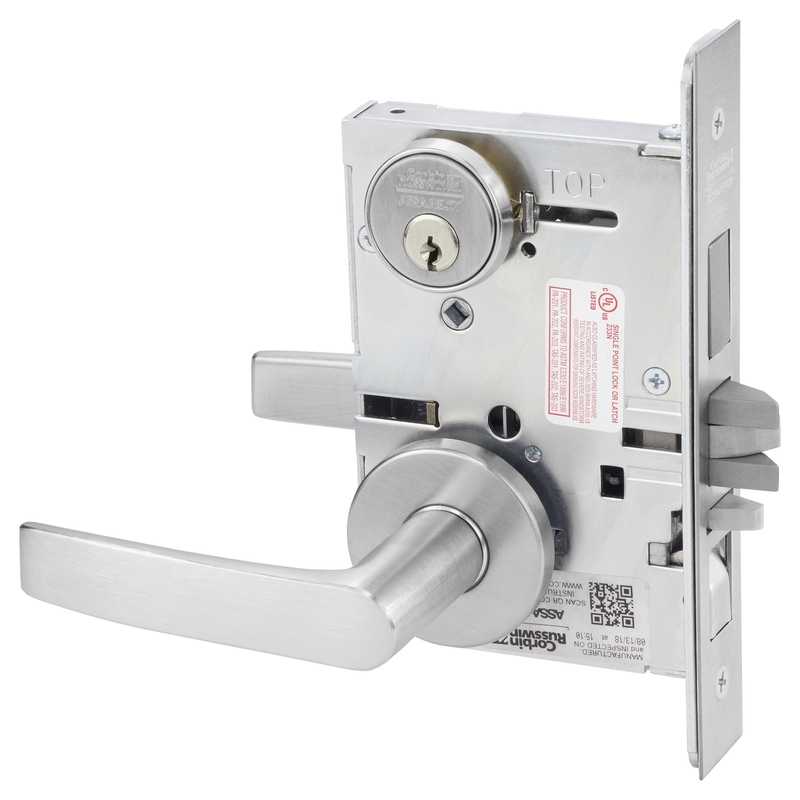

Corbin Russwin ML2067 ASA 626 Apartment Mortise LockCorbin Russwin ML2067 ASA 626 Apartment Mortise Lock offers a robust solution for high-traffic environments such as apartments and dormitories. This Grade 1 mortise lock is built from heavy-gauge steel, ensuring durability and reliability in commercial, institutional, and industrial applications. Its innovative design features a patented quick reversible latchbolt, allowing for easy re-handing without disassembling the lock case. Designed for doors with a standard thickness of 1-3/4 inches, the ML2067 accommodates a backset of 2-3/4 inches. The lock case measures 5-7/8" x 4" x 15/16", providing a secure fit for flat and beveled doors. The 1-inch stainless steel deadbolt and mechanical latchbolt with an anti-friction insert enhance its security features, making it ideal for use in offices, schools, and hotels. The lock comes equipped with two nickel silver keys and meets rigorous federal specifications (FF-H-106C). With a 10-year limited warranty, you can trust its performance. Additionally, the lock is ADA-compliant, ensuring accessibility for all users. Available in a sleek satin chrome finish, the Corbin Russwin ML2067 combines style with strength, making it a dependable choice for any high-use application.
Apartment Mortise Lock
Apartment or Dormitory Mortise Lock, AS Lever, A Rose, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F20 - Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 67-Apartment or Dormitory
Grade: Grade 1
Handing: Field Reversible
Keying: 0 Bitted
Keys: Blank
Leverknob Design: AS - Armstrong Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
