Corbin Russwin ML2067 LWA 613E CL6 KIT is a robust apartment mortise lock featuring a deadbolt toggle and a Lustra lever with A Rose trim. Designed for high-traffic areas, this lock is part of the ANSI/BHMA Grade 1 ML2000 Series, ensuring durability and reliability in demanding environments. The lock's heavy-gauge steel construction integrates innovative design features such as direct drive performance for consistent torque during lever rotation and a crisp lever return, eliminating sag. This model accommodates a wide range of applications, with a field-reversible handing that simplifies installation and adjustment. The lock is compatible with various Corbin Russwin key systems and can integrate with access control platforms, enhancing security while streamlining access management. With an EcoFlex®️ technology option, it promotes energy savings of up to 89%, making it an environmentally friendly choice. The ML2067 comes in a Dark Oxidized Satin Bronze finish (613E) and is engineered to fit standard door thicknesses of 1 3/4 inches, with a maximum capacity of 4 inches. Backset depths range from 2 3/8 inches to 2 3/4 inches. Backed by a ten-year limited warranty, this lock is a reliable investment for any property seeking enhanced security and functionality.

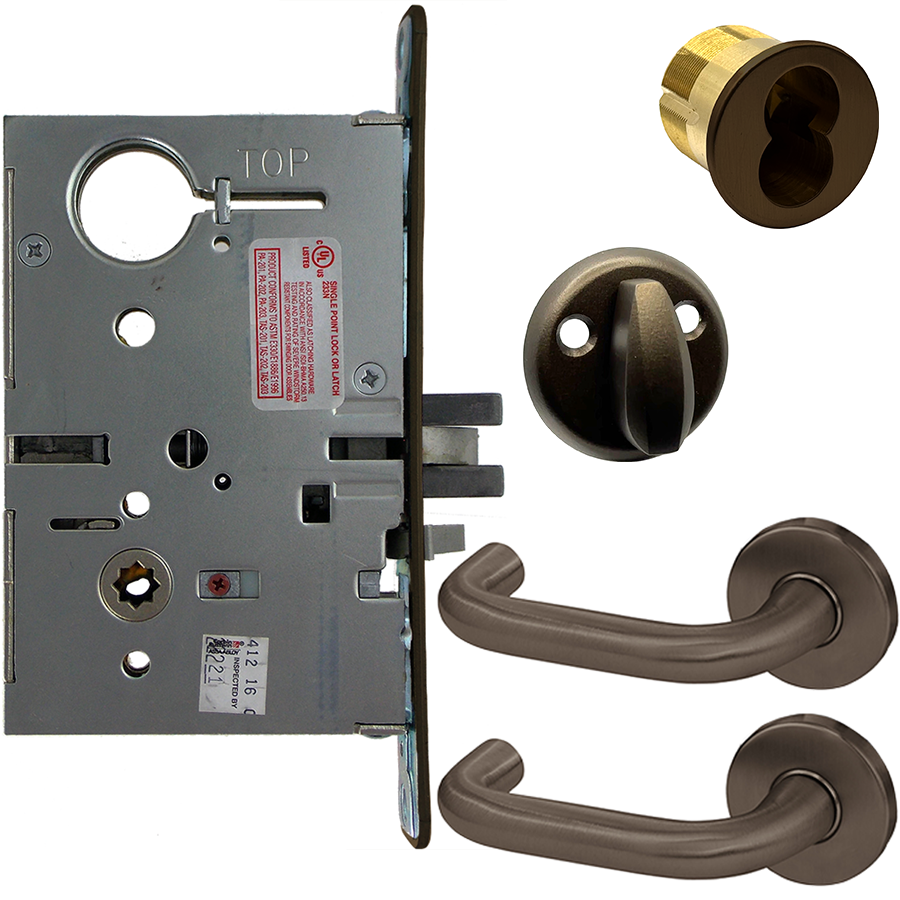

KIT - Apartment Mortise Lock with Deadbolt Toggle, Lustra Lever with A Rose Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
