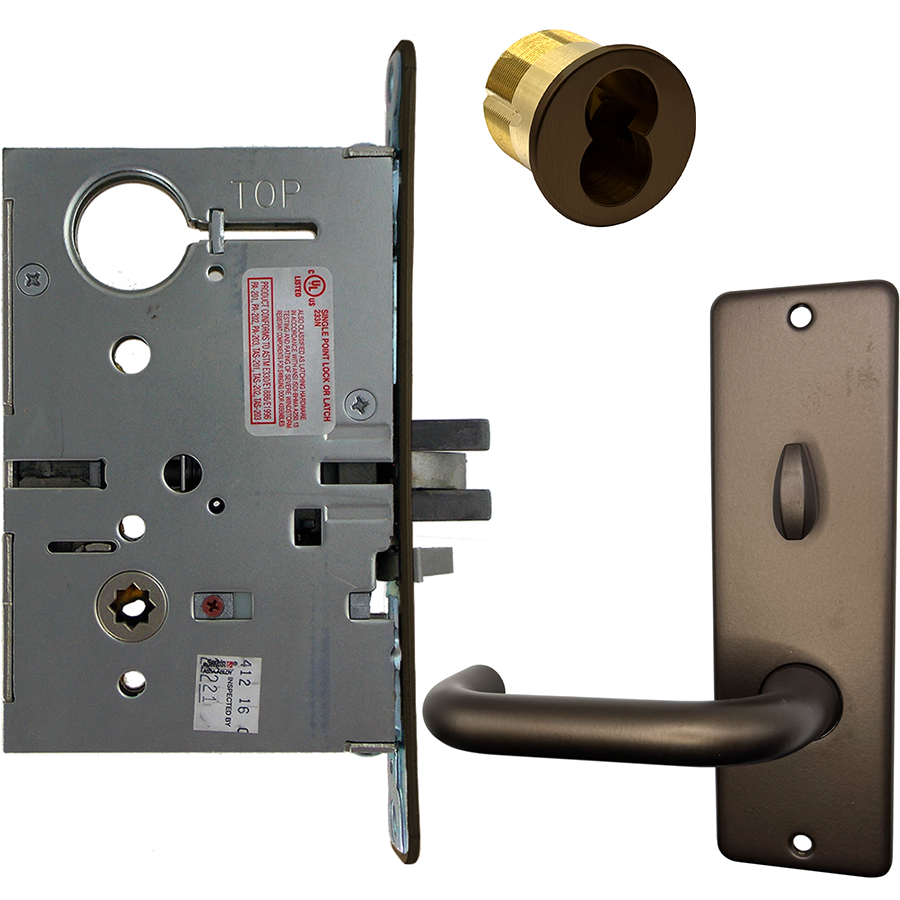

Corbin Russwin ML2067 LWM 613E CL6 Lustra Mortise Lock with Deadbolt, LFIC 6-Pin, Oil Rubbed Bronze FinishCorbin Russwin ML2067 LWM 613E CL6 KIT is a robust apartment mortise lock designed to excel in high-traffic environments. This Grade 1 lock features a deadbolt toggle, a Lustra lever with M escutcheon trim, and is compatible with a 6-pin large format interchangeable core mortise housing. The unit comes with an A01 Clover cam and a field-reversible handing for flexibility during installation. Constructed from heavy-gauge steel, the ML2000 Series offers durability that withstands intrusion attempts and abuse, making it a reliable choice for demanding applications. The lock utilizes a direct drive performance mechanism that ensures consistent torque during lever rotation, while its crisp lever return eliminates sagging, enhancing both functionality and aesthetics. With compatibility for a variety of Corbin Russwin key systems and access control platforms, this lock integrates seamlessly into existing security setups. It also features EcoFlex® technology, providing energy savings of up to 89%. The ANSI strike SS118 and UL listing further underscore its reliability. Available in a sophisticated dark oxidized satin bronze finish (613E), the Corbin Russwin ML2067 is backed by a 10-year limited warranty, ensuring long-term performance and peace of mind for building professionals and homeowners alike.
KIT - Apartment Mortise Lock with Deadbolt Toggle, Lustra Lever with M Escutcheon Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2067 LWM 613E CL6, ML2067LWM613ECL6
Ansi: A156.13, Series 1000
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Base Material: Bronze
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 6-Pin, Less Core, LFIC - Corbin
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 613E/US10BE
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Apartment
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Lustra
Leverknob Design: LW - Lustra (Wrought) Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Wrought
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Pins: 6
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M Escutcheon
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
