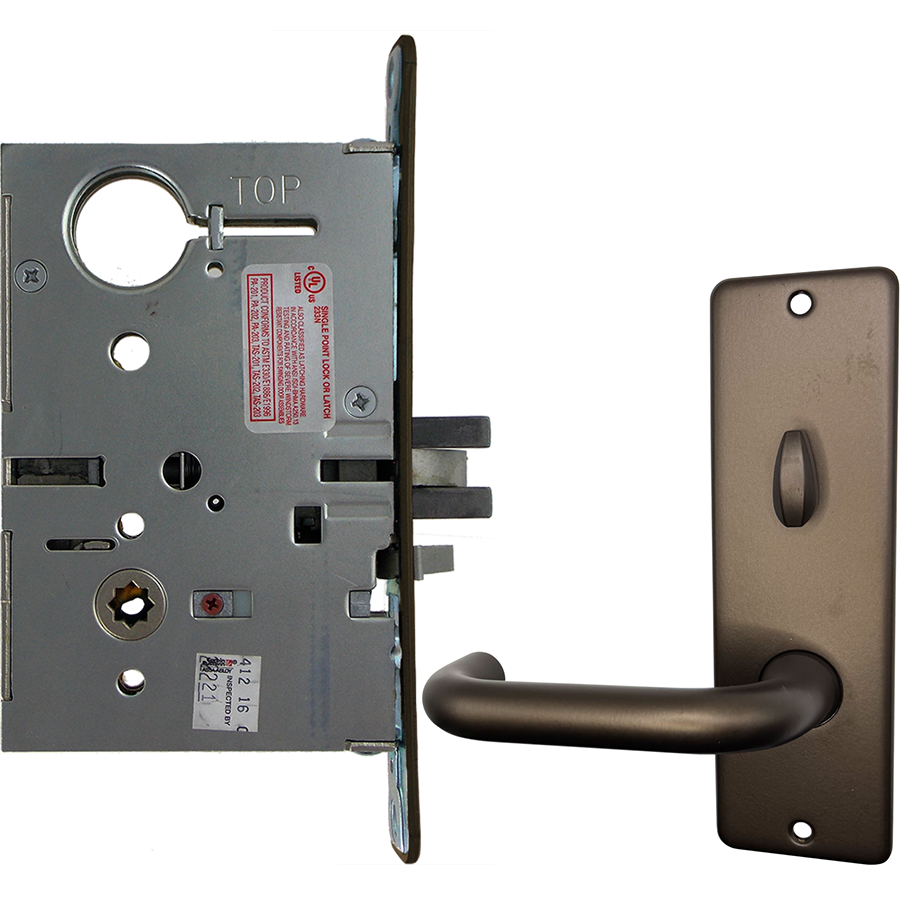

Corbin Russwin ML2067 LWM 613E LC Lustra Mortise Lock with Deadbolt, Field Reversible, Oil Rubbed BronzeCorbin Russwin ML2067 LWM 613E LC KIT offers a robust solution for apartment security with its advanced mortise lock design. This ANSI/BHMA Grade 1 lock is built to withstand the demands of high-traffic environments, ensuring reliability and durability. Constructed from heavy-gauge steel, the ML2067 features a deadbolt toggle and a Lustra lever with M escutcheon trim, providing both functionality and aesthetic appeal. Designed for versatility, the lock's handing is field reversible, allowing for easy adaptation without disassembly. The innovative direct drive performance ensures consistent torque and a crisp lever return, eliminating any sagging. With a variety of trim options and functions, including occupancy indicators, this lock meets diverse application needs. The ML2067 integrates seamlessly with Corbin Russwin's key systems, including high-security options, and supports access control platforms. Energy-efficient EcoFlex®️ technology enhances its eco-friendliness, achieving up to 89% energy savings on electromechanical functions. Specifications include a backset depth of 2 3/4", compatibility with doors from 1 3/8" to 4" thick, and a UL listing for safety. Offered in a dark oxidized satin bronze finish (613E), this lock is a reliable choice for enhancing security in residential settings, backed by a ten-year limited warranty.
KIT - Apartment Mortise Lock with Deadbolt Toggle, Lustra Lever with M Escutcheon Trim, Less 1-1/8 Mortise Cylinder, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2067 LWM 613E LC, ML2067LWM613ELC
Ansi: A156.13, Series 1000
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 613E/US10BE
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Apartment
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Lustra
Leverknob Design: LW - Lustra (Wrought) Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Wrought
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M Escutcheon
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
