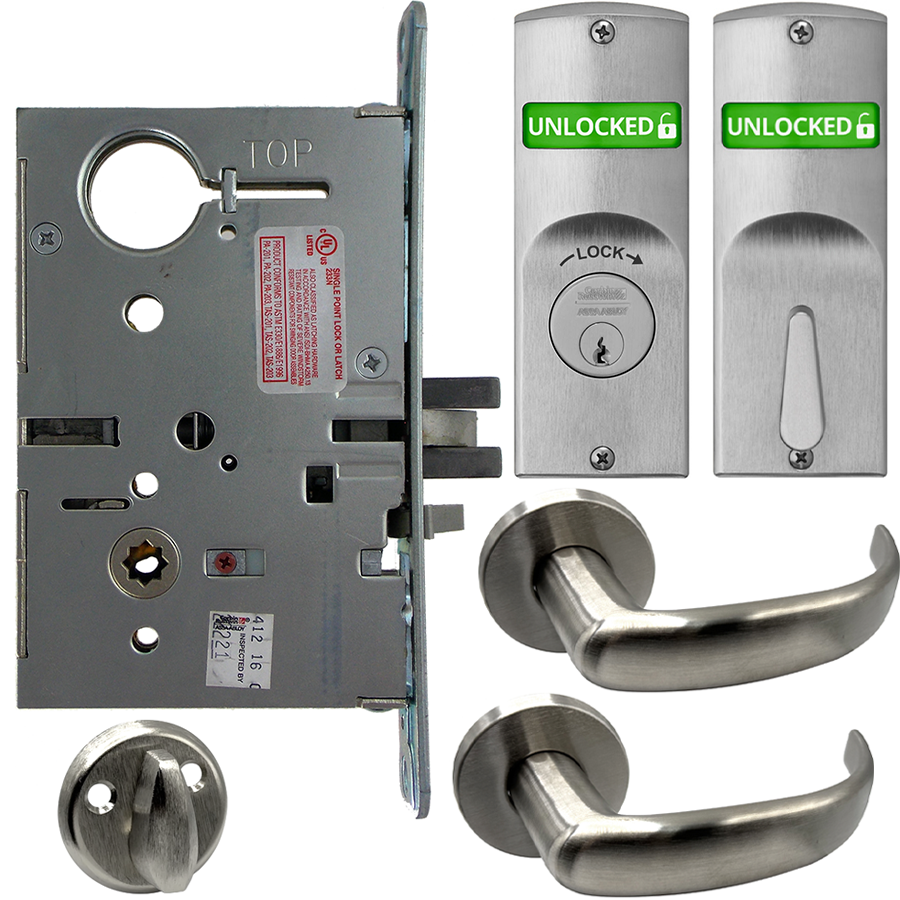

Corbin Russwin ML2067 PSA 626 LC V10-EMA-RH V01 Princeton Lever Mortise Lock with Deadbolt Indicators, Satin ChromeCorbin Russwin ML2067 PSA 626 LC V10-EMA-RH V01 KIT is a robust apartment mortise lock designed to enhance security while providing user-friendly functionality. This lock features a deadbolt toggle and is equipped with the elegant Princeton lever, complemented by an A Rose trim, all finished in a sleek Satin Chrome (626). Its unique status indicators, both outside and inside, clearly show whether the door is locked or unlocked with vibrant green and red engravings. Engineered for high-traffic environments, the ML2000 Series meets ANSI/BHMA Grade 1 standards, ensuring durability and resilience against intrusion attempts. The lock's direct drive performance guarantees consistent torque during operation, while the crisp lever return eliminates sag, enhancing user experience. Field-reversible, the latchbolt allows for easy re-handling without disassembly. With the ability to integrate into existing Corbin Russwin key systems and access control platforms, this lock offers versatility tailored to various applications. The included ANSI strike and ten-year limited warranty further solidify its reliability. Ideal for wood, hollow metal, or bullet-resistant doors, the ML2067 is the perfect choice for those seeking a blend of security, functionality, and style in their locking solutions.
KIT - Apartment Mortise Lock with Deadbolt Toggle, Princeton Lever with A Rose Trim, Less 1-1/8 Mortise Cylinder, V10 Outside Indicator Engraved (Locked/Unlocked, Green/Red) (Right Hand RH/RHR), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2067 PSA 626 LC V10-EMA-RH V01, ML2067PSA626LCV10EMARHV01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Indicators: Double Visual Indicator, Exterior Engraving - Lock and Directional Arrow, Exterior Indicator - Green/Red, Exterior Indicator - Locked/Unlocked, Interior Indicator - Green/Red, Interior Indicator - Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Apartment
Handing: Right Handed
Lever Design: Princeton
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
