Corbin Russwin ML2075 LSM 630 LC Security Entrance Mortise LockCorbin Russwin ML2075 LSM 630 LC Security Entrance Mort Lock offers robust security and exceptional performance for high-traffic environments. This Grade 1 mortise lock is specifically designed to meet the demanding needs of commercial, institutional, and government applications. Crafted from heavy-gauge steel, the lock features a patented quick reversible latchbolt and a durable 1" stainless steel deadbolt, ensuring reliable security and longevity. The ML2075 is versatile, accommodating door thicknesses of 1-3/4" as standard, with optional configurations available. Its heavy-duty lockcase measures 5-7/8" x 4" x 15/16", providing a dependable fit for various door types, including flat and beveled doors. The lock features a sleek satin stainless steel finish, with a lustrous LS lever design, enhancing both aesthetics and functionality. Security is further enhanced with the inclusion of two nickel silver keys and a 10-year warranty, making this lock an ideal choice for offices, schools, hospitals, and hotels. Additionally, it meets FF-H-106C federal specifications and is ADA compliant, ensuring accessibility. Whether you're looking to secure a busy entrance or an office space, the Corbin Russwin ML2075 LSM is a dependable solution that combines style, strength, and reliability.
Security Entrance Mort Lock

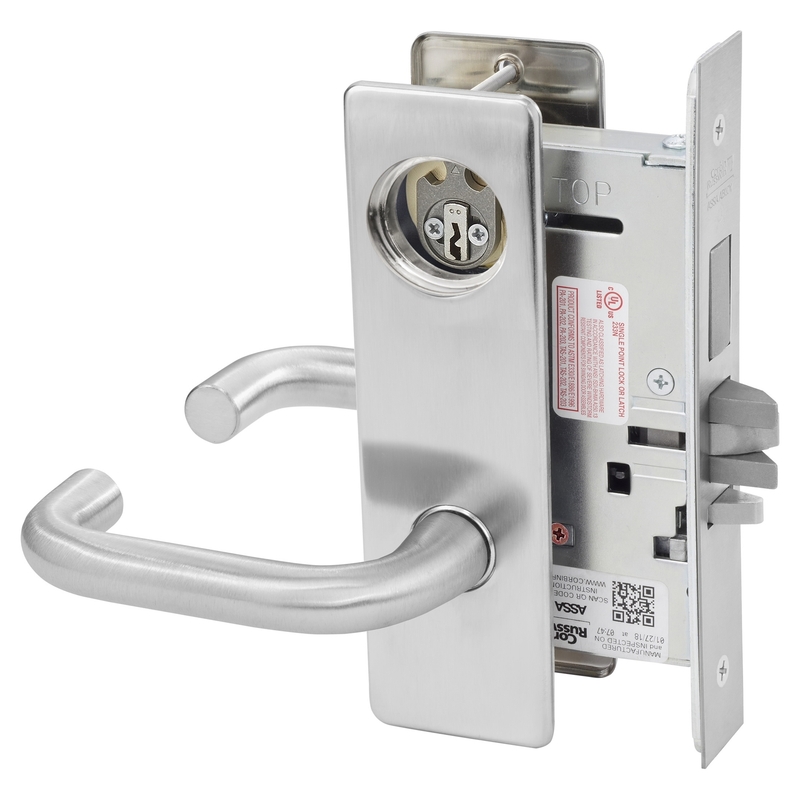

Security Entrance or Office Mortise Lock, LS Lever, M Escutcheon, Satin Stainless Steel
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Application: Complete Lock
Baa Qualified: Yes
Base Material: Stainless Steel
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Country of origin: USA
Door Thickness: 1-3/4"
Finish: 630/US32D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 75-Security Entrance or Office
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: LS - Lustra
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Origin: USA
Pack Qty: 1
Roseescutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
