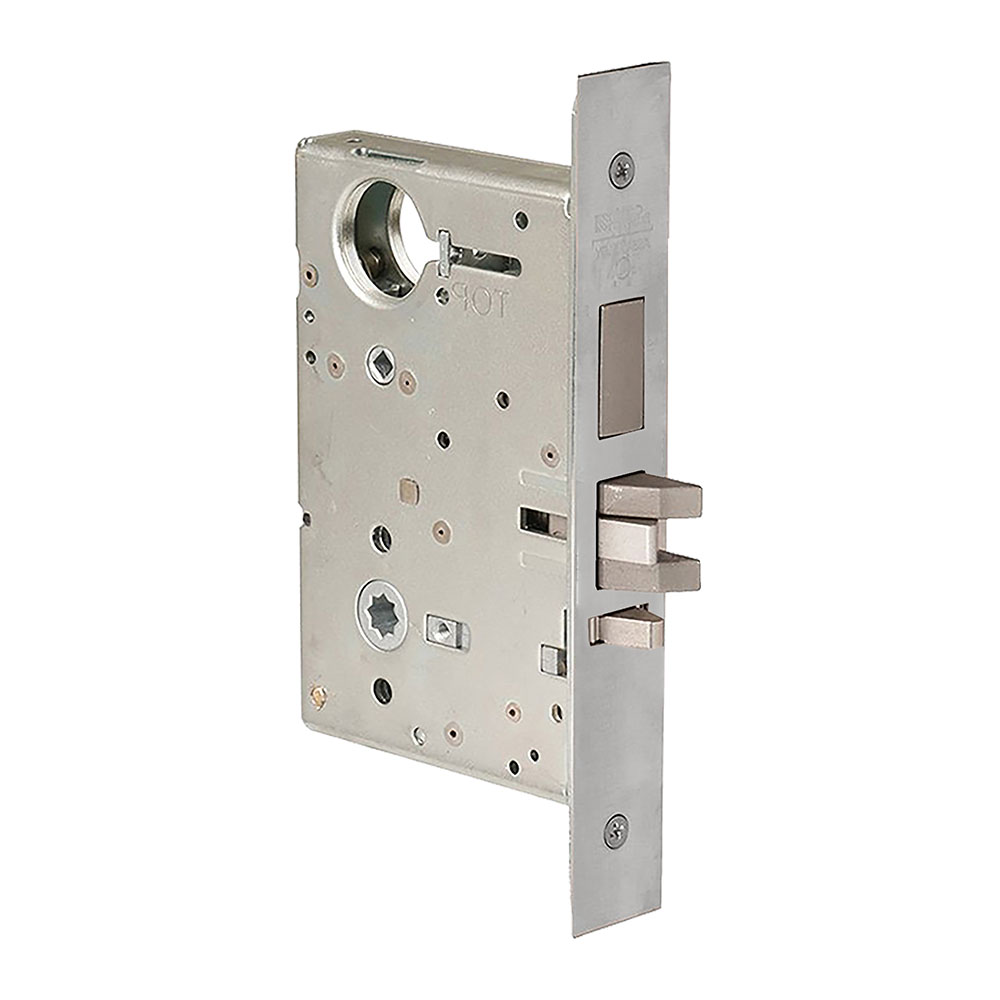

Corbin Russwin ML2075LL626 Office Entry Mortise Lever features a robust lock body designed for high-performance in commercial and institutional settings. With its satin chrome finish, this lockset not only enhances security but also adds a touch of elegance to any door. The ML2000 Series lever boasts a direct drive design, ensuring consistent torque and force during operation, while the crisp lever return effectively eliminates sag, offering reliability throughout its use. This versatile lockset is available in 63 mechanical and electrified functions, including options for vandal resistance and behavioral health, making it suitable for a wide range of applications. The Newport lever design combines both functionality and style, complemented by an A Rose escutcheon that fits seamlessly into modern architectural aesthetics. Installation is straightforward, as it integrates effortlessly with new or existing Corbin Russwin key systems, including patented high-security options. With a 2-3/4" backset and compatibility for doors up to 1-3/4" thick, it meets industry standards. Additionally, it comes with a limited 10-year warranty, ensuring peace of mind for building professionals and homeowners alike. Experience the quality and innovation that Corbin Russwin has delivered since the early 1800s with this exceptional office entry lockset.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Application: Lockbody Only
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Bolt Protection: 3/4" Latchbolt, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Dimension: 4-13/16" Lever with 2-5/8" Projection and 2-1/4" Rose
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 75-Security Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: Newport Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Wrought Brass
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
