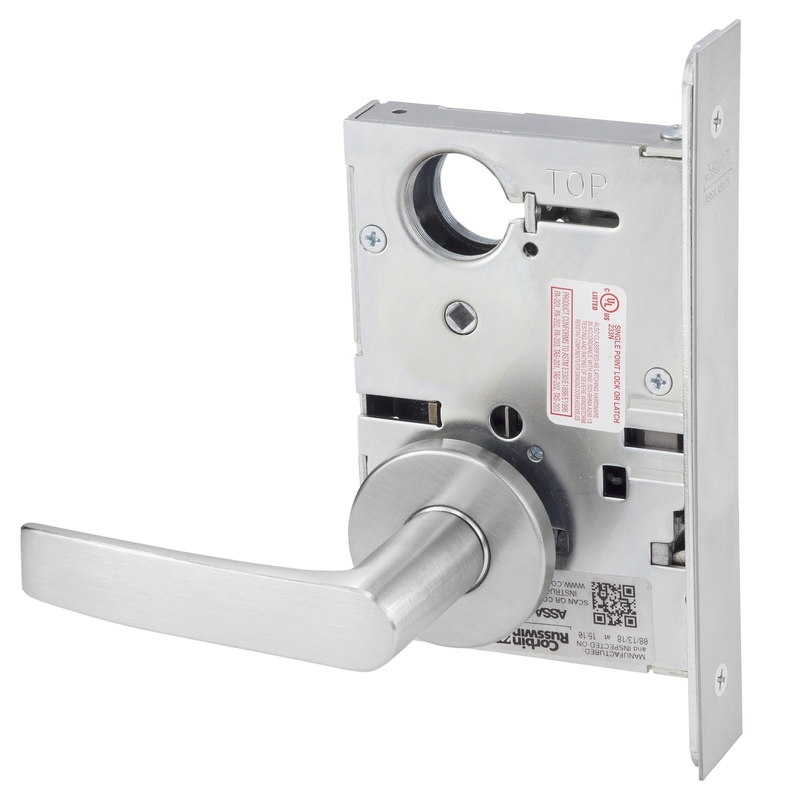

Corbin Russwin ML2080 ASA 626 Active Half Dummy Mortise LockCorbin Russwin ML2080 ASA 626 Active Half Dummy Mort Lock offers a robust solution for high-traffic environments, ensuring both security and reliability. Designed within the Grade 1 ML2000 Series, this mortise lock is constructed from heavy-gauge steel, making it an excellent choice for commercial, institutional, and industrial applications. The lock features a patented quick reversible latchbolt and a 1" stainless steel deadbolt, providing flexibility and ease of installation. The ML2080 model is finished in satin chrome (626), which not only enhances its aesthetic appeal but also contributes to its durability. With a standard door thickness of 1-3/4" and a backset of 2-3/4", it accommodates a wide range of door types. The lockcase dimensions measure 5-7/8" x 4" x 15/16", ensuring a secure fit. This product includes two nickel silver keys and meets federal specifications FF-H-106C, making it a trustworthy choice for various applications, including offices, schools, and hotels. The 10-year limited warranty underscores its quality and reliability. With ADA compliance, this lockset not only secures but also promotes accessibility, making it a thoughtful addition to any entryway.
Active Half Dummy Mort Lock
Half Active Dummy Trim Mortise Lock, AS Lever, A Rose, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: USA
Door Thickness: 1-3/4"
Finish: 626/US26D
Function: 80-Half Active Dummy Trim
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: AS - Armstrong Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Origin: USA
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
