Corbin Russwin ML20906 CSA 613E SEC M92 CL6 Electrified Mortise Lock - Fail Safe/Secure, REX Switch, Citation Lever, LFIC

Corbin Russwin ML20906 CSA 613E SEC M92 CL6 KIT is a premium electrified mortise lock designed for high-traffic environments, ensuring both security and durability. This innovative lock features a field-reversible handing system, allowing for easy installation and adjustment without disassembly. The fail-safe and fail-secure options add versatility for various applications, while the included Request to Exit (REX) switch enhances safety and accessibility. Constructed from heavy-gauge steel, the ML2000 Series meets ANSI/BHMA Grade 1 standards, ensuring it withstands harsh conditions and potential abuse. The Citation lever with A Rose trim combines aesthetics with functionality, available in a striking dark oxidized satin bronze finish (613E/US10BE). The lock can accommodate a large format interchangeable core, providing robust security and flexibility for key management. With a 10-year limited warranty, this lock integrates seamlessly with existing Corbin Russwin key systems and access control platforms. Its EcoFlex® technology not only enhances energy efficiency, yielding up to 89% savings, but also reflects Corbin Russwin’s commitment to sustainability. For reliable performance and peace of mind, the Corbin Russwin ML20906 CSA is an ideal choice for any professional or knowledgeable homeowner looking to enhance their security infrastructure.

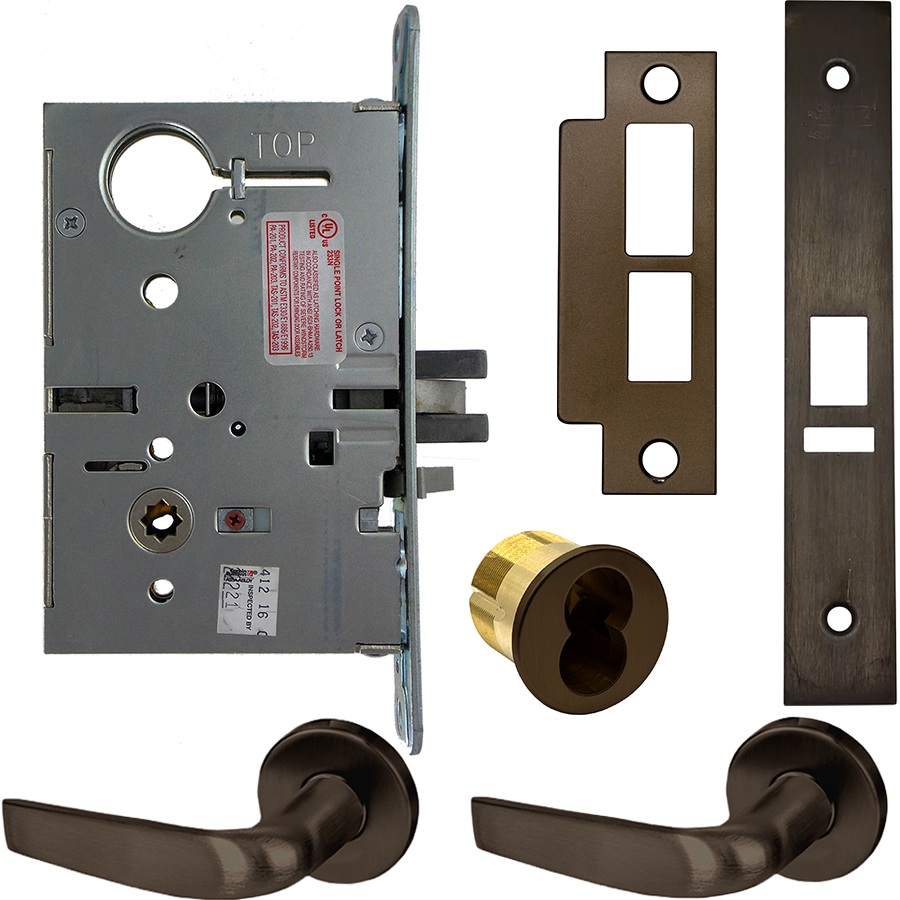

KIT - Electrified Mortise, Field Reversible - Fail Safe and Fail Secure, with (REX) Request to Exit Switch, Citation Lever with A Rose Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
