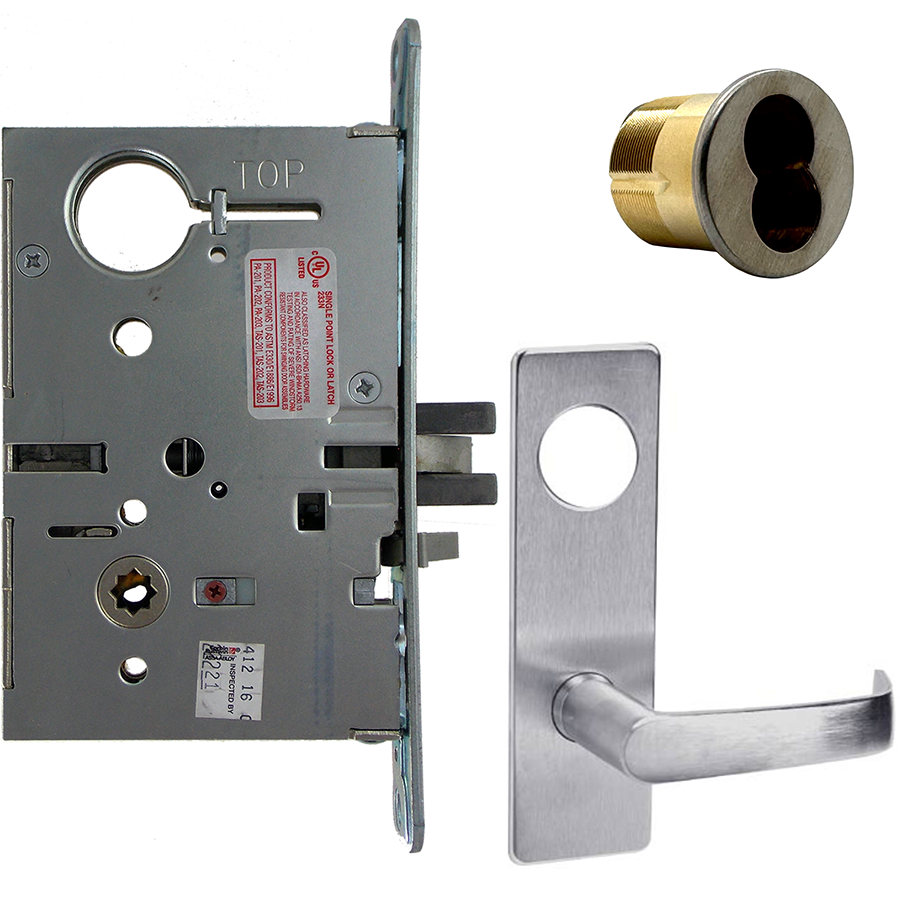

Corbin Russwin ML20906 NSM 626 SEC M92 CL6 Electrified Mortise Lock - Fail Safe/Secure, REX Switch, Newport Lever, Satin ChromeCorbin Russwin ML20906 NSM 626 SEC M92 CL6 KIT is an advanced electrified mortise lock designed for high-traffic environments, ensuring robust security without compromising on functionality. This lock features a field-reversible design, allowing for easy installation and adaptability to various door configurations. The ML2000 Series meets ANSI/BHMA Grade 1 standards, ensuring durability in demanding settings. Its fail safe and fail secure options offer flexibility in security management, while the integrated REX request to exit switch enhances ease of use. The elegant Newport lever paired with the M escutcheon trim adds a touch of sophistication, making it suitable for both commercial and residential applications. Constructed from heavy-gauge steel, this lock provides superior resistance to intrusion attempts. The 6-pin large format interchangeable core mortise housing accommodates a variety of keying systems, including patented high-security options. With a satin chrome finish, it not only looks refined but is also designed to withstand wear and tear. Additional features include a crisp lever return for reliable performance, EcoFlex® technology for energy efficiency, and a ten-year limited warranty for peace of mind. The Corbin Russwin ML20906 is the perfect choice for professionals seeking a secure, versatile, and stylish locking solution.
KIT - Electrified Mortise, Field Reversible - Fail Safe and Fail Secure, with REX Request to Exit Switch, Newport Lever with M Escutcheon Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML20906 NSM 626 SEC M92 CL6, ML20906NSM626SECM92CL6
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Cylinder Type: 6-Pin, Less Core, LFIC - Corbin
Door Application: Mortise Locks
Electrical Option: Request to Exit
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Single Cylinder
Lever Design: Newport
Material: Cast
Rose/ Escutcheon: M Escutcheon
Series: ML20900
