Corbin Russwin ML20932 NSA 626 SAF Double Electrified Mortise Lock

Corbin Russwin ML20932 NSA 626 SAF Double Electrified Mort Lock offers a robust solution for high-security environments, ensuring both efficiency and reliability. This fail-safe electrified mortise lock keeps both grips locked when energized, featuring a double cylinder override for added convenience. The ML2000 Series Grade 1 Mortise Lock incorporates a patented quick reversible latchbolt, allowing for easy installation in standard mortise preparations with minimal modification. Ideal for applications such as tenant spaces, pharmacies, and computer rooms, this lock is designed to enhance security while minimizing energy consumption through Ecoflex Technology, certified to reduce energy use by up to 96%. Configurable to either fail-safe or fail-secure operation, it runs on 12-24VDC, making it versatile for various setups. The heavy-gauge steel construction ensures durability, while the elegant satin chrome finish adds a modern touch. With a standard door thickness of 1-3/4" and a backset of 2-3/4", the lock accommodates diverse installation needs. Additional features include a 3-hour fire rating, a field-reversible handing option, and compatibility with various ML2000 Series trim designs. Choose the Corbin Russwin ML20932 for a secure, reliable locking solution tailored to meet the demands of any high-security space.

Double Electrified Mort Lock

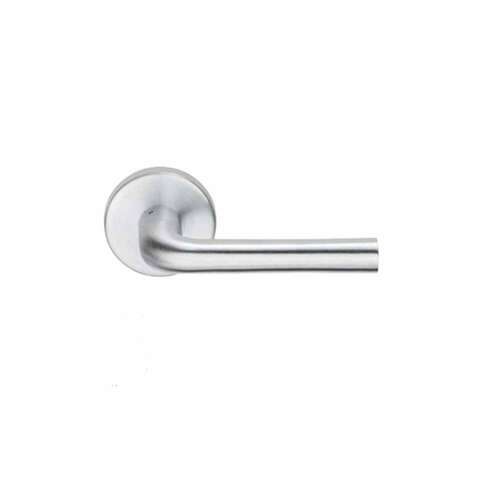

Fail Safe Electrified Mortise Lock, Both Grips Locked when Energized, Double Cylinder Override, NS Lever, A Rose, Satin Chrome

Utilizing the ML2000 Series Grade 1 Mortise Lock with the patented quick reversible latchbolt, the ML20900 Series provides actuator operated remote locking and unlocking. The self contained integral continuous duty aqctuator allows installation in standard mortise prep with slight modification. The ML20900 ECL is ideal for use where increased security is necessary at all times, such as tenant space, pharmacies, computer rooms and high security areas. THe ML20900 Series features Ecoflex Technology, reducing energy consumption up to 96% as certified by GreenCircle. It is field configurable to fail safe or fail secure and operates off 12-24VDC.

Th ML20900 Electric Mortise Lock Series combines simplicity and reliability.

Utilizing the proven ML2000 Series mortise lockset with the patented quick reversible latchbolt, the ML20900 series provides remote locking and unlocking. The electrified lock can be installed in a standard mortise prep with slight modification by door manufacturer.

• Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lockcase.
• Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes
• Backset 2-3/4" (70mm).
• Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Front Heavy gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
• Latchbolt 2-piece mechanical anti-friction insert, 5/8" (16mm) x l" (25mm) x 3/4" (19mm) throw.
• Auxiliary Latchbolt 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Hub • Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). • Lever: steel, 5/16" (8mm). (Including ) • 3/8" (10mm) stainless steel.
• Spacing C. to c. knob/lever to cylinder: 3-5/8" (92mm) C. to c. knob/lever to thumbturn: 2-7/16" (62mm).
• Strike Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8'' (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.
• Trim Available with all ML2000 Series trim designs including the Vineyard™ Collection and the Muséo® Collection
• Environmental Product Declaration (EPD) certified
