Corbin Russwin UT5257 ESE 626 RHR Storeroom Lock Unit

Corbin Russwin UT5257 ESE 626 RHR Storeroom Unit Lock offers a reliable and secure solution tailored for high-traffic environments. This storeroom function lock is designed for conventional cylinders and features a sleek satin chrome finish, making it an aesthetically pleasing addition to any door. Built with a robust one-piece investment cast frame and machined internal parts of steel, bronze, and stainless steel, the UT5257 is engineered for durability and longevity. Ideal for schools, hospitals, office buildings, and historic structures, this lock ensures quick and economical installation with its factory pre-assembled design, eliminating the need for job site assembly. The 3/4" radius latchbolt is specifically crafted to wedge tightly into the strike when tampered with, while also meeting ADA force-to-latch requirements, enhancing security and accessibility. The lock accommodates a door thickness of 1-3/4" and has a backset of 2-3/4". An auxiliary latch deadlocks the latchbolt when the door is closed, preventing manipulation. Additionally, it comes with two nickel silver keys and is UL listed for A label doors. With a one-year limited warranty, the Corbin Russwin UT5257 ESE 626 RHR Storeroom Unit Lock combines functionality and style, making it an excellent choice for your locking needs.

Storeroom Unit Lock

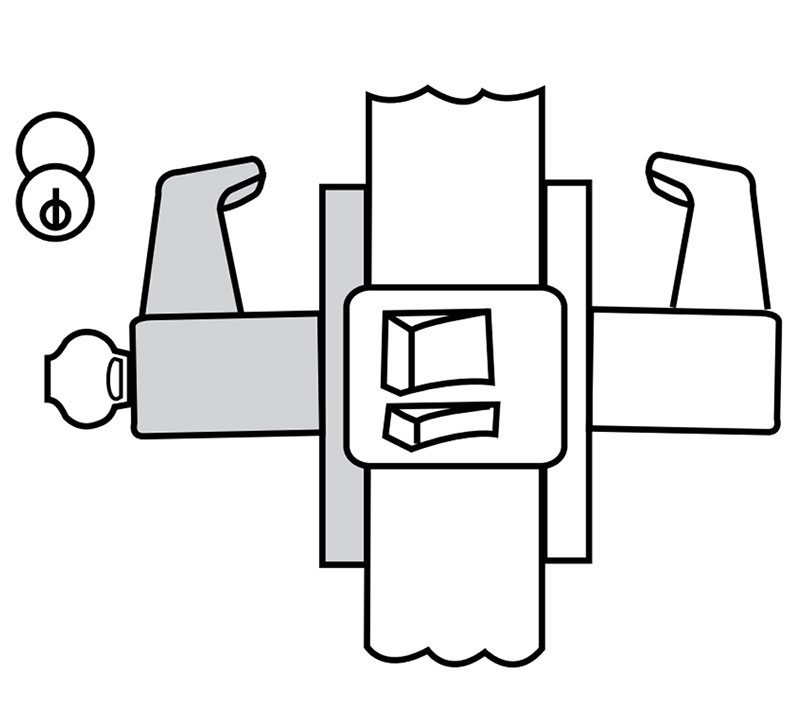

Storeroom Function, Handed, Conventional Cylinder, Satin Chrome

Applications This lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized. Typical high-traffic commercial, institutional and industrial applications include: Schools and universities Office buildings Hospitals Municipal buildings Historic buildings Advantages Factory pre-assembled for quick, economical, one-piece installation: no job site assembly required 3/4" radius latchbolt, designed to wedge more tightly into the strike when tampered with, while meeting all ADA force-to-latch requirements.

Factory pre-assembled for quick, economical, one-piece installation.

The UT5200 lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized.

• Handing Specify hand. All functions are handed.
• Door Thickness 1-3/4" (44mm) only.
• Backset 2-3/4" (70mm) only.
• Lock Chassis One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.
• Front Beveled 1/8" (3mm) in 2" (51mm).
• Latchbolt Brass, chrome plated, 3/4" (19mm) throw pivoted, swinging type.
• Auxiliary Latch Deadlocks latchbolt, preventing manipulation when door is closed.
• Strike Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes and lip lengths available;
• Cylinder Brass, 6-pin, L4 keyway, 0-bitted standard.
• Keys Two nickel silver standard.
• Federal Meets FF-H-106C.
• UL-cUL All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm) All locksets also listed for B label
• Warranty One-year limited.
