CRL 05383A Satin Anodized 83" Roton 053 Half Surface Continuous Hinge

C.R. Laurence 05383A Satin Anodized 83" Roton 053 Series Half Surface Continuous Hinge offers a robust solution for standard duty applications, supporting doors weighing up to 200 lbs. (90 kg). Designed with a straight hole pattern, this hinge features a surface mount attachment on the door and a concealed mount on the jamb, ensuring a clean and seamless installation. Constructed from durable aluminum, the hinge is available in both satin anodized and dark bronze anodized finishes, allowing for versatile aesthetic applications in various environments. Each hinge is stocked in lengths of 83" (2.1 m) and 95" (2.4 m), providing flexibility to meet your project needs. Load-bearing blocks are strategically placed every 5-1/8" (130 mm) to enhance strength and stability. Included with each hinge are installation screws, simplifying the setup process for professionals. For ongoing projects, replacement screw packs can be purchased separately, ensuring you have the necessary components on hand. The CRL Roton 053 hinge is compliant with industry standards and is ready to ship via UPS, making it a reliable choice for contractors and builders looking for quality and efficiency in their hardware solutions.

Satin Anodized 83" Roton 053 Series Half Surface Continuous Hinge

• Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
• Straight Hole Pattern
• Available in Satin Anodized and Dark Bronze Anodized Finishes

Resources

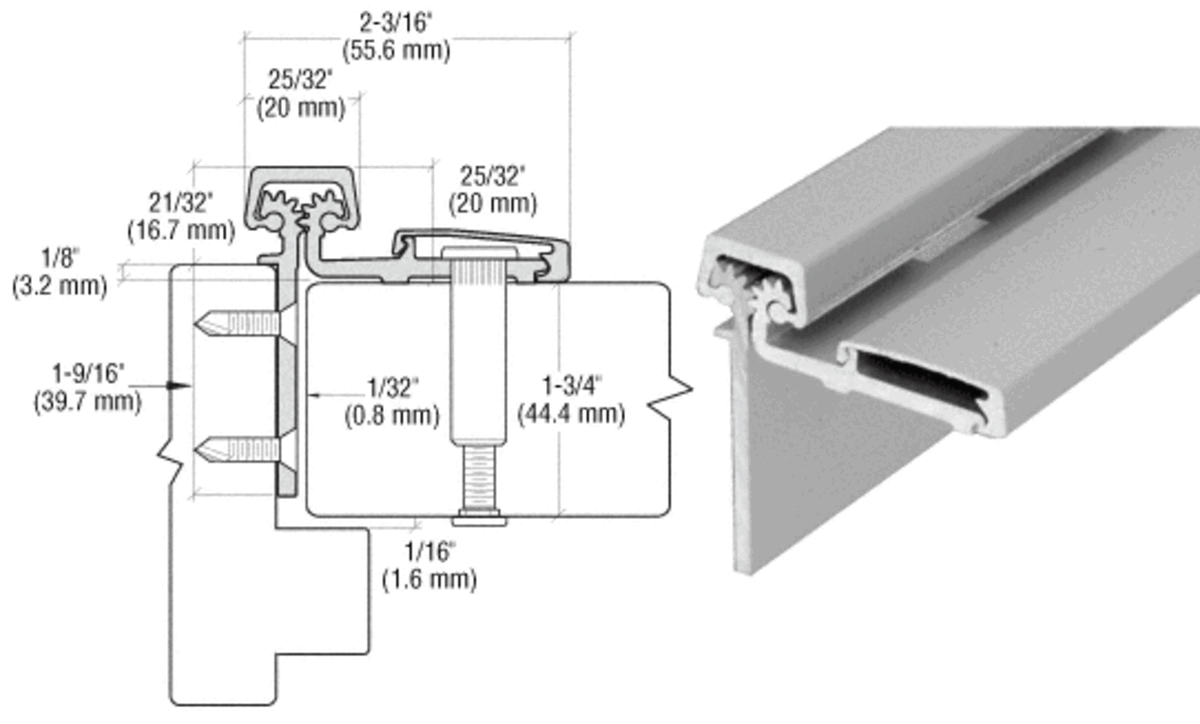

• Template 780-053sd083 (05383)4.pdf
