CRL 061210 Satin Chrome Anchor SetC.R. Laurence 061210 Satin Chrome Anchor Set offers a reliable and stylish solution for your architectural needs. Specifically designed for use with CRL 6 mm rods, this anchor set includes both top and bottom fittings, allowing for seamless integration into your projects. The satin chrome finish not only enhances aesthetic appeal but also provides durability and resistance to wear over time. Installation is straightforward, utilizing 3/16" (5 mm) diameter holes for easy attachment of your chosen screws or fasteners, which are not included with the set. It is important to note that all threads for rod system components feature a reverse thread, ensuring secure connections. The installation process involves a series of clear steps, including securing the top anchor onto a brass bushing and adjusting the rod lengths as necessary. Crafted from high-quality brass, the 061210 Anchor Set promises longevity and reliability for both commercial and residential applications. Whether you are enhancing a glass railing system or creating a striking interior display, this anchor set is an essential component. With no shipping limitations, you can easily incorporate the C.R. Laurence 061210 Satin Chrome Anchor Set into your next design project.
Satin Chrome Anchor Set
- Used with CRL 6 mm Rods
- 062100, 062150, 062050

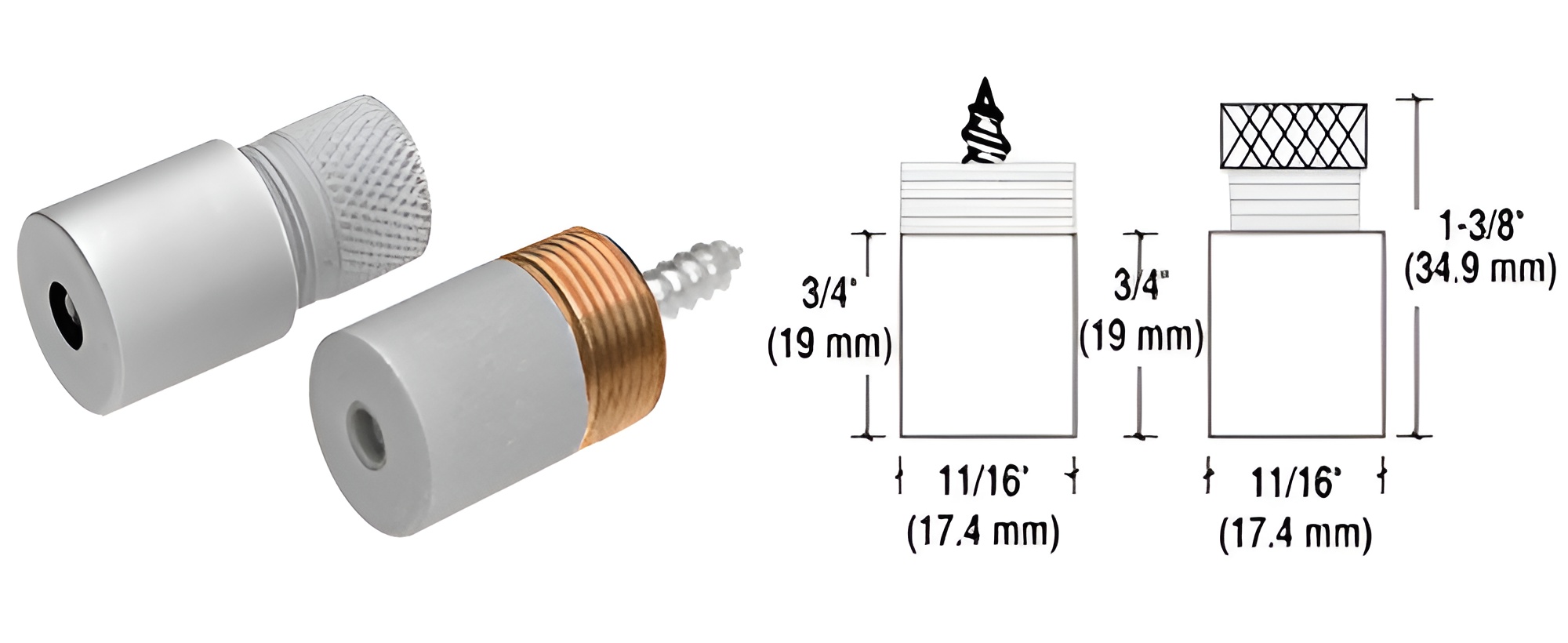

CRL's Rod Anchor Set consists of top and bottom fittings that attach to the Rod ends. The satin chrome anchor sets do not come with screws or fasteners to attach the anchors to either the ceiling or floor. The top and bottom fittings have 3/16" (5 mm) diameter holes to accommodate your choice of screws or fasteners.
IMPORTANT: All threads for Rod System Components are reverse thread. Installation screws by others.
INSTALLATION:
1) Plum and Install threaded Brass Bushing for Top Anchor and Threaded Cap (with non-threaded Rod hole) for Bottom Anchor.
2) Secure Top Rod Anchor onto threaded Brass bushing.
3) Install Rods 062100, 062150, 062050 tightly onto top anchor to obtain required length. Measure, mark and cut the bottom of the Rod right above the bottom anchor without the knurl fitting in place.
4) Once desired Rod Lengths are obtained, remove Rods and insert all required Supports, Bottom Knurl Anchor Cap, Spring then Collar which will be used to obtain the bottom spring tensioning.
5) Re-install all Rods with all required Supports, Bottom Knurl Anchor Cap, Spring and Collar.
6) Slide Collar towards the bottom of the Rod leaving about 1/8" from bottom end and tighten the collar set screw.
7) Screw the Bottom Anchor Assembly together.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Chrome
Material: Brass
Shipping Limitations: None
