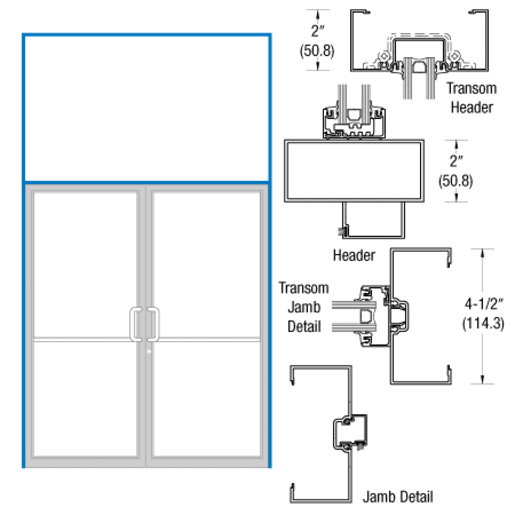

CRL 0A92122720105 U.S. Aluminum Dark Bronze/Black Anodized Transom Double Door Frame 2" x 4-1/2"

CRL 0A92122720105 - U.S. Aluminum Dark Bronze/Black Anodized Class 1 Transom Double Door Frame offers a robust and stylish solution for your architectural needs. Designed for a door opening of 72" x 84" (1.83 x 2.13 m), this frame features an overall size of 76" x 126" (1.93 x 3.20 m), making it ideal for high-traffic areas that require both durability and aesthetic appeal. Prepped for an OP400 with an offset overhead concealed 105º closer, this frame ensures smooth operation while enhancing security. The frame is equipped with a strike for a DH184 3-point lock, providing added safety and peace of mind. Included components such as a threshold, transom sash, and gasket for the transom enhance installation efficiency. Constructed using premium materials, including IS466/1427/1M425/DS037 open back jambs and 1450/I425/1M425 at the header, this frame combines strength with elegance. The black bronze anodized Class 1 finish not only offers a sophisticated look but also ensures longevity against the elements. This CRL transom double door frame is the perfect choice for professionals seeking a dependable, stylish, and versatile frame solution that stands the test of time.

-U.S. Aluminum Dark Bronze/Black Anodized Class 1 Transom Double Door Frame 2" x 4-1/2" Prepped for Offset Pivot Overhead Concealed 105 Closer

• 76" x 126" (1.93 x 3.20 m) Overall Frame Size
• 72" x 84" (1.83 x 2.13 m) Door Opening
• Prepped for OP400 with Offset Overhead Concealed 105º Closer (Pivots, Closers Not Included)
• Prepped with Strike for DH184 3-Point Lock
• Includes Threshold, Transom Sash, and Gasket for Transom
