Images may not represent actual product and finish

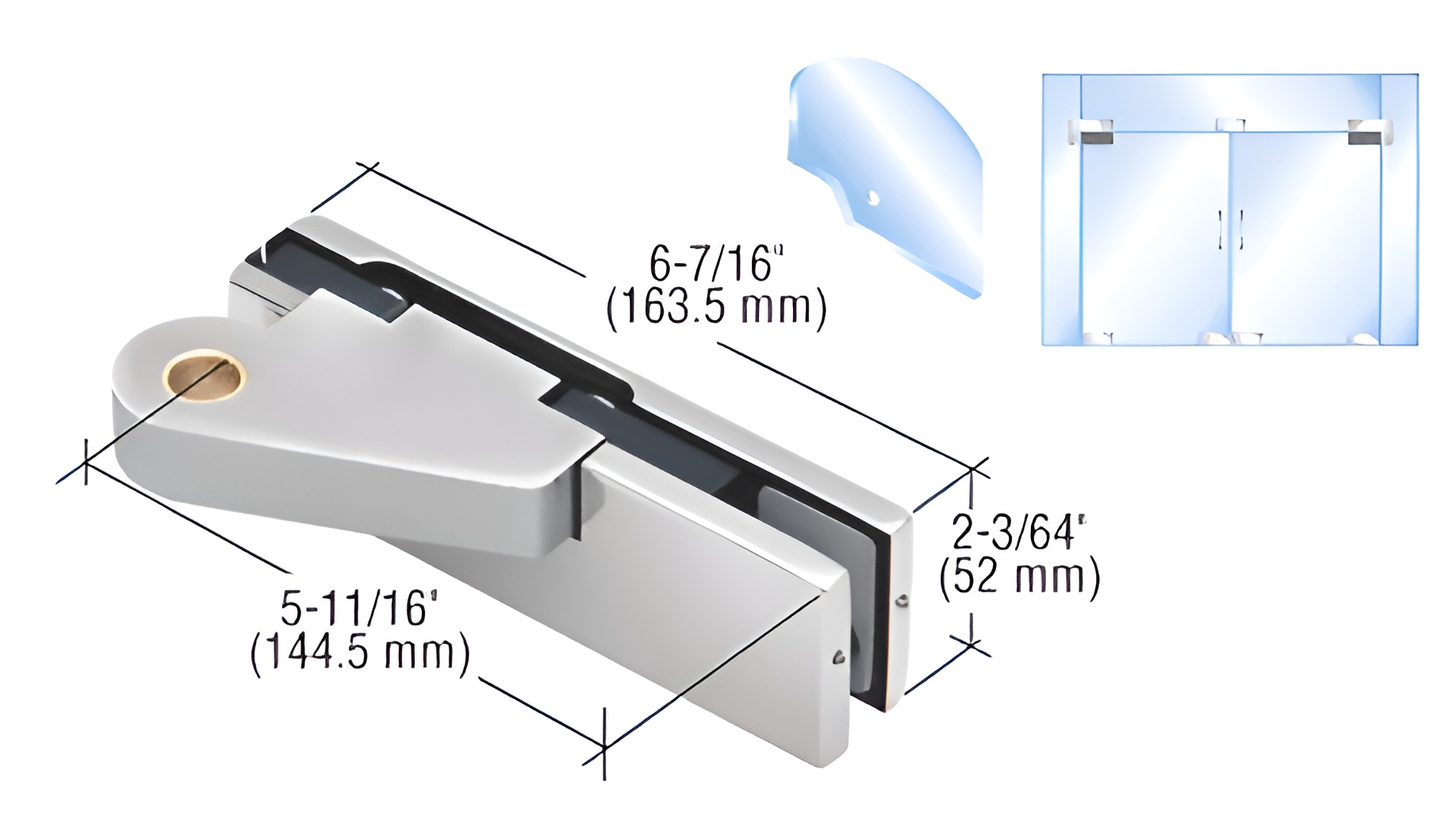

CRL 0PF20RPS Polished Stainless Right Offset Top Door Patch Fitting

Your Price: $117.85

Retail Price:$141.08

Your Savings:$23.23(16%)

The CRL Polished Stainless Right Offset Top Door Patch Fitting enables 180º door swing for 3/8" or 1/2" glass.

Part Number : CRL_0PF20RPS

Availability: 2 In Stock

Quantity

Description

CRL 0PF20RPS Polished Stainless Right Offset Top Door Patch Fitting

C.R. Laurence 0PF20RPS Polished Stainless Right Offset Top Door Patch Fitting is expertly crafted for seamless integration with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass. This versatile fitting accommodates a full 180º door swing, making it ideal for various architectural applications. Engineered for both right and left-handed configurations, it ensures flexibility in design while enhancing functionality. This patch fitting is designed to work flawlessly with CRL’s 3/4" (19 mm) offset arm bottom door rails without the need for any alterations, allowing for a streamlined installation process. The high-density cast body guarantees durability and strength, while the polished stainless steel finish not only provides an elegant aesthetic but also resists corrosion. Included with the fitting are cover plates in your chosen finish, a gasket tailored for the specified glass thickness, and a comprehensive template and instructions for hassle-free installation. To maximize compatibility, it is compatible with additional components such as the 0PF40 transom patch fittings and various top pivots. For maintenance, periodic care is recommended to preserve the factory finish, ensuring long-lasting beauty and functionality in any setting. Choose the C.R. Laurence 0PF20RPS for a perfect blend of style and performance in your next project.

Polished Stainless Right Offset Top Door Patch Fitting

For 3/8" or 1/2" (10 or 12 mm) Glass
Allows for 180º Door Swing
Left and Right Handed
Also Works with CRL 3/4" (19 mm) Offset Arm Bottom Door Rails with No Alterations
Use Monolithic Tempered Glass

The CRL Top of Door Offset Patch Fitting is specifically designed to work with offset arm bottom door rails, with no alterations required. It will also work with other offset patch fittings. Allowing for a full 180º door swing, these fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel.

INCLUDES:
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions

SPECIFICATIONS:
For Use With:
- 0PF40 Transom Patch Fittings
- 1NT401 Surface Mounted Top Pivot
- 1NT405 Threaded Top Pivot

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH: Template and Instructions

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Handing: Right Hand

Series: Offset

Shipping Limitations: None

Type: Top
