CRL 0PF40RPS Polished Stainless Right Offset Transom Patch Fitting

C.R. Laurence 0PF40RPS Polished Stainless Right Offset Sidelite Mounted Transom Patch Fitting offers an innovative solution for seamless door operation in architectural applications. Engineered for use with 3/8" or 1/2" (10 or 12 mm) glass, this patch fitting enables a full 180-degree door swing, enhancing accessibility and functionality. Designed to integrate effortlessly with CRL’s 3/4" (19 mm) offset arm bottom door rails, the fitting requires no modifications, ensuring straightforward installation and versatility. Available in both left and right-handed configurations, it accommodates diverse design requirements while providing an elegant polished stainless steel finish that complements modern aesthetics. The package includes a high-density cast body, cover plates in your chosen finish, and a gasket tailored for the specified glass thickness, along with a comprehensive template and instructions for hassle-free installation. For optimal performance, the fitting requires three 3/4" (19 mm) diameter holes and a corner notch during glass fabrication. While resilient against corrosion, regular maintenance is recommended to preserve its factory finish. The C.R. Laurence 0PF40RPS is a reliable choice for professionals seeking quality and precision in their architectural projects.

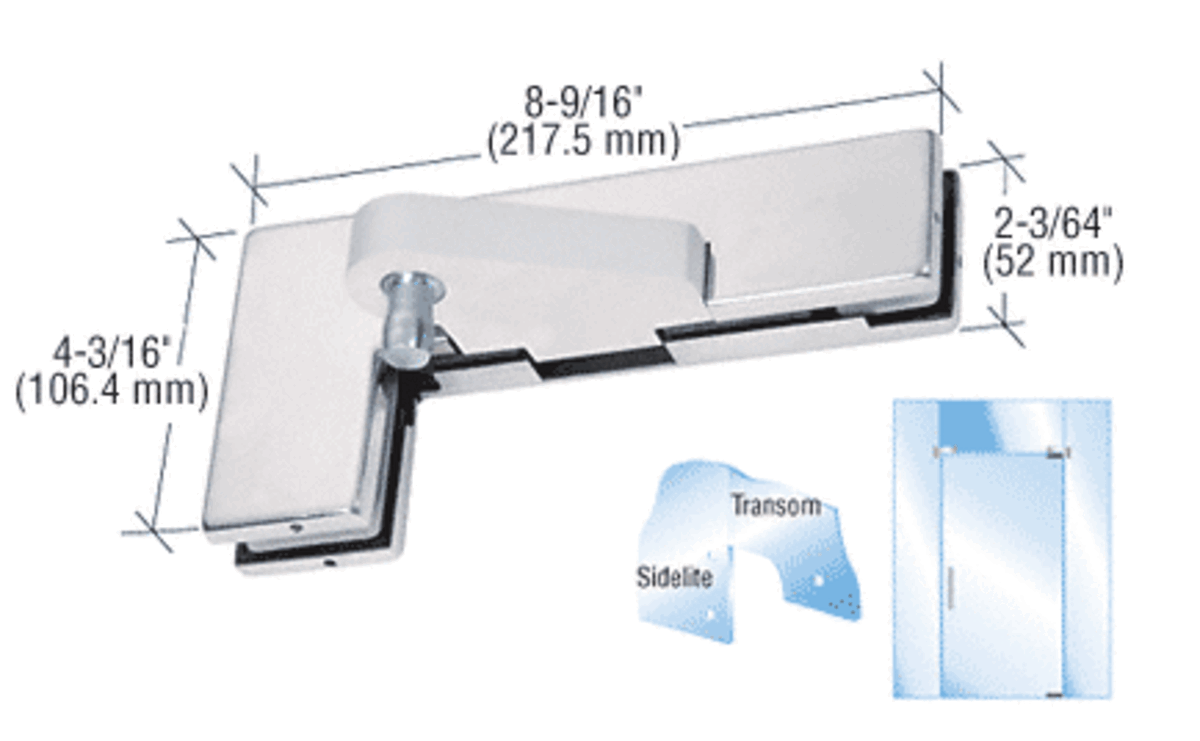

Polished Stainless Right Offset Sidelite Mounted Transom Patch Fitting

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Allows for 180 Degree Door Swing
• Left and Right Handed
• Also Works with CRL 3/4" (19 mm) Offset Arm Bottom Door Rails with No Alterations

Stainless Steel Advisory:

Resources

• 0PF40 Template
• CRL Stainless Steel Disclaimer
• Glass Fabrication Details OPF40 AVD3859B1.pdf
