CRL 0V81222R36 U.S. Aluminum Dark Bronze/Black Anodized 40" x 126" Series 451 Pivot Transom Frame

CRL 0V81222R36 - U.S. Aluminum Dark Bronze/Black Anodized Class 1 40" x 126" Series 451 Open Back Offset Pivot Transom Frame Complete is expertly designed to provide a robust and stylish solution for your commercial or residential entryway needs. This complete frame is tailored to accommodate a base 36" x 84" Offset Pivot Rim Panic Door, making it an ideal choice for high-traffic areas requiring reliable and secure access. Measuring 40" x 126" overall, the frame is constructed from durable aluminum with a striking Dark Bronze/Black anodized finish, ensuring both longevity and aesthetic appeal. The frame features open back jambs measuring 2" x 4-1/2", allowing for efficient installation and a clean look. Included with the frame is a sturdy aluminum threshold, along with all necessary extrusions, weatherstrip, standard hardware, and hardware preparations, streamlining the installation process. As a complete package, it provides everything needed for assembly, except for the customer-supplied fasteners to secure the frame to the opening. Please note that no modifications are offered on standard frames, ensuring consistency in quality and design. This CRL transom frame combines functionality with modern design, making it a valuable addition to any architectural project.

-U.S. Aluminum Dark Bronze/Black Anodized Class 1 40" x 126" Series 451 Open Back Offset Pivot Transom Frame Complete (1FT)

• 40" x 126" (1.0 x 3.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included

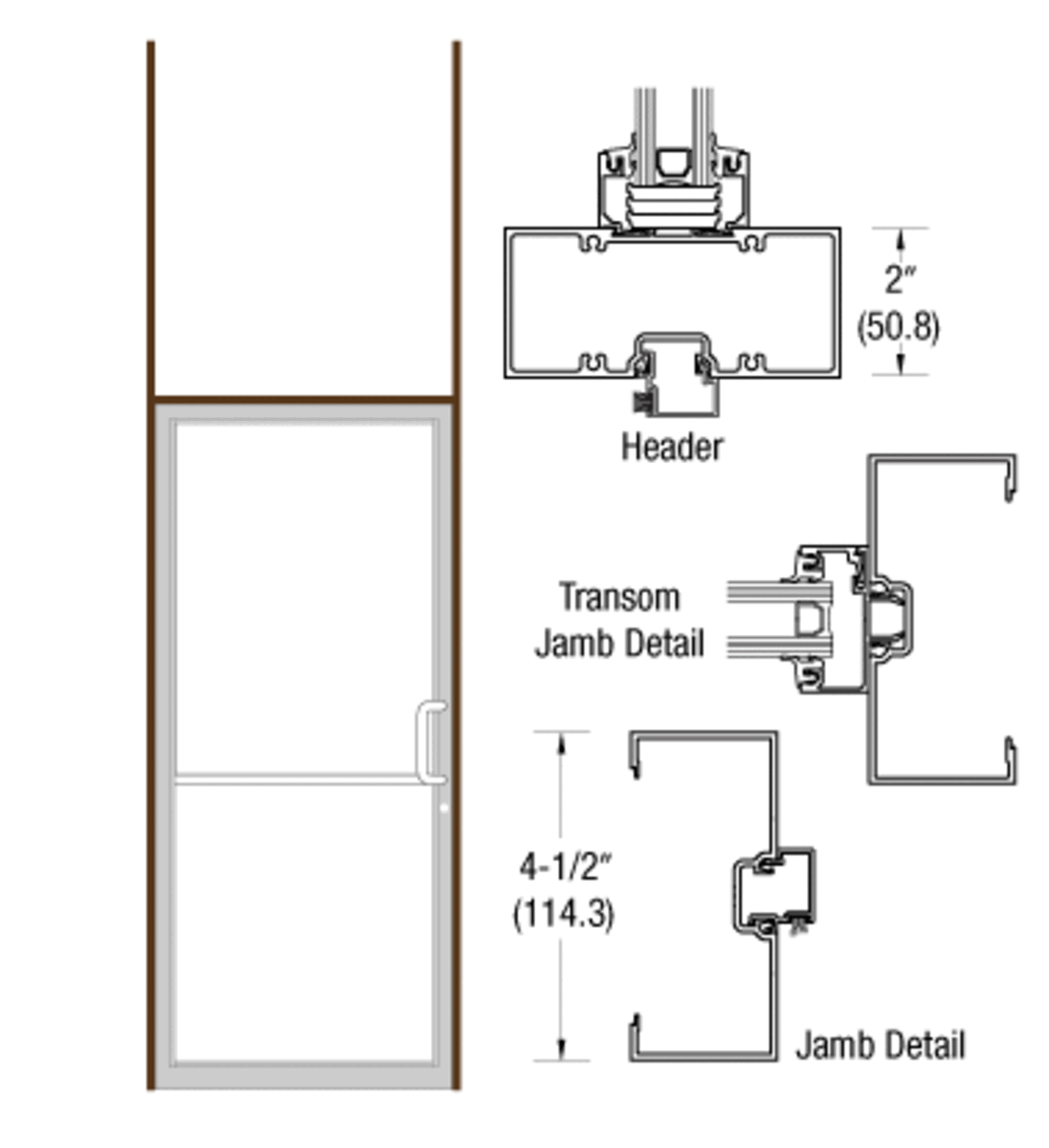

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Transom Frame with Open Back Jambs
