CRL 0Z4175236 U.S. Aluminum Bone White KYNAR Paint 39.5" x 85.75" Series 450 Open Back Frame

CRL 0Z4175236 - U.S. Aluminum Bone White KYNAR Paint 39-1/2" x 85-3/4" Series 450 Open Back Center Hung Up and Over Frame Complete is an expertly crafted solution designed for durability and functionality. This complete frame accommodates a base door opening of 36" x 84", ideal for Center Hung Concealed Vertical Rod Panic Doors equipped with an overhead concealed closer. Constructed with precision, the frame features 1-3/4" x 4-1/2" Open Back Jambs made from high-quality aluminum, ensuring structural integrity and a sleek aesthetic. The exterior dimensions of the frame are 39-1/2" x 85-3/4", providing ample space while maintaining an elegant profile. Included in the package is an aluminum threshold, along with all necessary extrusions, weatherstrip, and standard hardware for easy installation. Assembly fasteners and hardware fabrication come standard, although customers are responsible for supplying the fasteners to attach the frame securely to the opening. With its Bone White Kynar finish, this frame not only meets functional needs but also enhances the visual appeal of any space. Please note that no modifications are available on standard frames, ensuring a straightforward installation process without complications.

-U.S. Aluminum Bone White KYNAR Paint 39-1/2" x 85-3/4" Series 450 Open Back Center Hung Up and Over Frame Complete (1F)

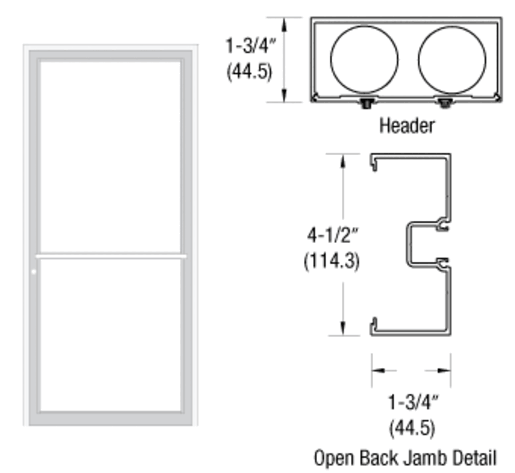

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Center Hung UP and Over Frame with Open Back Jambs
• 39-1/2" x 85-3/4" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included
