CRL 0Z6175236 U.S. Aluminum Bone White KYNAR Paint 39.5" x 126" Series 450 Transom Frame

CRL 0Z6175236 - U.S. Aluminum Bone White KYNAR Paint 39-1/2" x 126" Series 450 Open Back Center Hung Transom Frame Complete offers a robust solution for your transom frame needs. Designed to accommodate a 36" x 84" Center Hung Concealed Vertical Rod Panic Door with an overhead concealed closer, this complete frame features open back jambs for seamless integration. Constructed from durable aluminum, the frame measures 39-1/2" x 126" (1.0 x 3.2 m) with a base frame size that ensures reliability and longevity. The included aluminum threshold enhances the overall structure while providing a polished finish. All necessary extrusions, weatherstrip, standard hardware, and hardware preparations are part of the package, ensuring a straightforward installation process. Assembly fasteners and standard hardware are included, allowing you to focus on the installation without the hassle of sourcing additional components. However, please note that customer-supplied fasteners are required to attach the frame to the opening, and modifications on standard frames are not offered. The elegant Bone White KYNAR finish not only adds a contemporary touch but also ensures resistance to fading and wear. Experience quality and performance with CRL's transom frame, engineered for both aesthetics and functionality.

-U.S. Aluminum Bone White KYNAR Paint 39-1/2" x 126" Series 450 Open Back Center Hung Transom Frame Complete (1FT)

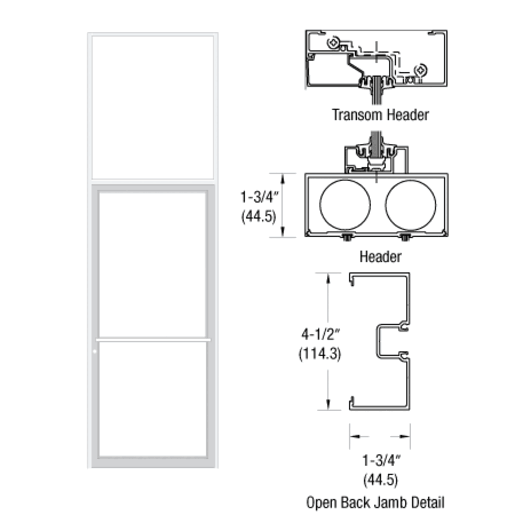

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Center Hung Transom Frame with Open Back Jambs
• 39-1/2" x 126" (1.0 x 3.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included
