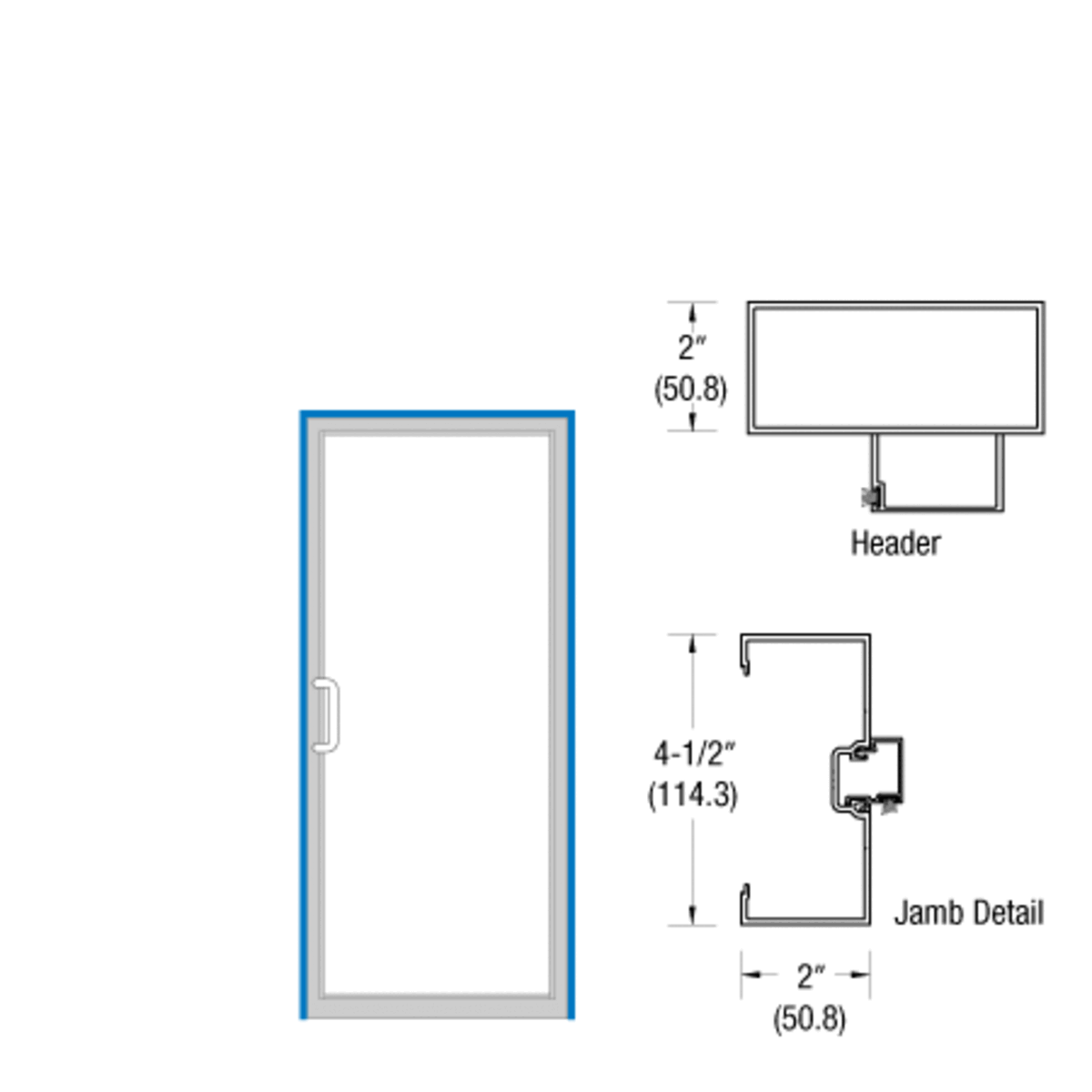

CRL 0Z71122L036105 U.S. Aluminum Dark Bronze/Black Anodized Class 1 Up and Over Door Frame

CRL 0Z71122L036105 U.S. Aluminum Dark Bronze/Black Anodized Class 1 Up and Over Door Frame provides a robust and stylish solution for single door applications. Measuring 40" x 86" overall, this frame is designed with open back jambs and is prepped for a concealed overhead closer, allowing for a clean and unobtrusive installation. The setup accommodates a 36" x 84" door opening, ensuring ample access while maintaining a sleek aesthetic. Engineered for functionality, this frame includes prepped areas for DH385 concealed panic strikes, enhancing security without compromising design-note that strikes are not included. The frame is also equipped with a threshold and weatherstrip, ensuring durability and protection against the elements. Constructed from high-quality aluminum and finished in a striking black bronze anodized Class 1, this door frame combines both strength and elegance, making it suitable for various architectural styles. Additionally, the frame is compatible with OP400 offset pivots and provides provisions for a concealed vertical rod panic system, making it a versatile choice for any building professional or discerning homeowner. Elevate your entryways with the CRL Up and Over Door Frame-a perfect blend of functionality and aesthetic appeal.

-U.S. Aluminum Dark Bronze/Black Anodized Class 1 Up and Over Door Frame for Single Door with Offset Pivots, Panics and Concealed Closers

• 40" x 86" (1.02 x 2.18 m) Over All Frame Size
• Open Back Jambs, Prepped for Concealed Overhead 105 Degree Closer
• Prepped for DH385 Concealed Panic Strikes (Strikes Not Included)
• Includes Threshold and Weatherstrip
• 36 x 84" (914 mm x 2.13 m) Door Opening
