CRL 0Z717220036 U.S. Aluminum Bronze Anodized 40" x 86" Series 451 Open Back Frame Complete

CRL 0Z717220036 - U.S. Aluminum Bronze Anodized 40" x 86" Series 451 Open Back Center Hung Up and Over Frame Complete (1F) offers a robust solution for your door frame needs. Designed with a 2" x 4-1/2" (50.8 x 114.3 mm) profile, this complete frame is engineered to support a base door opening of 36" x 84" (.9 x 2.1 m), making it ideal for high-traffic areas requiring durability and functionality. The aluminum threshold included with the frame enhances its structural integrity while ensuring a seamless transition between spaces. This product is specifically built to accommodate a 36" x 84" Center Hung Concealed Vertical Rod Panic Door for an overhead concealed closer, utilizing 1S451 Open Back Jambs and a 1C457/P427 Header. All necessary extrusions, weatherstrip, and standard hardware are included, simplifying installation. Note that while assembly fasteners and hardware fabrication are provided, customers will need to supply the fasteners for attaching the frame to the opening. With a sleek black bronze anodized finish, this frame not only meets functional requirements but also adds a sophisticated touch to any building project. Please be aware of compliance warnings regarding reproductive harm.

-U.S. Aluminum Bronze Anodized 40" x 86" Series 451 Open Back Center Hung Up and Over Frame Complete (1F)

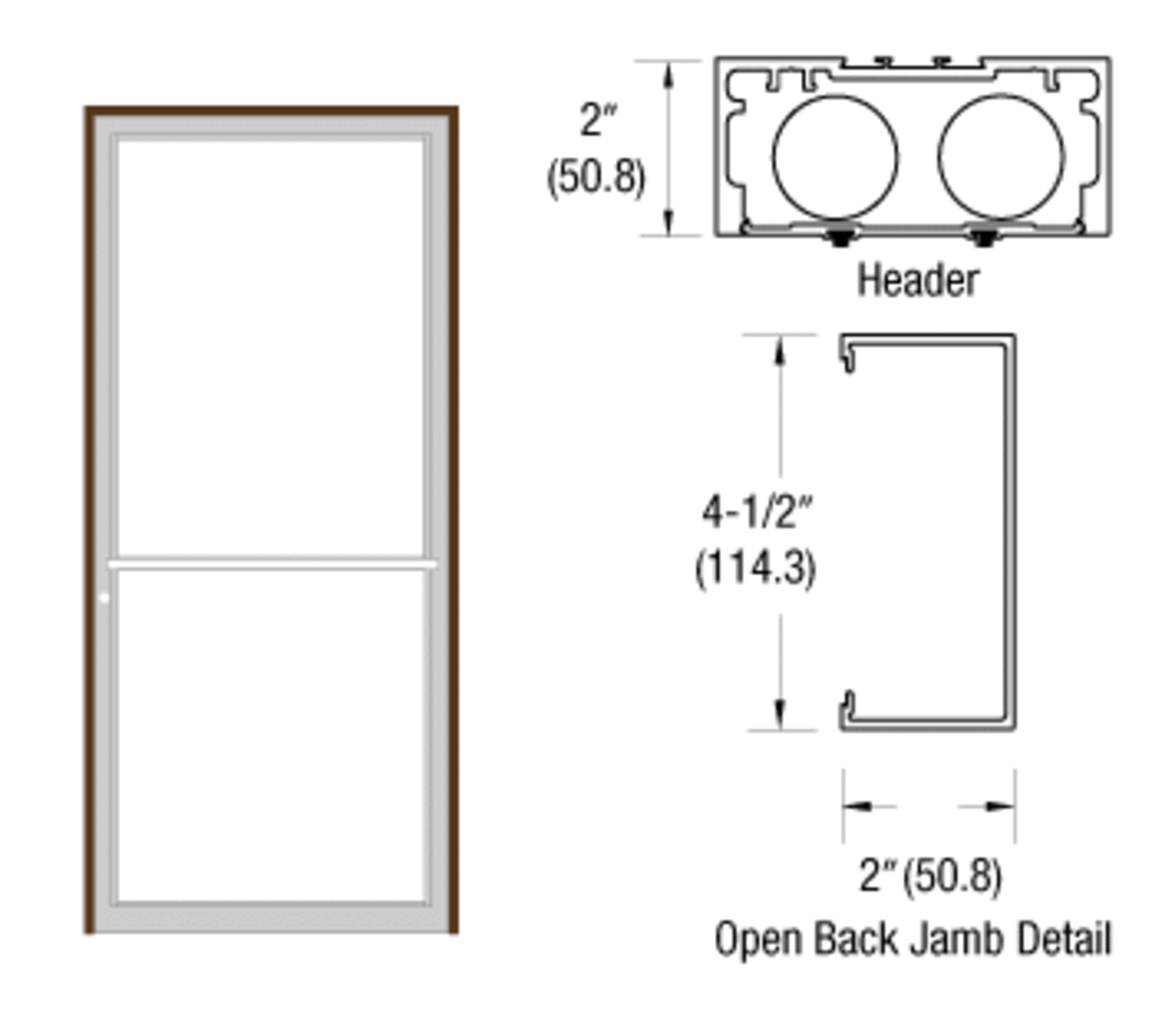

• 2" x 4-1/2" (50.8 x 114.3 mm) Center Hung Up and Over Frame with Open Back Jambs
• 40" x 86" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included
