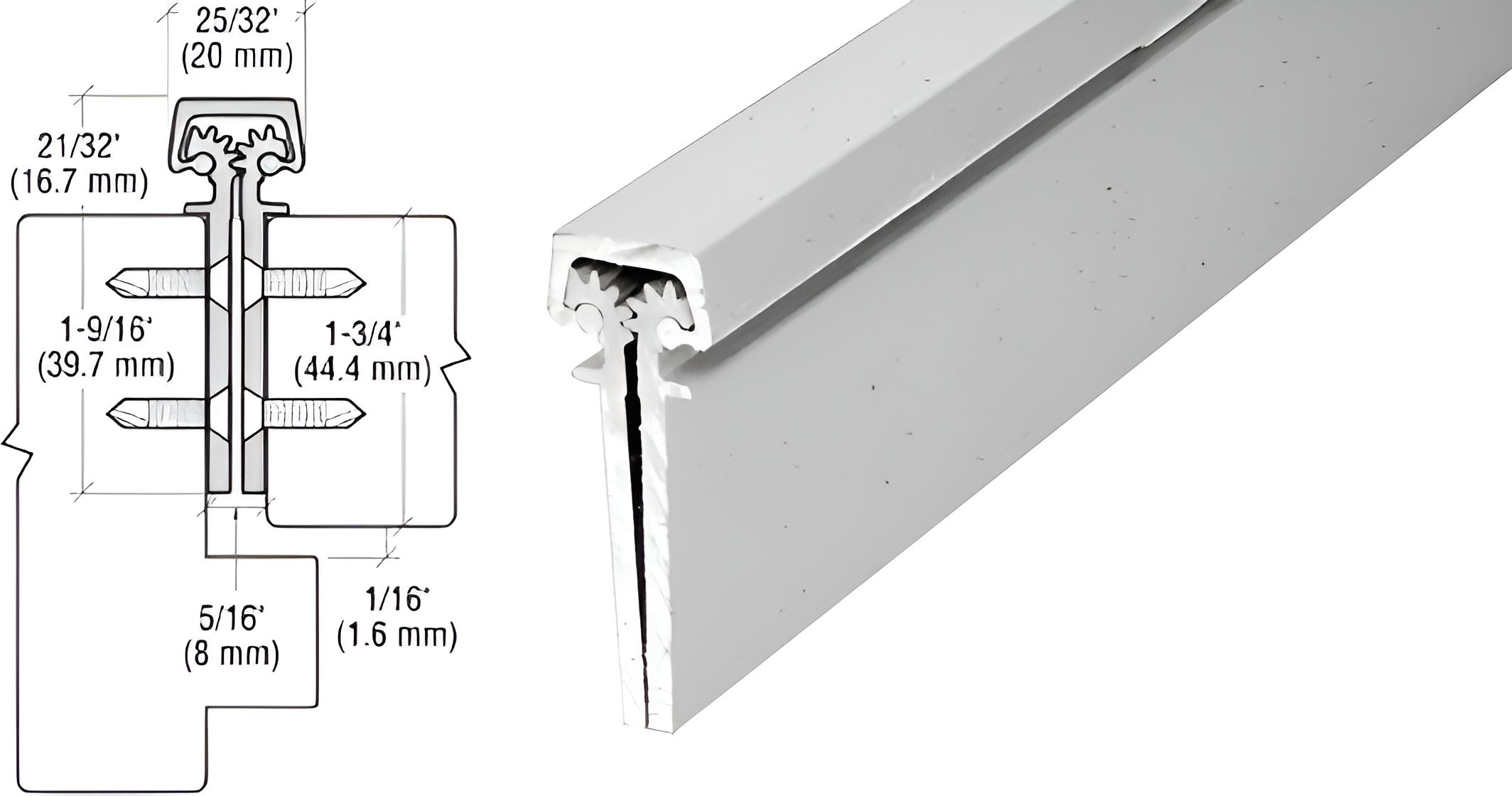

CRL 112HD83A Satin Anodized Roton 112HD Heavy-Duty Concealed Leaf Continuous Hinge

C.R. Laurence 112HD83A Satin Anodized Roton 112HD Heavy-Duty Series Concealed Leaf Continuous Hinge is engineered for exceptional strength and durability, making it ideal for doors weighing up to 600 lbs. (272 kg). This heavy-duty hinge features a straight hole pattern and is constructed from high-quality aluminum, ensuring long-lasting performance in high-traffic areas. Designed specifically for 1-3/8" (35 mm) doors, the hinge incorporates load-bearing blocks strategically positioned every 2-9/16" (65 mm) on the heavy-duty model, providing superior support and stability. Available in elegant satin anodized and dark bronze anodized finishes, it seamlessly complements a variety of architectural styles. Each hinge measures 83" (2.1 m) in length and includes a pack of installation screws for your convenience, with additional packs of replacement screws available separately. The Roton 112HD series hinges not only enhance the aesthetic appeal of your doors but also ensure smooth and reliable operation. With no shipping limitations, these hinges can be easily shipped via UPS, making them a practical choice for both building professionals and knowledgeable homeowners. Trust C.R. Laurence's commitment to quality and innovation with the 112HD83A hinge for your next project.

Satin Anodized Roton 112HD Heavy-Duty Series Concealed Leaf Continuous Hinge

• Heavy Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
• Straight Hole Pattern
• Available in Satin Anodized and Dark Bronze Anodized Finishes
• Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)

Resources

• Template 780-112HD083 (112HD83)5.pdf
