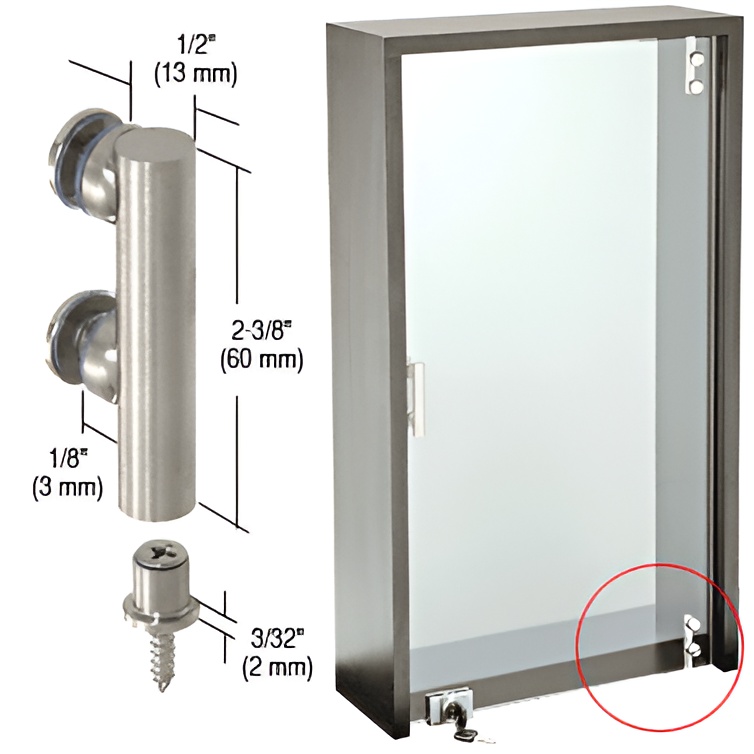

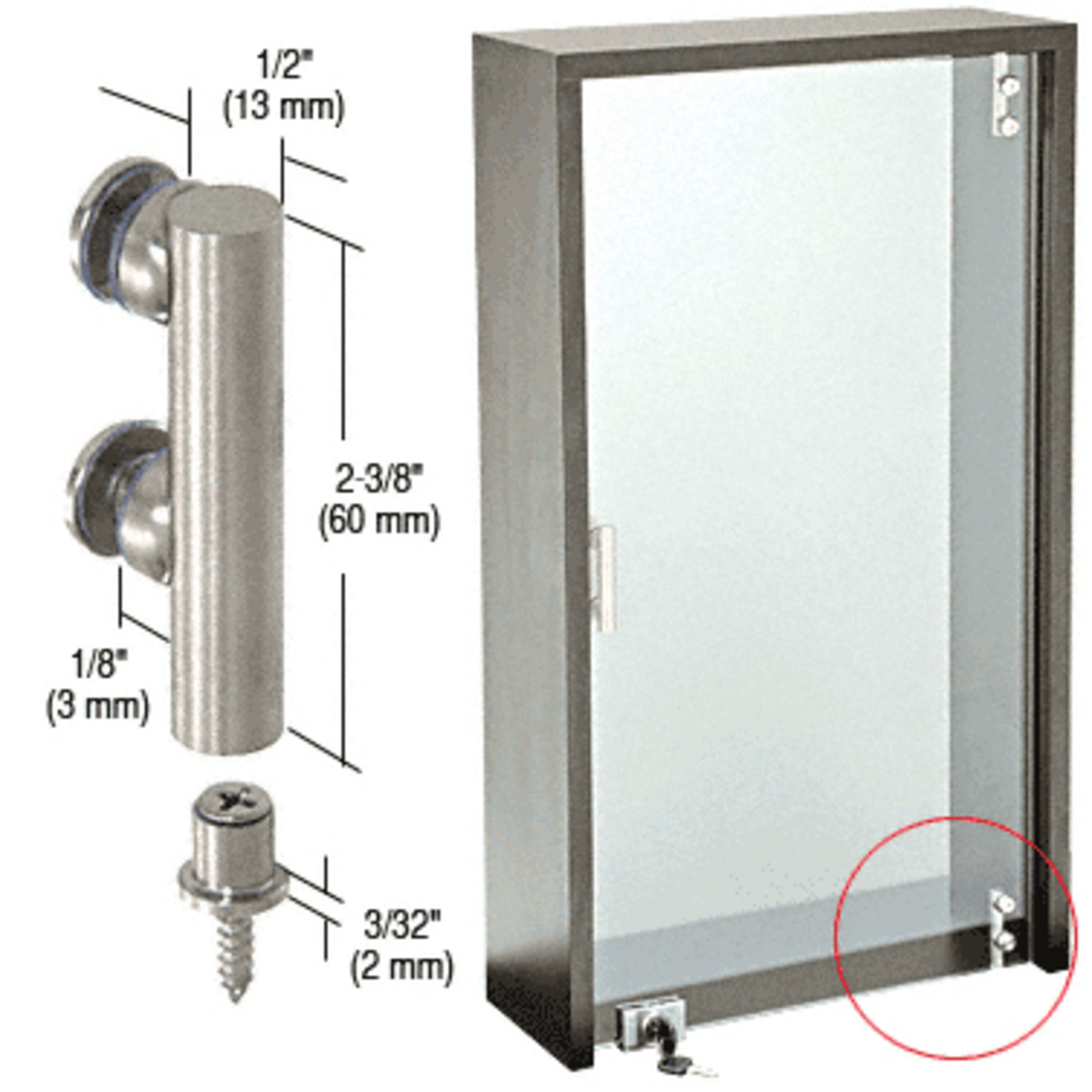

C.R. Laurence 12PVH Brushed Stainless Cabinet Door Pivot Hinges deliver a striking blend of contemporary style and functional design, perfect for modern cabinetry. Engineered for glass thicknesses ranging from 3/16" to 1/4" (4.7 to 6.3 mm), these hinges provide a sturdy and stylish solution for free-swinging cabinet doors. Each hinge requires two 3/8" (10 mm) mounting holes, ensuring a secure installation into wood at both the top and bottom of the cabinet. With a maximum door width of 15" (381 mm) and a weight capacity of 22 lbs. (10 kg), these hinges are versatile enough for various cabinet applications. It's important to allow for a 1/8" (3 mm) clearance between the glass door and the cabinet to ensure smooth operation. The brushed stainless steel finish not only enhances aesthetic appeal but also provides resistance to corrosion, though periodic maintenance is recommended to preserve its factory look. Included in each pack are vinyl macaroni on screws and a drilling template to facilitate installation. C.R. Laurence ensures that these pivot hinges not only meet functional needs but also align seamlessly with the design of the cabinet door pivot pull (Cat. No. 12PVP), making them an ideal choice for any professional or homeowner looking to elevate their space.
Brushed Stainless Cabinet Door Pivot Hinges
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 1/8 in. (3.2 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/16 in. To 1/4 in. (5 mm To 6 mm)
Includes: Vinyl Macaroni On Screws And Drilling Template. Two per pack
Length: 2-3/8 in. (60.3 mm)
Material: Stainless Steel
Maximum Door Width: 15 in. (381 mm)
Mounting Hole Diameter: 3/8 in. (9.5 mm)
Shipping Limitations: None
Weight Capacity: 22 lbs. (10 kg)
