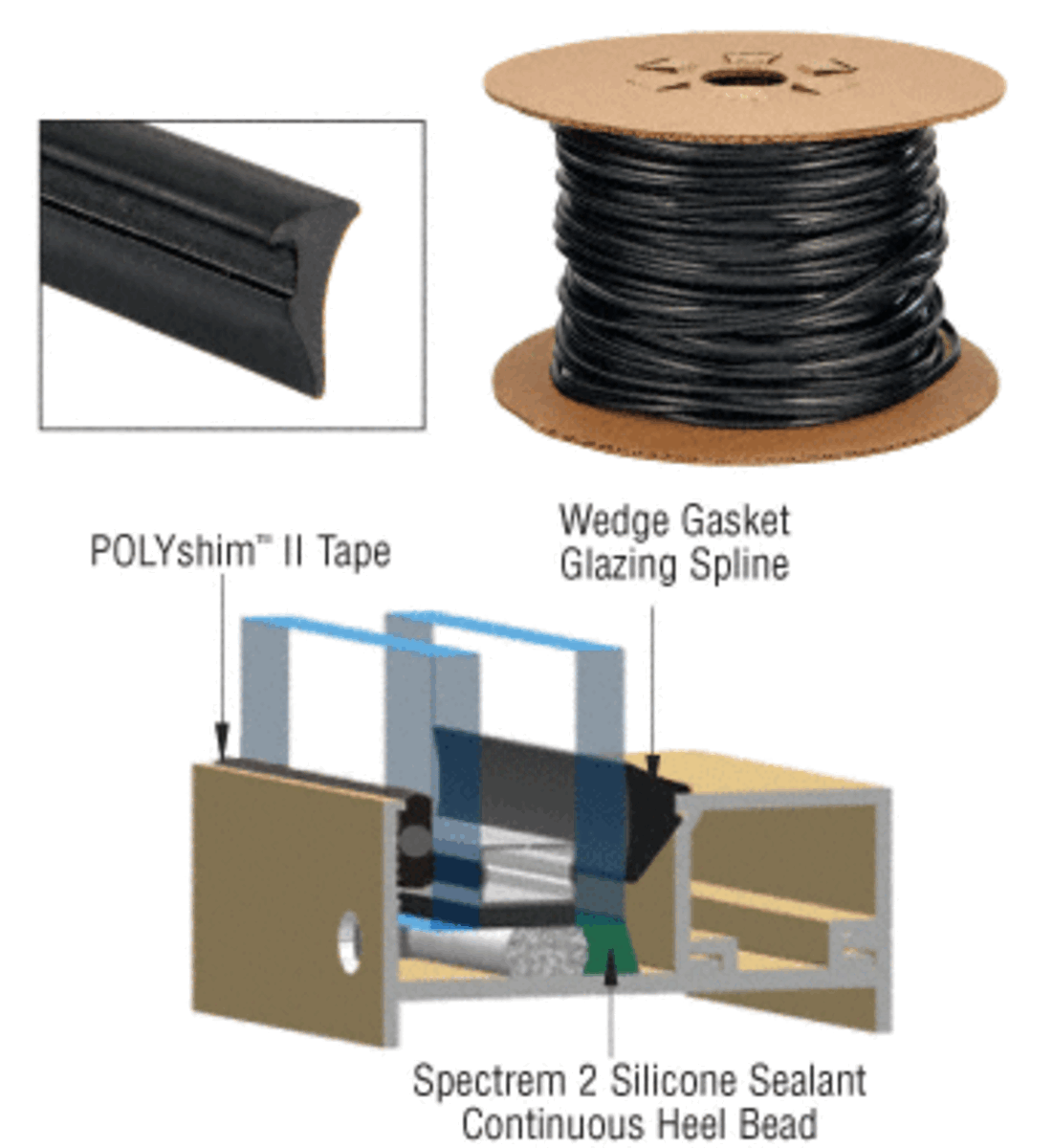

CRL 1768011 Tremco .120" Wedge Gasket Glazing Spline is expertly crafted from 70 durometer extruded EPDM, ensuring durability and reliable performance in your glazing projects. This wedge profile is specifically designed for use in compression glazing systems when paired with Tremco® POLYshim II Glazing Tape, making it an ideal solution for professional glazing applications. Measuring .120 inches (3 mm) in face clearance, this gasket provides a secure seal for glass installations, enhancing both functionality and aesthetic appeal. Each roll contains 500 feet (152.4 m) of this high-quality spline, allowing for extensive coverage in various projects. To ensure proper engagement, a metal nib measuring .090 inches x .062 inches (2.3 mm x 1.6 mm) is required for optimal performance. For best results, Tremco® recommends creating a mock-up to verify compatibility between the glazing spline and the metal nib. Please note that this product ships via common carrier only, without UPS options. The sleek black finish adds a professional touch to any installation. Ensure compliance with local safety regulations, as this product carries a warning for reproductive harm. Upgrade your glazing systems with the reliability of C.R. Laurence’s Tremco Wedge Gasket Glazing Spline.

Tremco .120" Wedge Gasket Glazing Spline

• Used in Compression Glazing Systems with Tremco® POLYshim II Glazing Tape
• 70 Durometer Extruded EPDM

Resources

• Safety Data Sheets 778.pdf
• Specifications g spline.pdf
