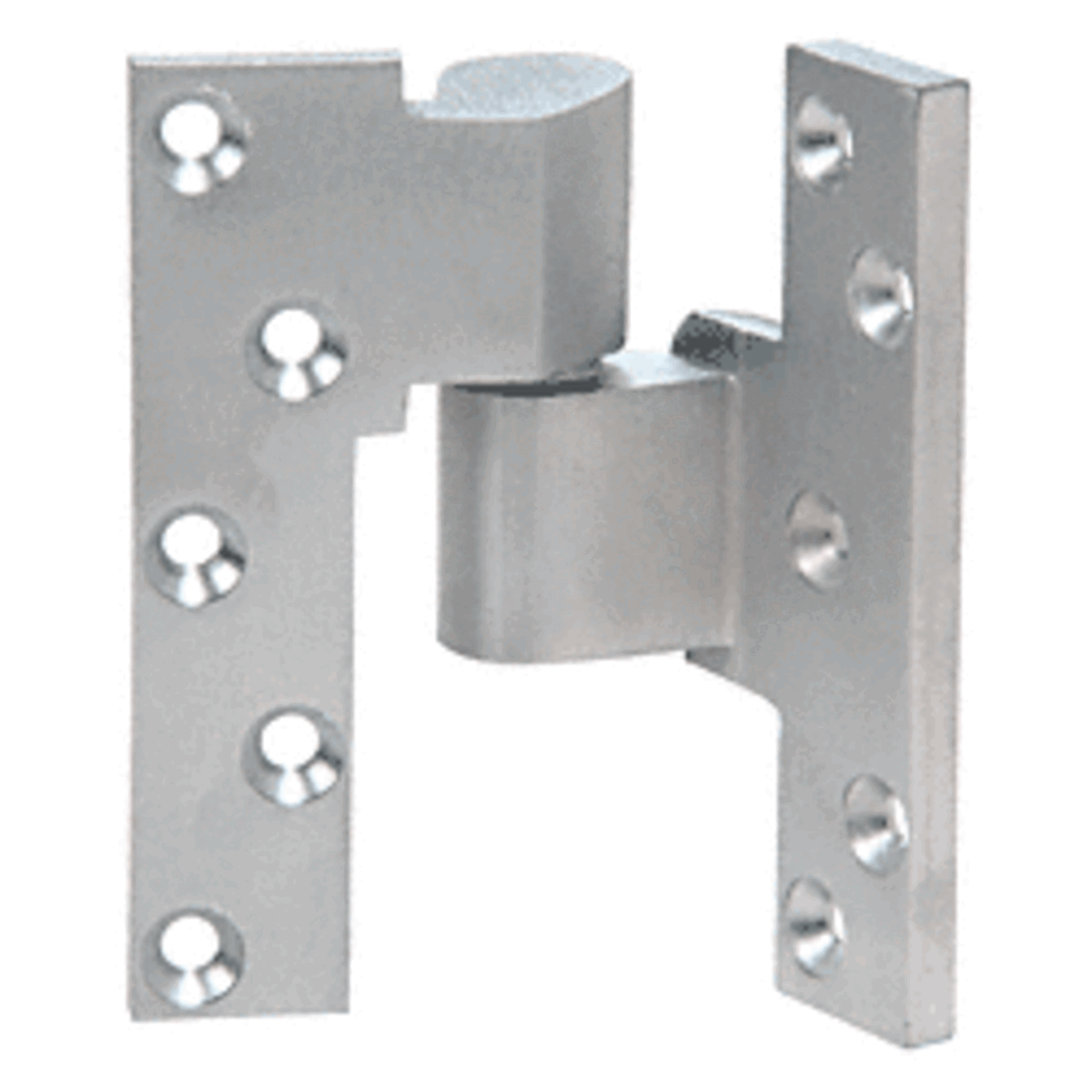

CRL 19RHSC Satin Chrome 3/4" Right Hand Offset Pivot

Your Price: $141.72
Retail Price:$169.66
Your Savings:$27.94(16%)
The CRL Satin Chrome 3/4" Offset Pivot ensures door alignment for aluminum storefronts, featuring adjustable height and maintenance-free operation.
Part Number : CRL_19RHSC
Availability: 24 In Stock
CRL 19RHSC Satin Chrome 3/4" Right Hand Offset Pivot

C.R. Laurence 19RHSC Satin Chrome 3/4" Offset Intermediate Right Hand Pivot is expertly designed for both new installations and retrofitting. This pivot is specifically intended for aluminum storefront doors, ensuring optimal door alignment and functionality. Crafted from durable aluminum, it features a full-mortise design that incorporates a full race ball-bearing and Oilite bronze bushing, providing a long-lasting, maintenance-free performance. With a 5/8" vertical adjustment capability, the fully retractable pin simplifies installation and allows for precise door positioning. It is essential to note that these pivots are not load-bearing and should be used on doors measuring 90" or taller, with additional pivots recommended for every extra 30" of height or fraction thereof. Available in four finishes, the satin chrome option adds a sleek aesthetic while maintaining functionality. The product is handed for right-hand use, ensuring easy installation in the intended orientation. With no shipping limitations, the C.R. Laurence 19RHSC Pivot is a reliable choice for professionals seeking quality and performance in their door hardware solutions.

Satin Chrome 3/4" Offset Intermediate Right Hand Pivot

  • For New or Retrofit Use
  • Intended for Use with Aluminum Storefront Doors to Maintain Door Alignment
  • Fully Retractable Pin with 5/8" Vertical Adjustment
  • Full Race Ball-Bearing and Oilite Bushing
  • Available in Four Finishes
  • Handed Left or Right

These CRL 3/4" (19 mm) Intermediate Offset Pivots are for new or retrofit use with standard 1-3/4" (44.5 mm) storefront aluminum doors to maintain door alignment. These are handed, full-mortise type Pivots, and feature a full race ball bearing and oilite bronze bushing for along maintenance-free life. They are not intended to be load-bearing pivots. Pivots allow for a 5/8" (16 mm) vertical adjustment, and feature a fully retractable pin for easy installation.


Product Warning:

These Pivots maintain door alignment when used with doors 90" (2.29 m) or taller. Each additional 30" (762 mm), or fraction thereof, warrants the use of an additional intermediate Pivot.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Ball Bearing: Yes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Chrome

Handing: Right Hand

Load Bearing: No

Material: Aluminum

New or Retrofit Use: Yes

Oilite Bushing: Yes

Pivot Type: Intermediate

Recommended Door Type: Aluminum Store Front

Shipping Limitations: None

Type: New Or Retrofit

Vertical Adjustment: 5/8
