CRL 1B91111 U.S. Aluminum Clear Anodized IT451 Offset Pivot Transom Door Frame (1FT)

CRL 1B91111 - U.S. Aluminum Clear Anodized Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (1FT) offers a robust solution for your architectural needs. This complete frame is expertly designed to accommodate a base 36" x 84" offset pivot door, featuring a thickness of 1-3/4". Constructed with 1T442 Open Back Jambs and a durable 1450 Header, it ensures a reliable and stylish entrance. The frame measures 2" x 4-1/2" (50.8 x 114.3 mm) and includes an aluminum threshold for enhanced stability and weather protection. With the capability to support a 105º overhead concealed closer equipped with an offset arm, this transom door frame is perfect for high-traffic areas. Essential components such as DS051 door stops, weatherstrip, and standard hardware are included, simplifying the installation process. It's important to note that while all necessary fasteners and hardware for frame assembly are included, the customer will need to provide fasteners for attaching the frame to the opening. For frames less than 40" (1.0 m) in width, be mindful of ADA compliance. Finished in clear anodized Class 1, the CRL 1B91111 combines functionality with a sleek aesthetic, making it an ideal choice for both commercial and residential applications.

-U.S. Aluminum Clear Anodized Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (1FT)

• Custom Size
• Aluminum Threshold is Included

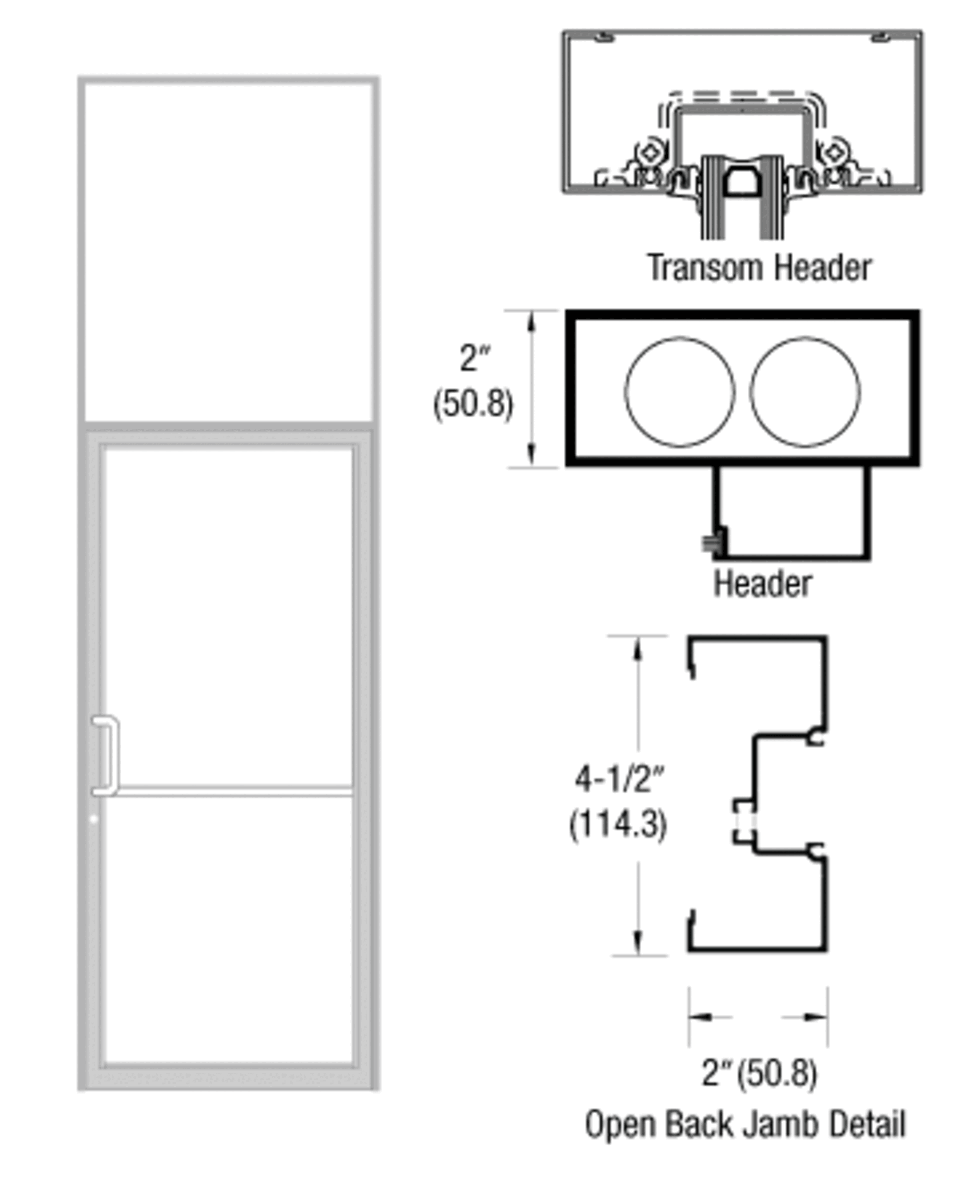

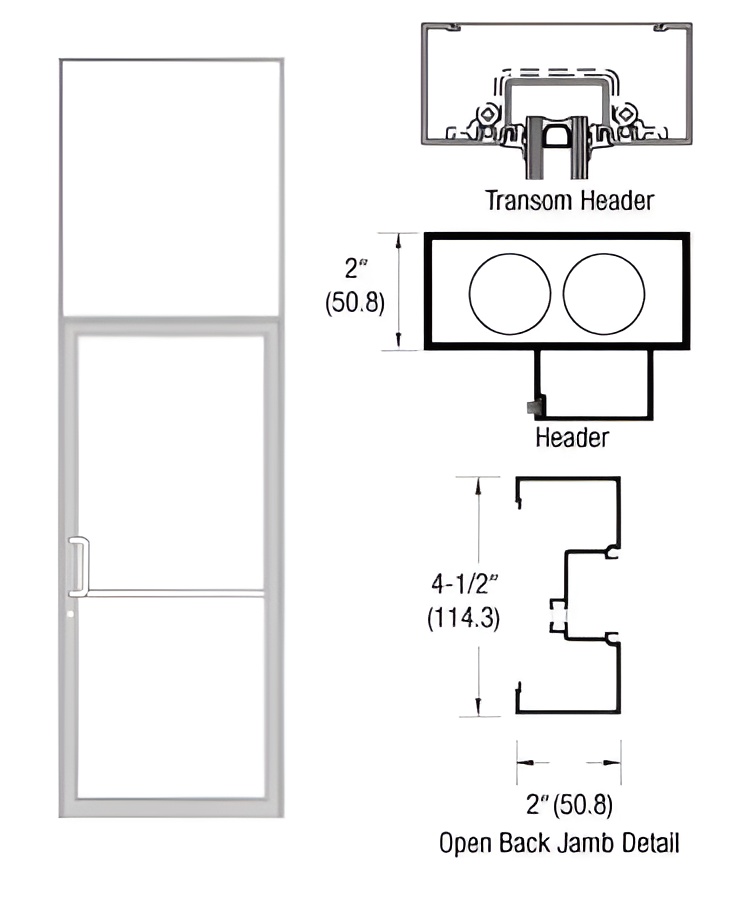

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Transom Frame with Open Back Jambs
