CRL 1B91122 U.S. Aluminum Dark Bronze Anodized IT451 Offset Pivot Transom Door Frame

CRL 1B91122 - U.S. Aluminum Dark Bronze/Black Anodized Class 1 Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (1FT) is engineered for durability and style. This 2" x 4-1/2" (50.8 x 114.3 mm) offset pivot transom frame features open back jambs, allowing for seamless integration into various architectural designs. Customizable to fit specific needs, this frame is ideal for accommodating a base 36" x 84" offset pivot 1-3/4" door, perfectly suited for a 105º overhead concealed closer with an offset arm. Included in the complete frame package is a robust aluminum threshold, along with essential components such as DS051 door stops for the specified door thickness, weather stripping, and standard hardware preparations. All necessary fasteners and hardware for frame assembly are provided, ensuring a straightforward installation process. However, it is important to note that customers will need to supply fasteners for attaching the frame to the opening. With its striking black bronze anodized Class 1 finish, this frame not only meets aesthetic expectations but also complies with industry standards. For shipping, please be aware that this product is available via common carrier only, ensuring safe delivery to your project site.

-U.S. Aluminum Dark Bronze/Black Anodized Class 1 Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (1FT)

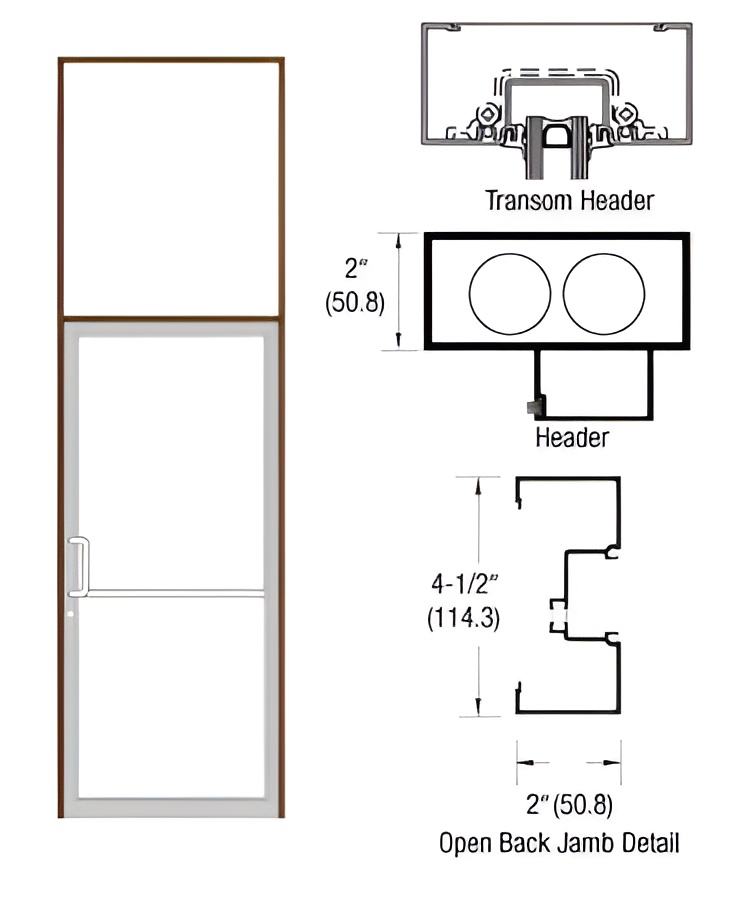

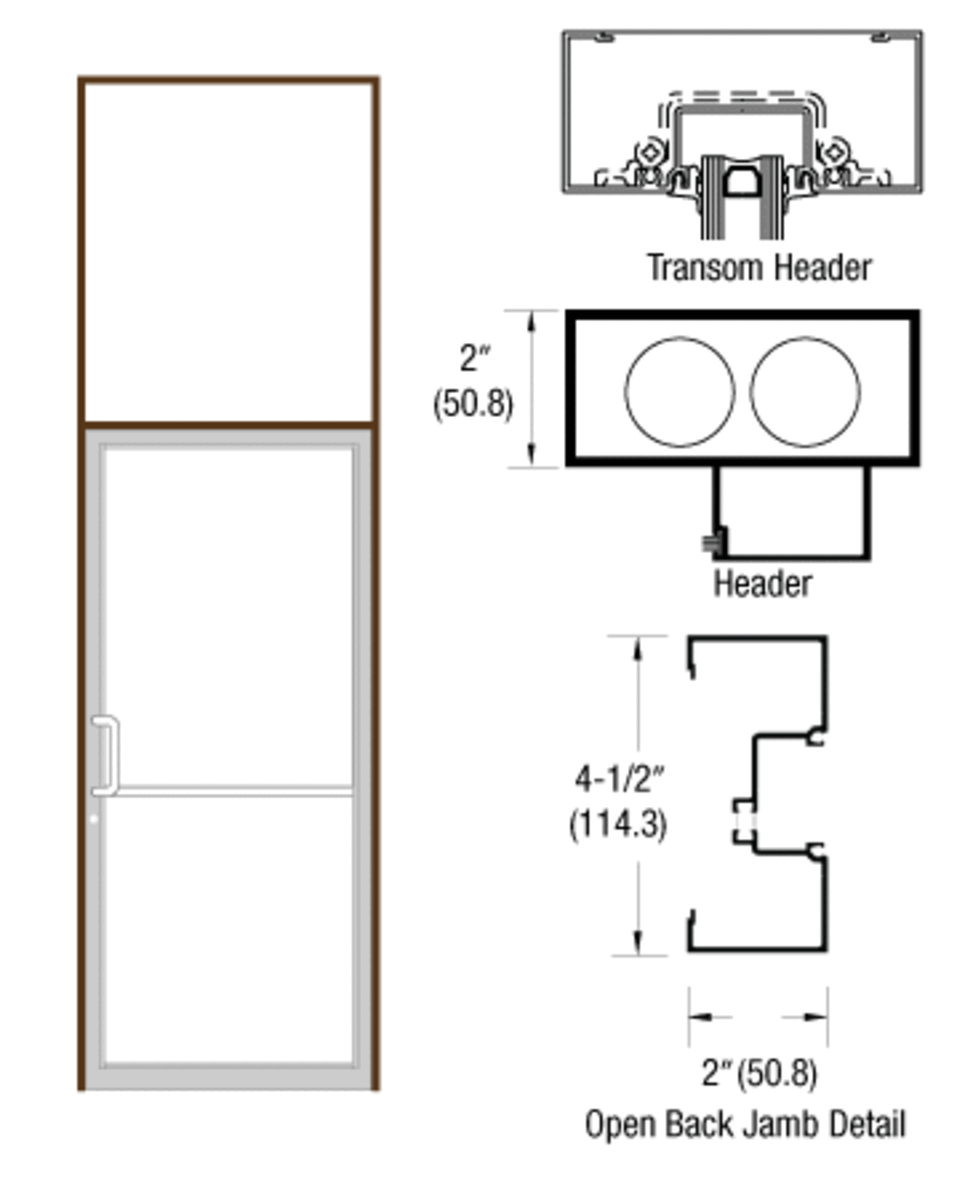

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Transom Frame with Open Back Jambs
• Custom Size
• Aluminum Threshold is Included
