CRL 1B92152 U.S. Aluminum KYNAR White IT451 Offset Pivot Transom Door Frame (2FT)

CRL 1B92152 -U.S. Aluminum White KYNAR Paint Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (2FT) is designed for flexibility and durability in architectural applications. This complete frame accommodates a base 72" x 84" offset pivot door that is 1-3/4" thick, perfectly integrating with a 105º overhead concealed closer utilizing an offset arm. Constructed from high-quality materials, the frame features 1T442 open back jambs with a robust 1450 header, ensuring strength and stability. The included aluminum threshold adds an extra layer of resilience while enhancing the overall aesthetic with its sleek white KYNAR finish. This frame is tailored for custom sizing, measuring 2" x 4-1/2" (50.8 x 114.3 mm), and is designed with open back jambs that simplify installation. Moreover, the package includes essential components such as DS051 door stops, weatherstrip, standard hardware, and complete hardware preparations for assembly. While all fasteners for the frame are included, customers will need to provide their fasteners for securing the frame to the opening. Please note that shipping is limited to common carriers only, and compliance warnings can be found on the product details. Elevate your project with this expertly crafted transom door frame from CRL.

-U.S. Aluminum White KYNAR Paint Custom Size Series IT451 Open Back Offset Pivot Transom Door Frame Complete (2FT)

• Custom Size

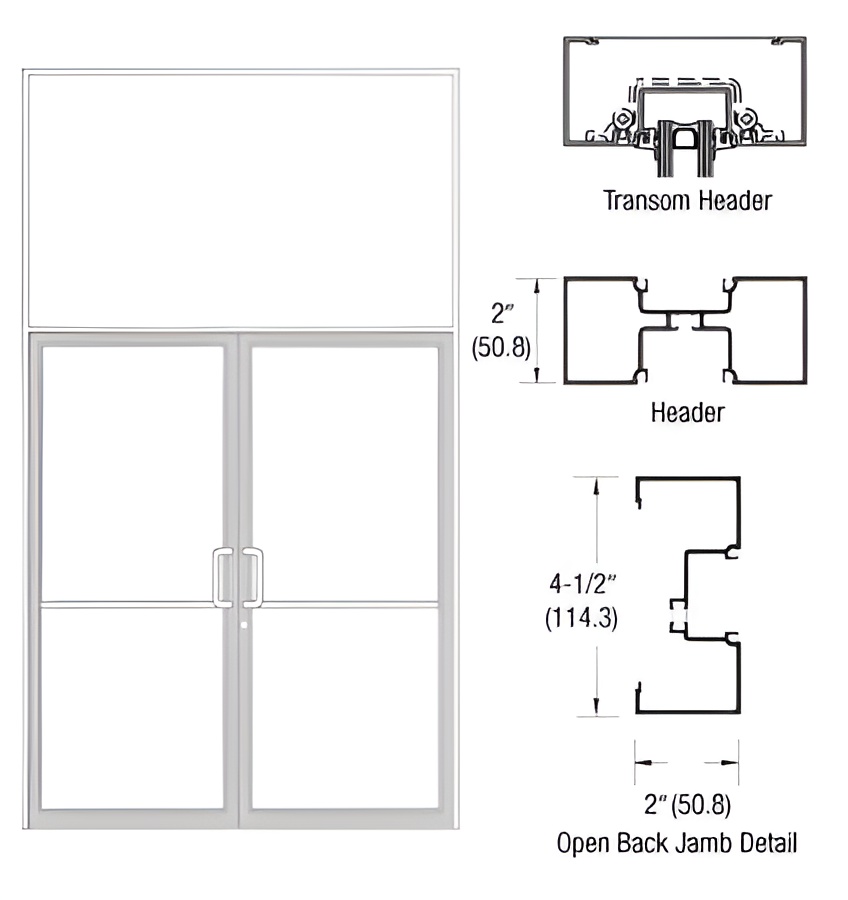

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Transom Frame with Open Back Jambs
• Aluminum Threshold is Included
