CRL 1D21871 U.S. Aluminum Custom KYNAR 250T Narrow Stile Geared Hinge Thermal Door

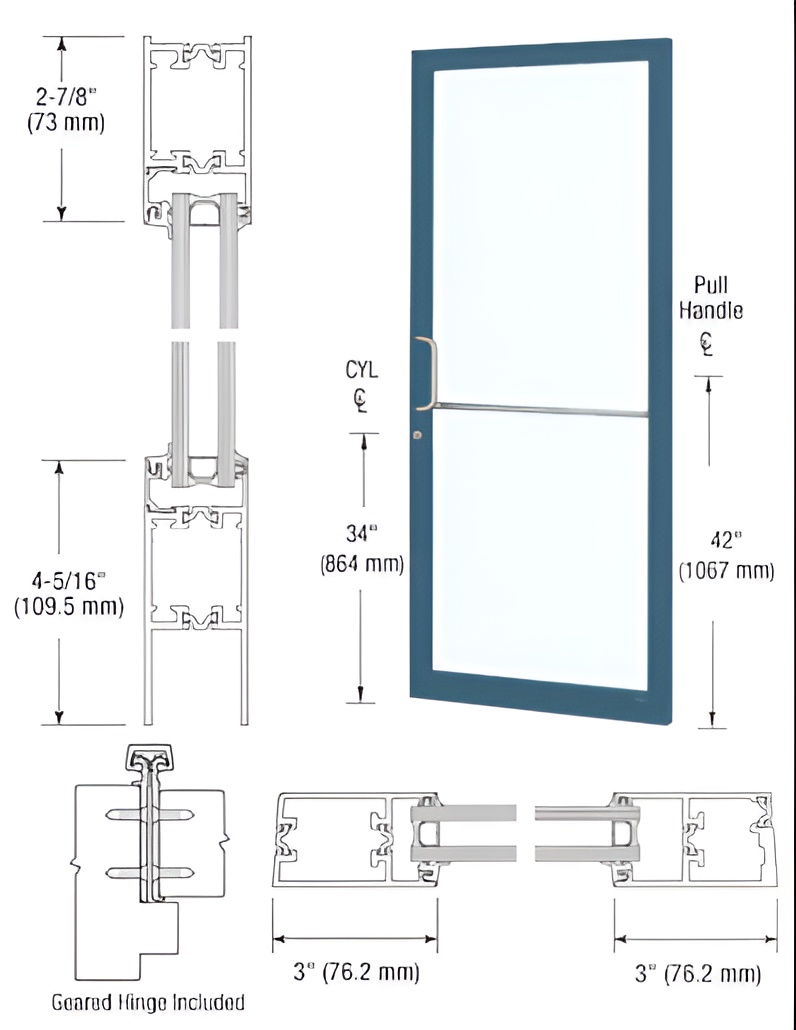

CRL Custom Narrow Stile Geared Hinge Thermal Entrance Door is expertly designed to meet your architectural needs while providing a sleek and modern aesthetic. Built with 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a robust 4-5/16" (110 mm) bottom rail, this door ensures durability and functionality. It includes essential features such as stiles designed for Gear Hinge hardware and glass stops for accommodating 1/4" (6 mm) tempered glass, which allows for a customizable look. This model is custom fabricated to accept a variety of optional hardware applications, making it versatile for any project. Standard inclusions are push/pull handles, hanging hardware, an MS hookbolt lock, and two keyed-alike cylinders for added security. The door also accommodates a 1" (25 mm) tempered insulating unit, although glass is not included. For compliance with A.D.A. regulations, a 10" (254 mm) bottom rail option is available, ensuring accessibility for all. Please note that for door widths less than 36" (914 mm), passing A.D.A. inspection may be a concern. This entrance door ships via common carrier only, ensuring safe delivery without the risk of damage during transit. Enhance your building’s entrance with the sophistication and reliability of the CRL Custom Narrow Stile Entrance Door.

-U.S. Aluminum Custom KYNAR Paint Custom Single Series 250T Narrow Stile Geared Hinge Thermal Entrance Door for Surface Mount Door Closer

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
• Custom Fabricated to Accept Optional Hardware Applications
• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
