CRL 1NT303 Adjustable Top Door Patch Insert for 19/32" Pivot PinC.R. Laurence 1NT303 Adjustable Top Door Patch Insert is designed for seamless compatibility with PH20 and PH21 Top Door Patch Fittings. This versatile insert accommodates a top pivot diameter of 19/32" (15 mm), making it an essential component for various transom patch fittings, including the No. 1NT300 Top Pivot Insert, 1NT401 Surface Mounted Top Pivot, and 1NT405 Threaded Top Pivot. Crafted for ease of installation, the 1NT303 includes two hex head cap screws, ensuring secure attachment to the top door patch. This insert promotes a smooth and efficient operation of door systems, enhancing both functionality and durability. It is important to note that it should not be used with the PH20C model. For users with specific pivot requirements, the product offers a warning regarding compatibility with the Rixson® 340 Center-Hung Walking Beam Pivot or any 1/2" (13 mm) diameter pivot pin, for which the 1NT303R insert should be utilized. Whether you are a building professional or a knowledgeable homeowner, the C.R. Laurence 1NT303 is a reliable solution for your door patch fitting needs, ensuring optimal performance and quality.

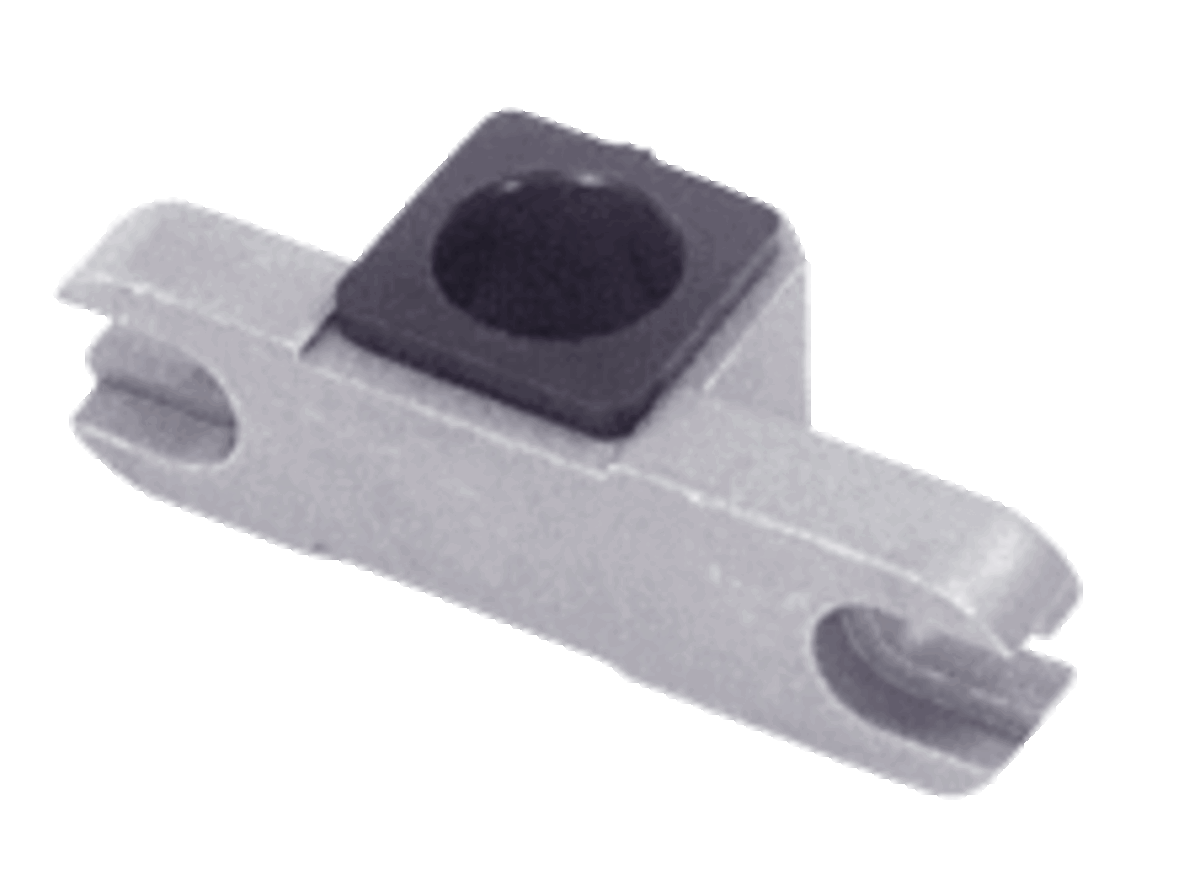

Adjustable Top Door Patch Insert for Use with 19/32" Diameter Top Pivot Pin
- For Use with PH20 and PH21 Top Door Patch Fittings
- Suitable for Use with Top Pivot Diameters of 19/32" (15 mm)
The
CRL Adjustable Top Door Patch Insert is suitable for use with all Transom Patch Fittings with No.
1NT300 Top Pivot Insert, No.
1NT401 Surface Mounted Top Pivot
1NT405 Threaded Top Pivot and
CRL860 Walking Beam Pivot. This insert will accept any circular pivot with 19/32" (15 mm) diameter.
INCLUDES:
1 Each: 1NT303 Adjustable Top Door Patch Insert;
2 Each: Hex Head Cap Screws for Attaching Insert to the Top Door Patch
SPECIFICATIONS
For Use With: PH20 and PH21 Top Door Patch Fittings
NOTE: Do not use with PH20C
Connects To:
All Transom Patch Fittings with
1NT300 Top Pivot Insert;
1NT401 Surface Mounted Top Pivot;
1NT405 Threaded Top Pivot;
CRL9040WBP Walking Beam Pivot
Accepts:
Pivot Diameter of 19/32" (15 mm)
Product Warning:
If using this insert with the Rixson® 340 Center-Hung Walking Beam Pivot, or any 1/2" (13 mm) diameter pivot pin, use insert 1NT303R.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Includes: Fasteners
Shipping Limitations: None
