CRL 1NT303R Adjustable Top Door Patch Insert for 1/2" Pivot PinC.R. Laurence 1NT303R Adjustable Top Door Patch Insert for 1/2" Diameter Pivot Pin offers a versatile solution for your door patch fitting needs. Designed for compatibility with PH20 and PH21 Top Door Patch Fittings, this insert is essential for ensuring reliable functionality in your architectural applications. It accepts a 1/2" (12.7 mm) diameter pivot pin, making it an ideal choice for various installations. This adjustable insert is suitable for use with all Transom Patch Fittings featuring the 1NT300 Top Pivot Insert, the 1NT401 Surface Mounted Top Pivot, the 1NT405 Threaded Top Pivot, and the CRL9040WBP Walking Beam Pivot. Each package includes one 1NT303 Adjustable Top Door Patch Insert and two hex head cap screws, ensuring you have the necessary components for easy installation. For optimal performance, it is important to note that this insert should not be used with PH20C fittings. Additionally, when using it with the Rixson® 340 Center-Hung Walking Beam Pivot, the 1NT303R insert is recommended. Built with high-quality materials, this product is engineered to withstand the demands of any professional setting, providing both durability and reliability in your glazing projects.

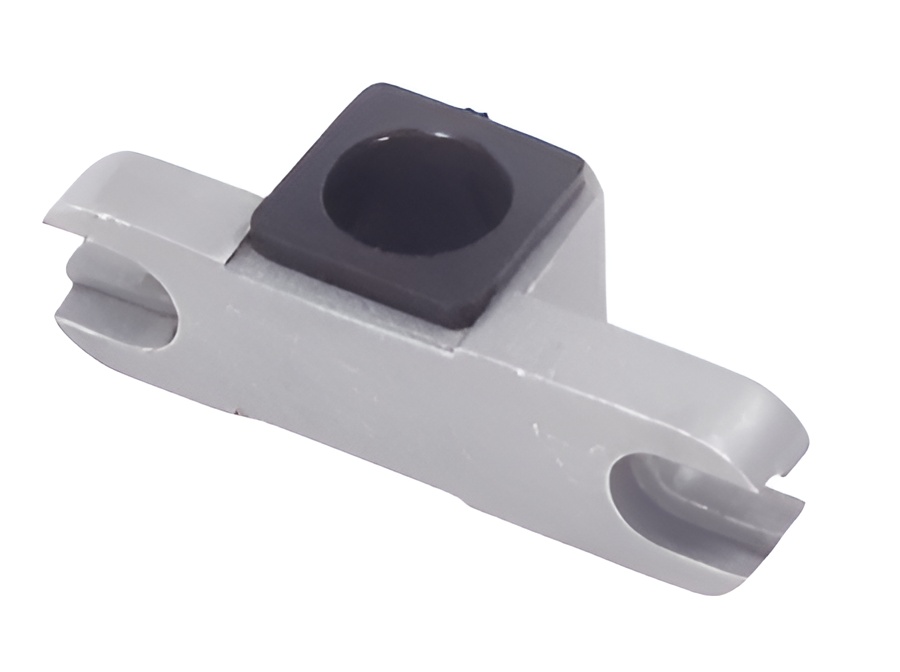

Adjustable Top Door Patch Insert for 1/2" Diameter Pivot Pin
- For Use with PH20 and PH21 Top Door Patch Fittings
- Suitable for 1/2" (12.7 mm) Diameter Pivot Pin
- For 1/2" (12.7 mm) Diameter Pivot Pin
The
CRL Adjustable Top Door Patch Insert is suitable for use with all Transom Patch Fittings with No.
1NT300 Top Pivot Insert, No.
1NT401 Surface Mounted Top Pivot
1NT405 Threaded Top Pivot and
CRL860 Walking Beam Pivot. This insert will accept any circular pivot with 19/32" (15 mm) diameter.
INCLUDES:
1 Each: 1NT303 Adjustable Top Door Patch Insert;
2 Each: Hex Head Cap Screws for Attaching Insert to the Top Door Patch
SPECIFICATIONS
For Use With: PH20 and PH21 Top Door Patch Fittings
NOTE: Do not use with PH20C
Connects To:
All Transom Patch Fittings with
1NT300 Top Pivot Insert;
1NT401 Surface Mounted Top Pivot;
1NT405 Threaded Top Pivot;
CRL9040WBP Walking Beam Pivot
Accepts:
For 1/2" (12.7 mm) Diameter Pivot Pin
Product Warning:
If using this insert with the Rixson® 340 Center-Hung Walking Beam Pivot, or any 1/2" (13 mm) diameter pivot pin, use insert 1NT303R.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Accepts Spindle Size: 1/2 in. (13 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Includes: Fasteners
Shipping Limitations: None
