CRL 1Z41271 U.S. Aluminum KYNAR 400T Thermal Medium Stile Pivot Entrance Door with Panic

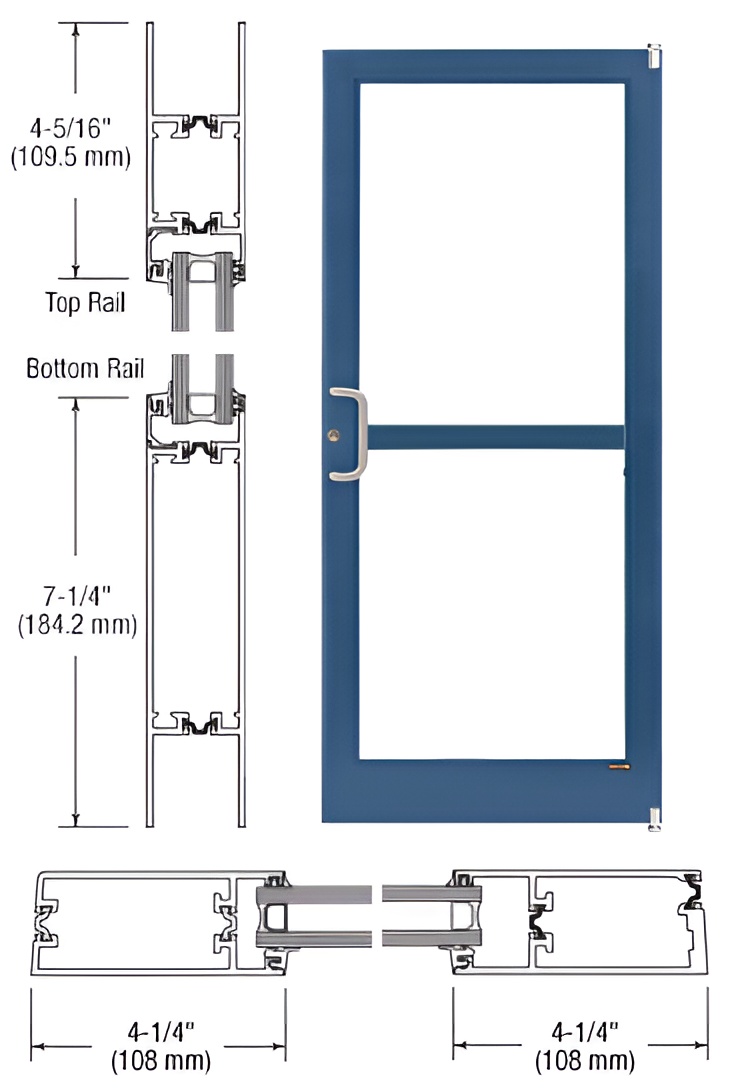

CRL U.S. Aluminum Custom KYNAR Paint Single Series 400T Thermal Medium Stile Offset Pivot Entrance Door with Panic for Surface Mount Door Closer is meticulously designed for durability and functionality. This entrance door features robust 4-1/4" (108 mm) stiles and a 4-5/16" (110 mm) top rail, ensuring strength and stability for high-traffic environments. The door includes a standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder, making it an excellent choice for safety-conscious applications. Accommodating a 1" (25 mm) tempered insulating unit (glass not included), this model is fully customizable to accept optional hardware applications. The door's 7-1/4" (184 mm) bottom rail provides a solid base, while a 10" (254 mm) bottom rail option ensures compliance with A.D.A. and Title 21 requirements. Installation is made easy with included protruding hardware, such as handles and pivots, which are packaged separately to avoid damage during transit. Please note that doors with widths less than 36" (914 mm) may not meet A.D.A. inspection criteria. Ideal for a variety of commercial settings, this CRL entrance door combines aesthetic appeal with essential safety features to meet diverse architectural needs.

-U.S. Aluminum Custom KYNAR Paint Single Series 400T Thermal Medium Stile Offset Pivot Entrance Door With Panic for Surface Mount Door Closer

• Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and One Cylinder
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
• Custom Fabricated to Accept Optional Hardware Applications
