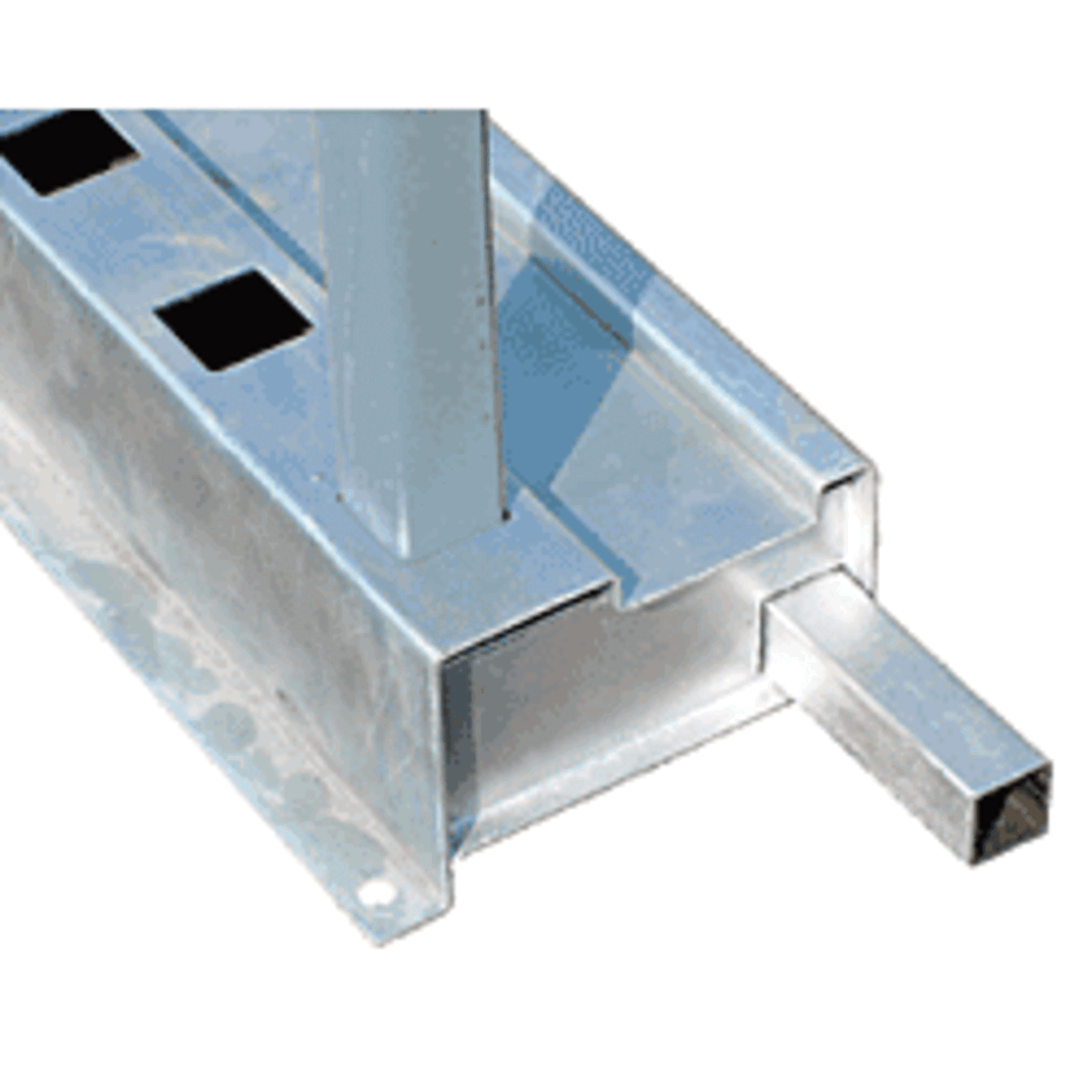

CRL 2005423 60" Outside Rail for Multi-Purpose Glass Storage System

C.R. Laurence 2005423 60" Long Outside Rail for Multi-Purpose Glass Storage System offers a robust solution for the upright storage of glass cases, glass packs, and loose lites. Engineered with a fixed post system, this rail is rated to support up to 4,000 lb. (1814 kg) between posts, ensuring dependable performance in demanding environments. Designed for versatility, the base rails can be butted together in 60" (1.52 m) increments, allowing for custom lengths tailored to your specific needs. Each rail is predrilled with 1/2" (12.7 mm) holes for easy anchoring to the shop floor, while a unique 1" (25 mm) square slip-joint tube maintains alignment and a straight line when multiple rails are connected. The hot dip galvanized finish protects all standard components from wear and tear, enhancing longevity. Noteworthy features include 2" square holes for 2 x 4 supports, heavy-duty powder-coated finish, and an easy slide center rail to facilitate smooth glass handling. With dimensions of 11" x 5.5" x 60", this outside rail is designed to accommodate your glass storage requirements efficiently, making it an essential addition to any professional setup.

60" Long Outside Rail for Multi-Purpose Glass Storage System

• Fixed Post System for Wood Cases, Glass Packs, and Loose Lites
• Rated up to 4,000 lb. (1814 kg) Between Posts
• Customize yours using individual components or choose one of the Kits

• Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4's not included). Optional Easy Slide System (made of low friction material) can be mounted to the 2 x 4’s for extra protection


• Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack


• Complete with 11" connector tube for butting rails together in a straight line for desired length


• Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom


• 2" square tube posts and 2" square rubber post caps to separate glass


• Heavy-duty powder coated finish


• Minimum of 2-degree angle when dropping stone in between posts
