CRL 20101M18 Jackson Adjustable Spring Power Multi Size 105 Hold Open Overhead Concealed Closer Body is engineered for versatility and reliability in door control. This adjustable closer accommodates door widths ranging from 30" to 42" (762 mm to 1.07 m) and delivers optimal performance with its adjustable spring power settings from Size 1 (Barrier-Free) to Size 4 (Regular). Designed to retrofit existing fixed spring closers, it features dual-action valves that control both closing and latching speeds, ensuring smooth operation. With a generous 105° hold open capability, this closer is suitable for various environments, fitting into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Constructed for durability, the closer supports a maximum door weight of 250 lbs. (113.4 kg) and is compatible with aluminum and hollow metal doors. It boasts a UL listing and comes with a 5-year limited warranty, attesting to its quality and dependability. Please note that while the Adjustable Spring Power Closer can be fine-tuned for site conditions, compliance with A.D.A. opening force requirements may affect closing power. Ensure you have the appropriate mounting clips for installation, as they are not included with this closer body.

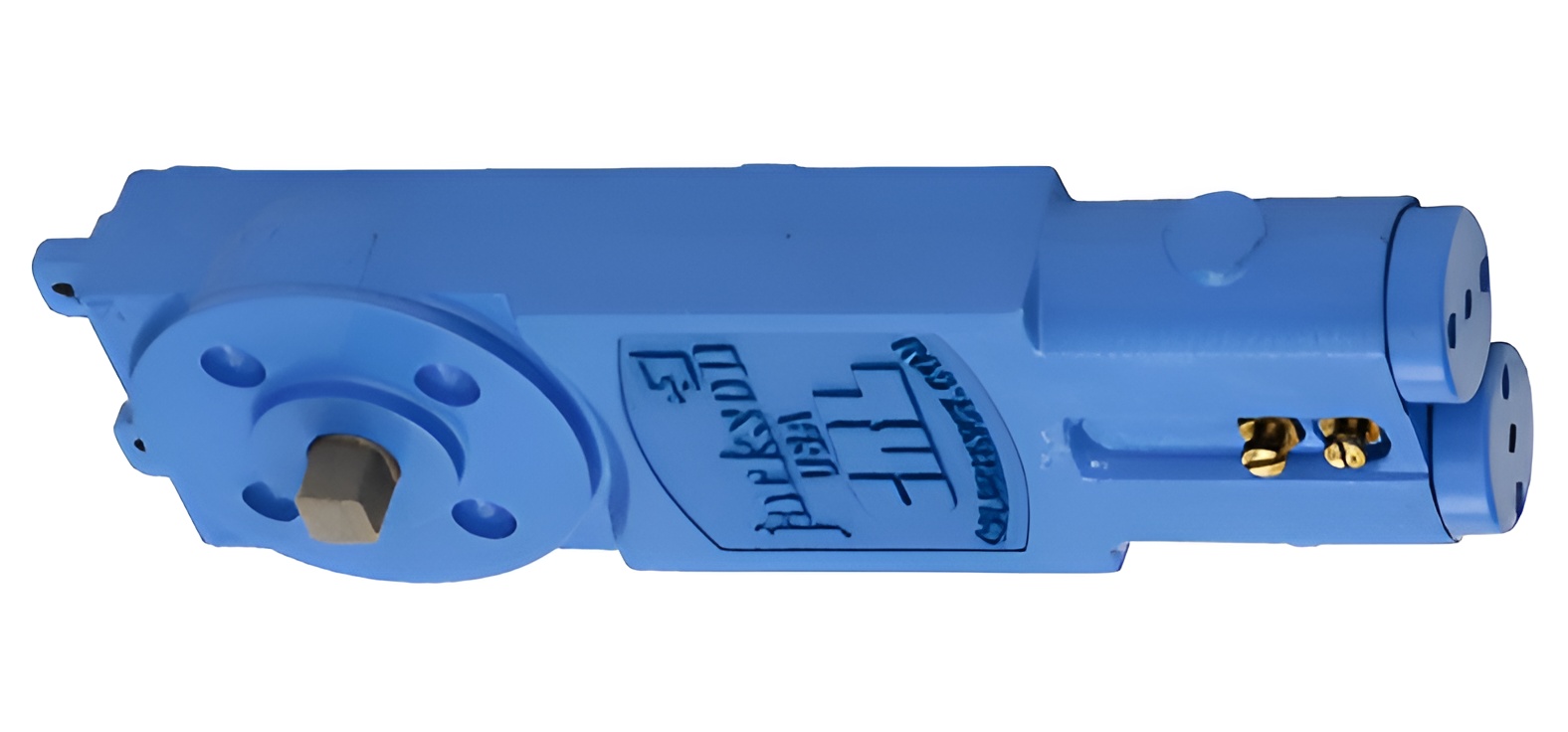

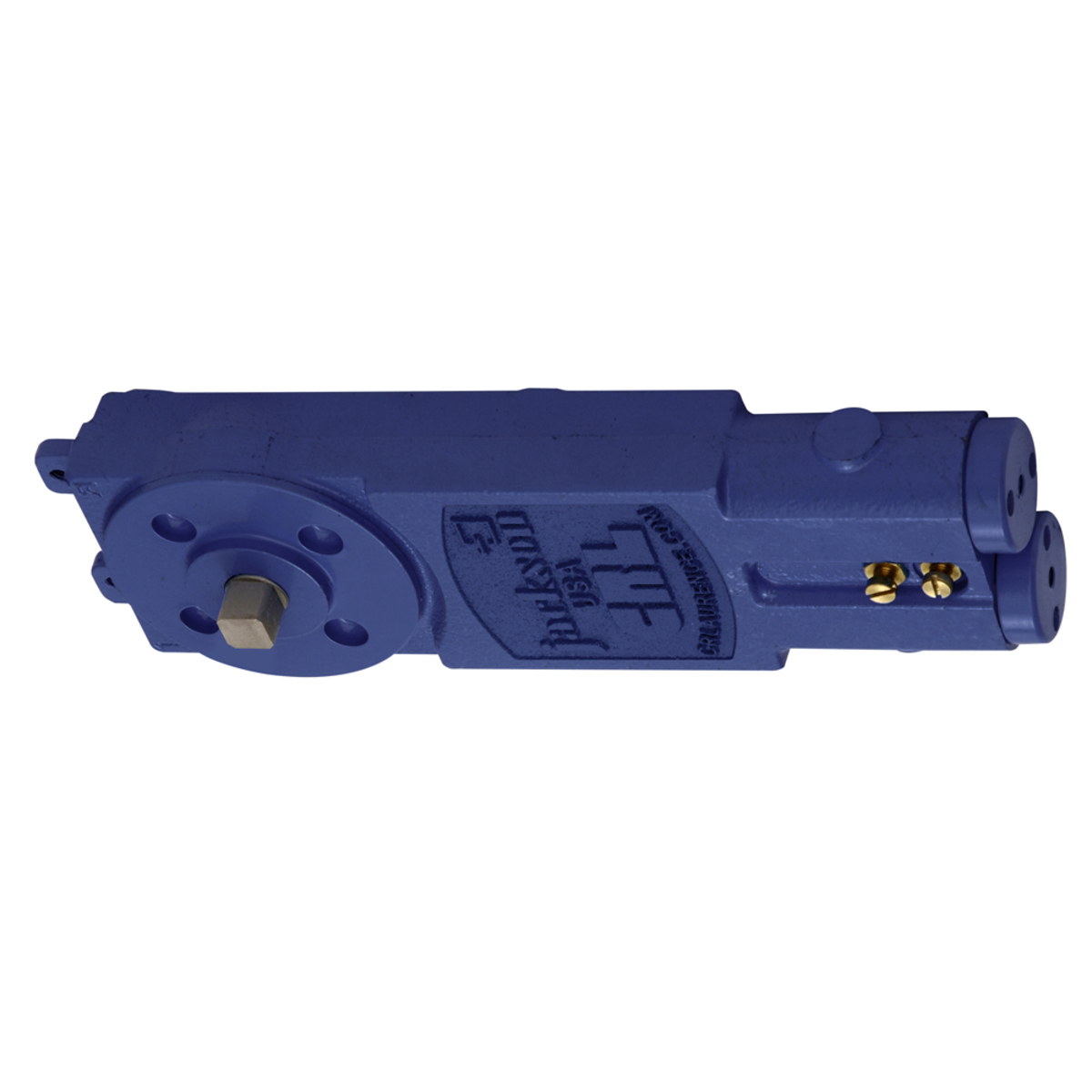

Jackson Adjustable Spring Power Multi Size 105 Hold Open Overhead Concealed Closer Body
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The closer features dual action valves for closing and latching speeds. 105º Hold Open with fixed Adjustable Spring Power Multi Size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar style of Overhead Concealed Closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 105°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Adjustable
UL Listed: Yes
