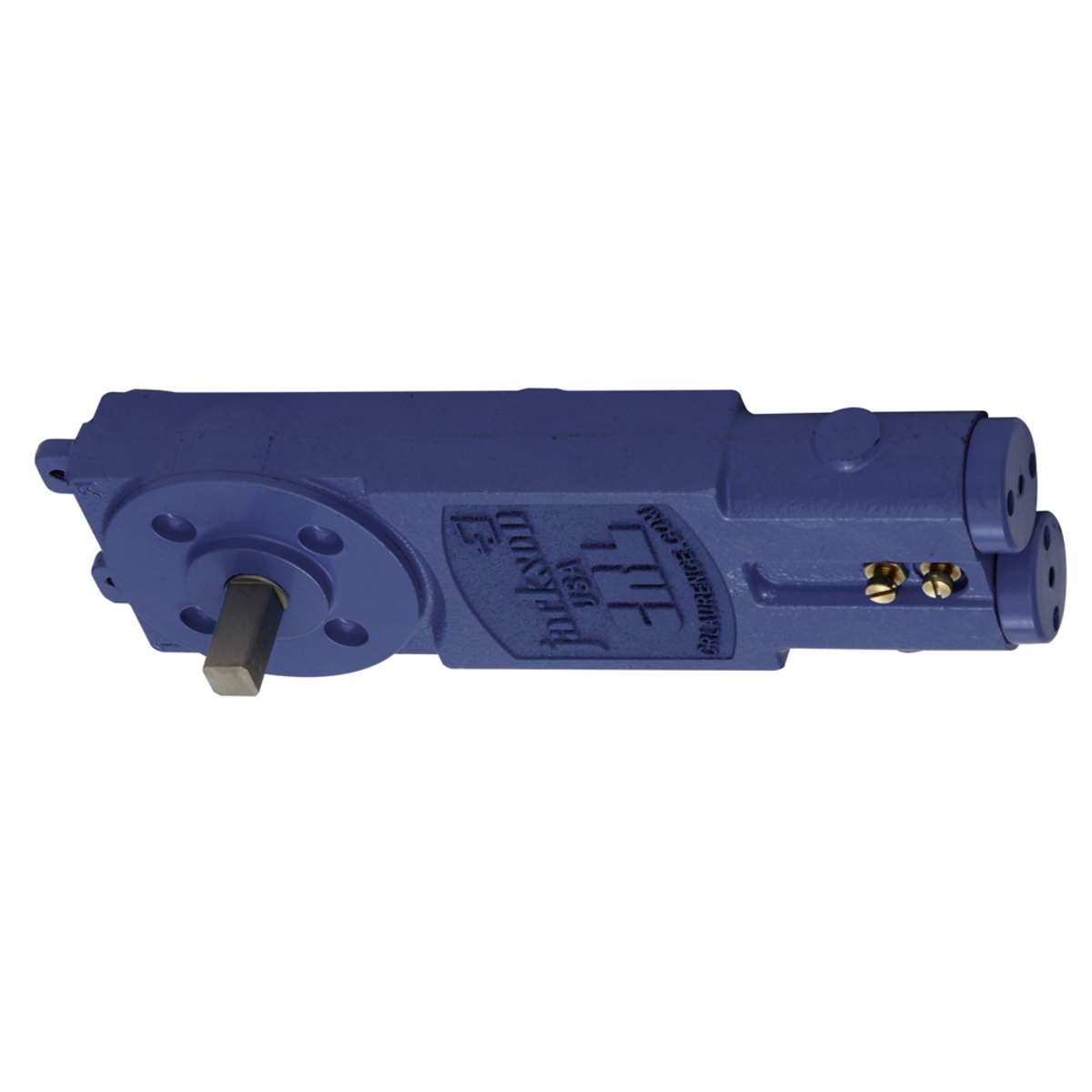

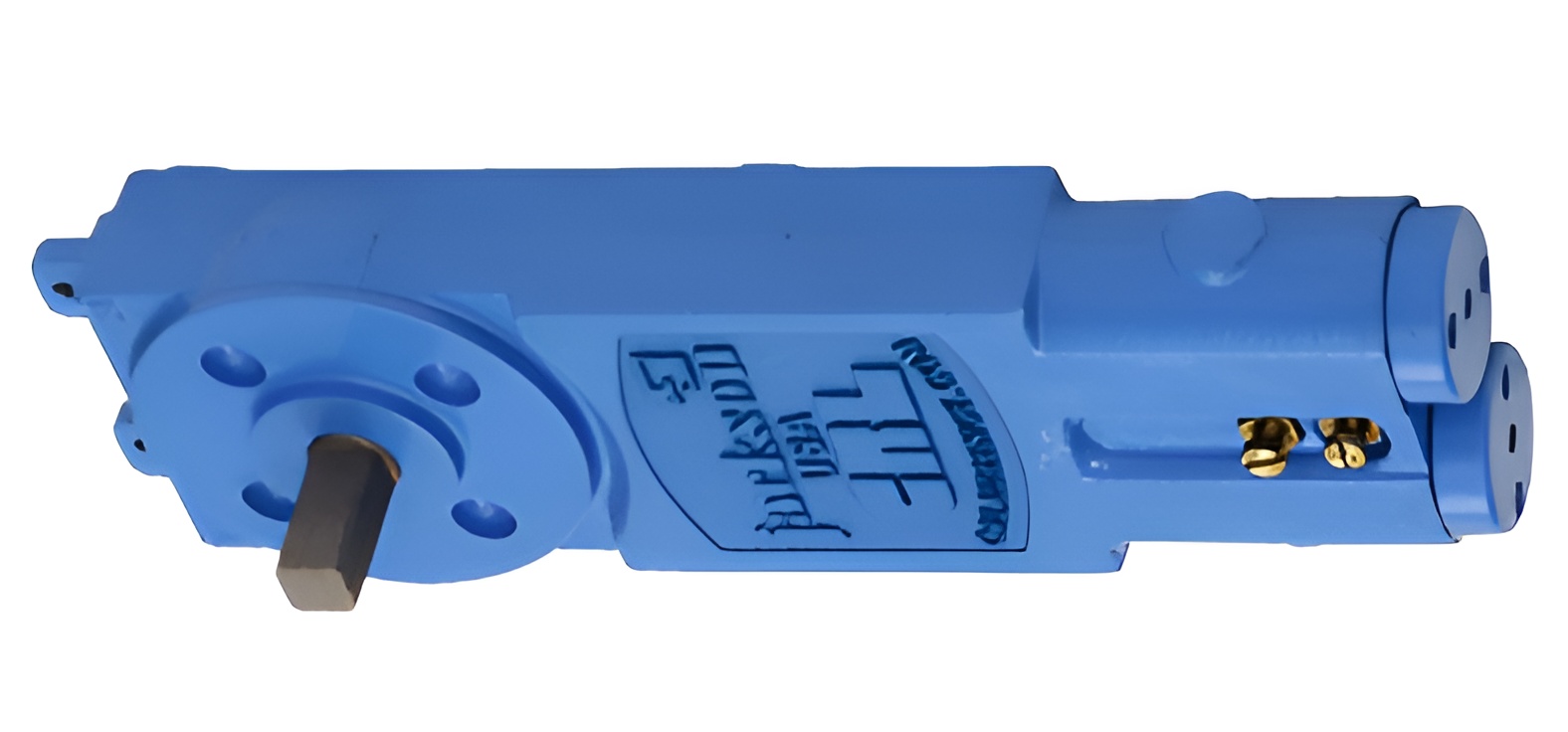

CRL 20106M20 Jackson Adjustable Spring Power 90 Hold Open Overhead Concealed Closer with 1-13/64" Extra Long Spindle is expertly designed for ADA barrier-free applications. This innovative closer features an extra-long spindle, measuring 1-13/64 inches, offering enhanced compatibility with patch fittings and rail hardware for glass doors. Its patented Dual Compression Technology allows for adjustable spring power sizes ranging from 2 to 4, facilitating precise tension adjustments to meet varying site conditions. With fully independent valves, this closer ensures maximum adjustability to balance building codes and stack pressure while keeping doors securely closed. It is engineered to retrofit most existing overhead concealed closers, making it a preferred choice among building professionals worldwide. The unit supports a maximum door weight of 250 lbs and is suitable for doors up to 96 inches in height, with a recommended width of up to 42 inches for exterior doors and 36 inches for interior applications. Moreover, the CRL Jackson closer is U.L. listed and comes with a five-year limited warranty, underscoring its reliability. Please note that mounting clips are not included, so be sure to acquire the appropriate clip package for your installation needs. Trust C.R. Laurence for quality and performance in every application.
Jackson Adjustable Spring Power 90 Hold Open Overhead Concealed Closer with 1-13/64" Extra Long Spindle
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Americans with Disabilities Act: Yes
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 90°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1-13/64 in. (30.6 mm)
Spring Size: Adjustable
UL Listed: Yes
