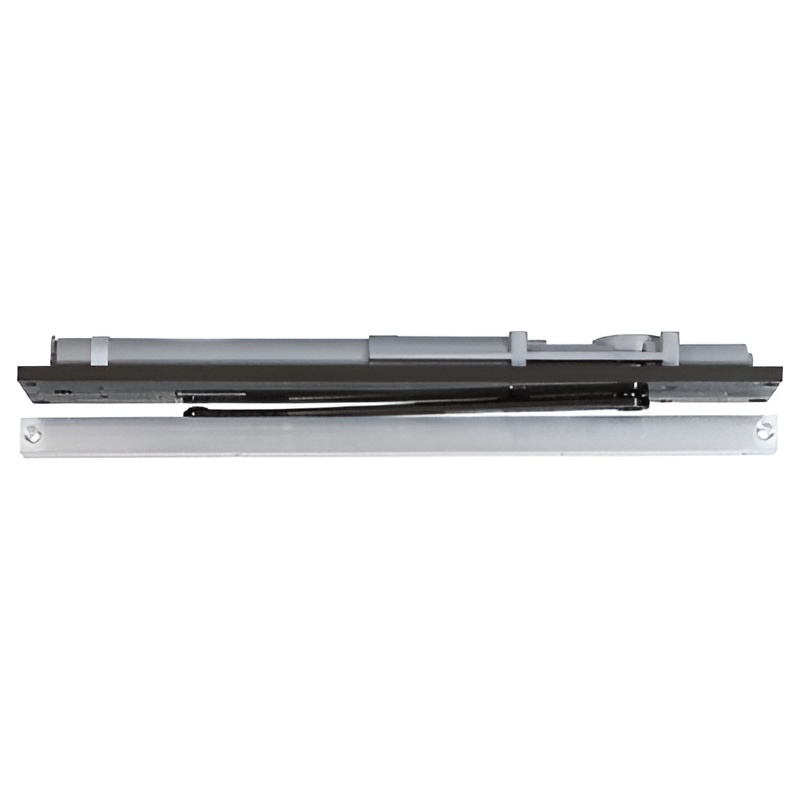

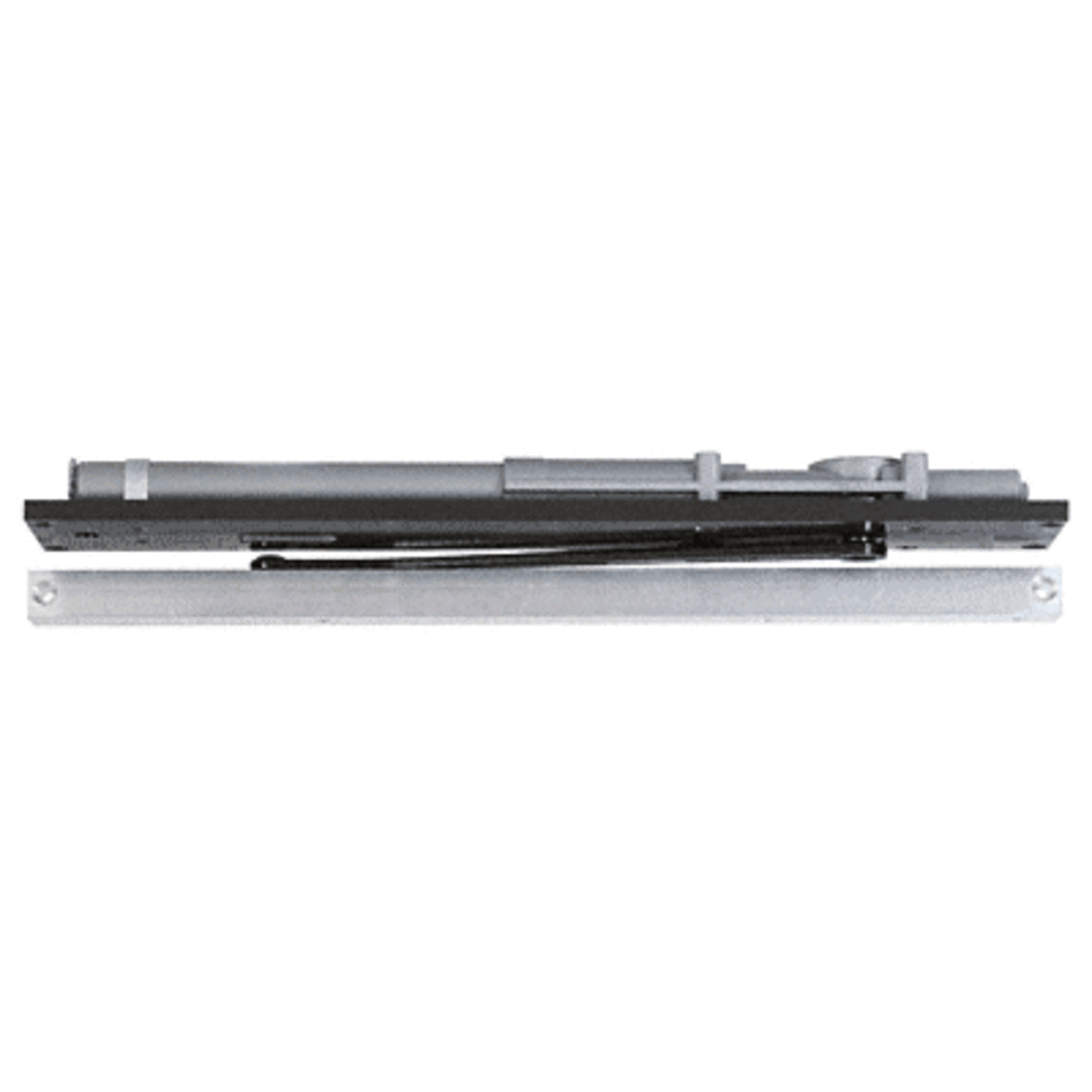

C.R. Laurence LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer in Dark Bronze is engineered for durability and optimal performance. Designed to fit a minimum transom size of 1-3/4" x 4", this heavy-duty closer meets the rigorous standards of ANSI A156.4, Grade 1, ensuring reliable functionality in high-traffic areas. This overhead concealed closer features a single lever arm and roller assembly that provides smooth and quiet operation, making it an excellent choice for both commercial and residential applications. With fixed spring sizes that accommodate interior doors up to 54" and exterior doors up to 42", it effectively meets ADA requirements, enhancing accessibility without compromising on style. The LCN 2030 Series is UL and cUL listed for self-closing doors, ensuring compliance with safety standards. The closer is specifically designed for right-hand swing doors, and it is recommended for use with aluminum and hollow metal doors. With dimensions of 20-5/8" in length and 1-5/8" in height, it seamlessly integrates into various architectural designs. Choose the C.R. Laurence LCN Overhead Concealed Closer for a reliable and aesthetically pleasing solution that combines functionality with modern design.
LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer Dark Bronze
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-5/8 in. (41.3 mm)
Body Length: 20-5/8 in. (523.9 mm)
Body Widt: 3-23/32 in. (94.5 mm)
Body Width: 3-23/32 in. (94.5 mm)
Case Quantity: 2
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Cover Plate Length: 21-7/8 in. (555.6 mm)
Cover Plate Width: 4 in. (101.6 mm)
Door Height: 96 in. (2438.4 mm)
Handing: Right Hand
Hold Open Option Available: Yes
Maximum Door Width - Exterior: 36 in. (914.4 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum,Hollow Metal
Shipping Limitations: None
Slide Track Depth: 1-3/8 in. (34.9 mm)
Slide Track Length: 22-1/2 in. (571.5 mm)
Spring Size: 5
UL Listed: Yes
