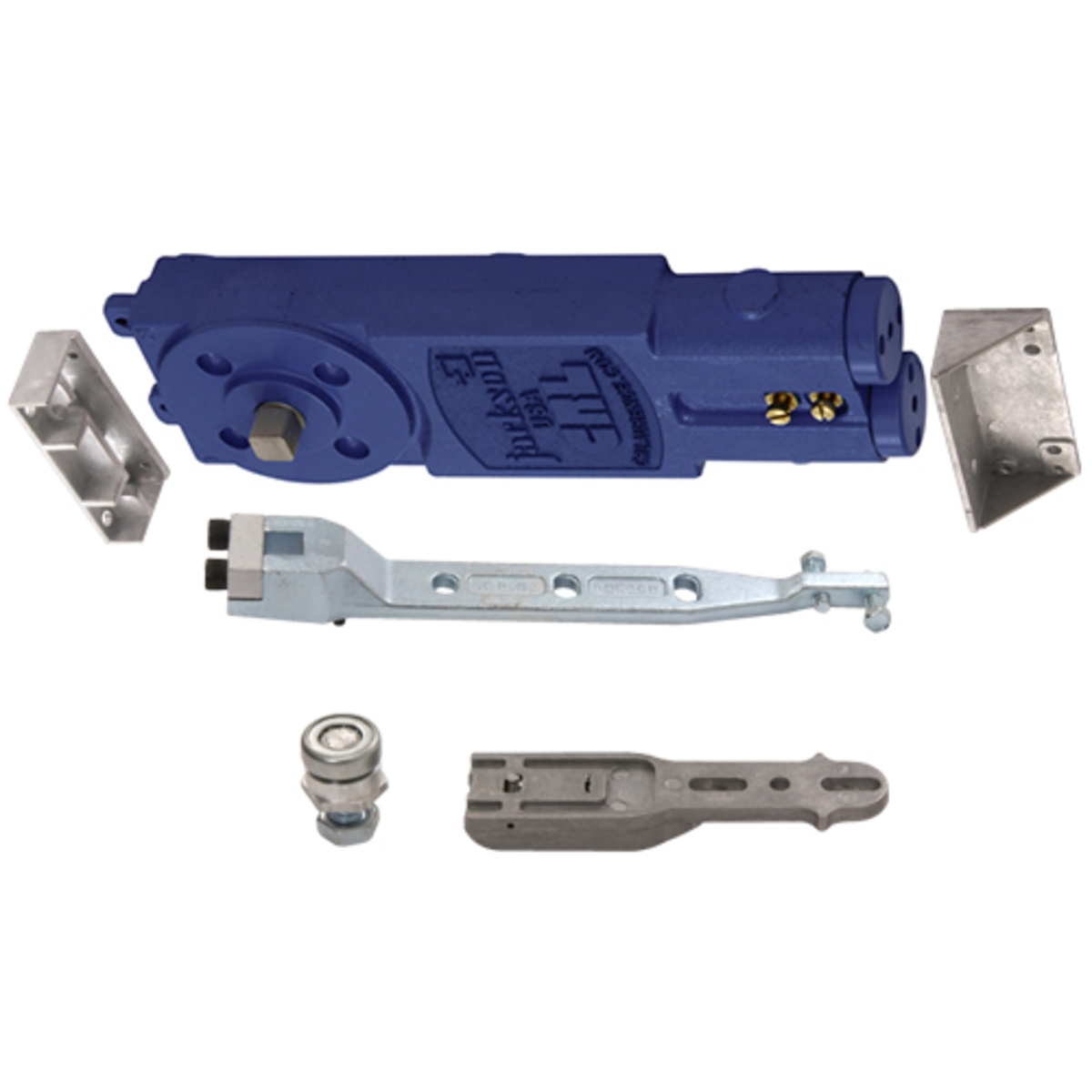

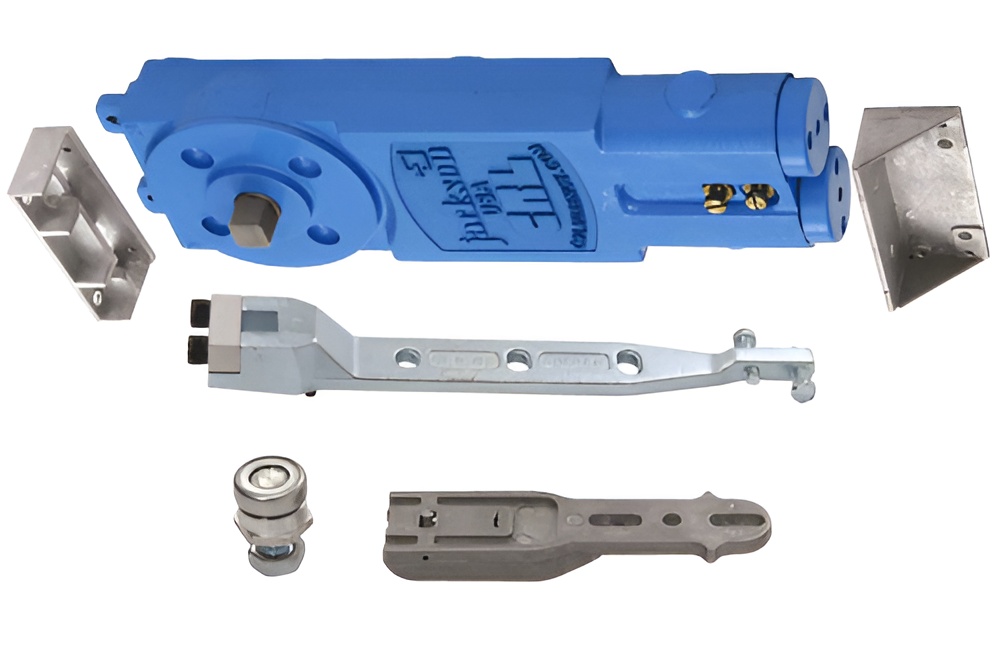

CRL 21101A17 Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "A" Hardware Package is designed for optimal functionality in A.D.A. barrier-free applications. This versatile door closer accommodates doors ranging from 30" to 48" wide, ensuring compliance with A.D.A. opening force requirements while providing reliable control for various door types and sizes. Featuring a threshold-mounted pivot suitable for a 1" deep bottom rail, this closer is adjustable across a range of sizes from 1 (Barrier-Free) to 4 (Regular), allowing you to tailor the spring power to your specific needs. The durable aluminum construction is UL listed and comes with a 5-year limited warranty, reflecting its high quality and reliability. For enhanced safety, it is recommended to use an auxiliary floor or overhead door stop to prevent damage from over-extension. While this closer is designed to meet A.D.A. specifications, be aware that varying site conditions may affect closing force efficacy. With a maximum door weight capacity of 250 lbs and a no-hold open feature at 105°, the CRL Jackson® closer is your go-to solution for a seamless blend of accessibility and performance in commercial and residential settings.
Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "A" Hardware Package for 1" Top Rail
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Americans with Disabilities Act: Yes
Arm Type: End Load
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1
Bottom Pivot Type: Threshold Mount Pivot
Brand: Jackson
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Includes: 20101M17, 20640, 202000, 20728
Material: Aluminum
Maximum Door Weight: 250
No Hold Open: 105°
Package Type: End Load A
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: ELB2, ELS1
Shipping Limitations: None
Similar: CRL8772A
Spindle: 1/2
Spring Size: Adjustable
Top Rail Depth: 1
Type: Center Hung
UL Listed: Yes
