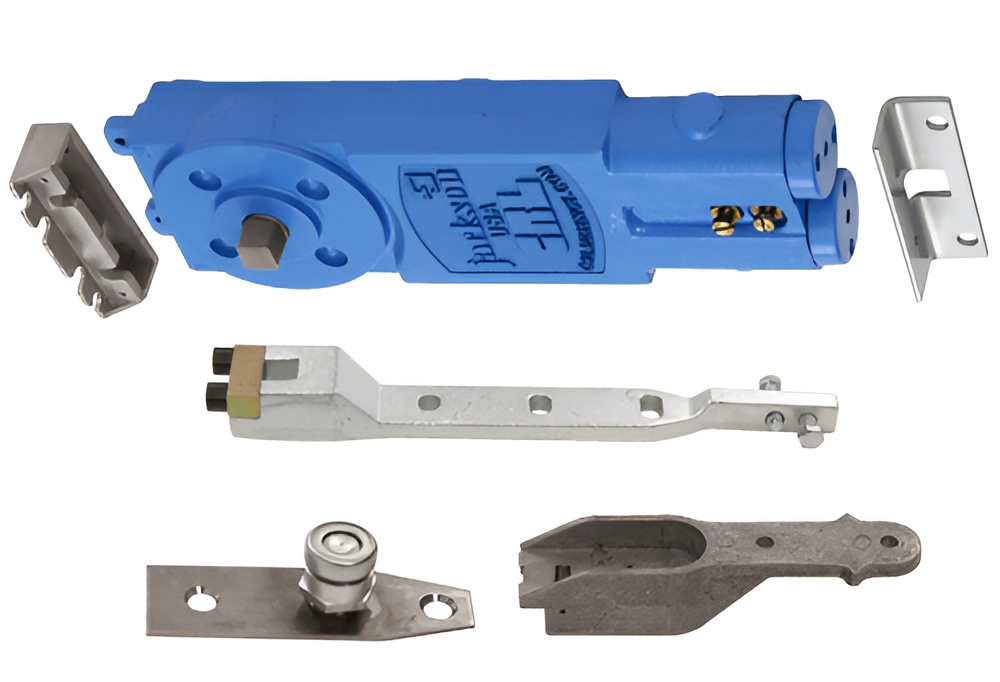

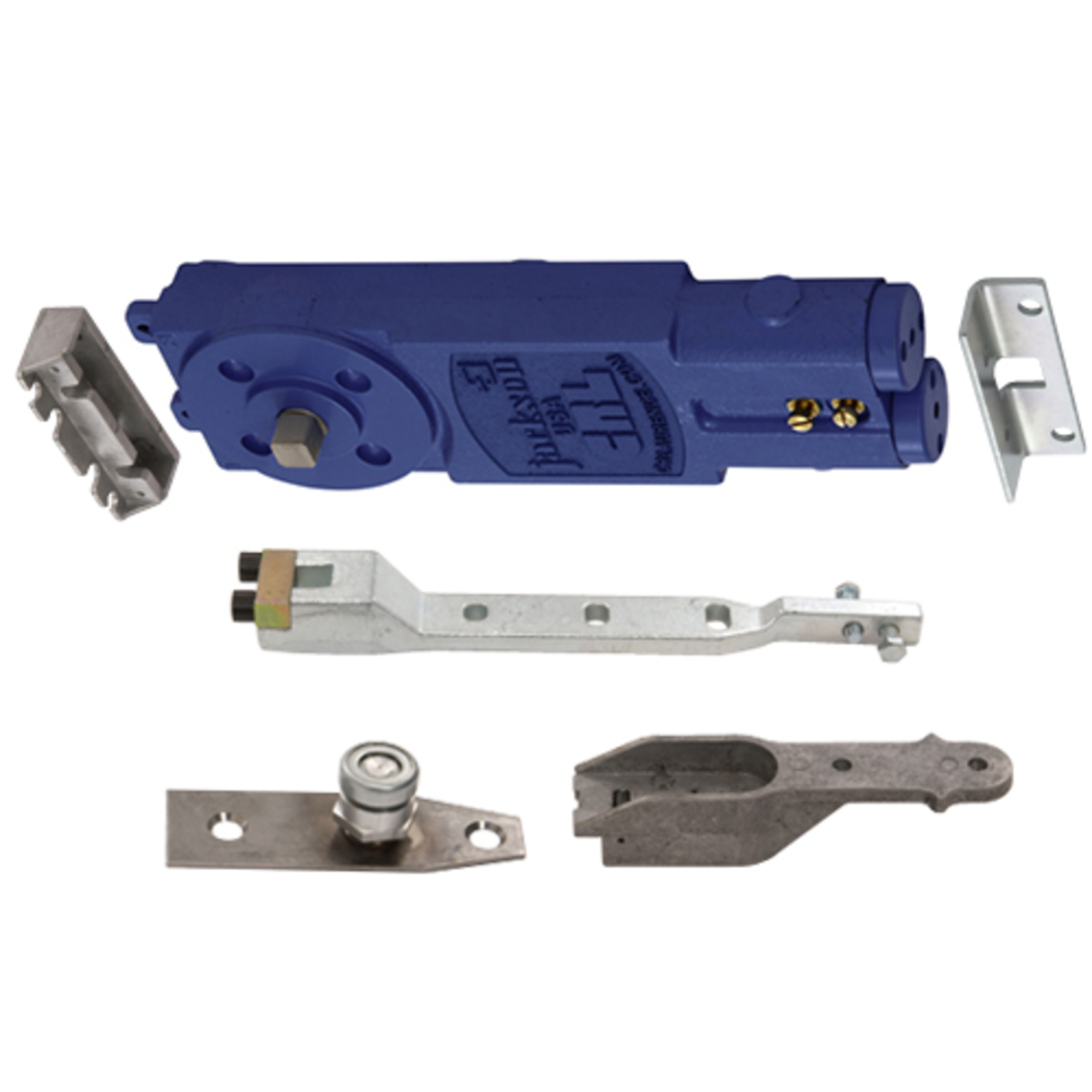

CRL 21101AP17 Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "AP" Hardware Package for 7/8" Top Rail is expertly designed for accessibility and performance. This door closer accommodates doors ranging from 30" to 48" wide, ensuring compliance with A.D.A. opening force requirements while providing excellent control for a variety of door types. Its adjustable spring power allows for customization between sizes 1 (Barrier-Free) and 4 (Regular), making it a versatile solution for different settings. Engineered with a floor-mounted pivot for a 1-9/16" deep bottom rail, this closer supports doors weighing up to 250 pounds. The sleek design is UL Listed, enhancing its suitability for commercial applications. Additionally, it includes a comprehensive package of essential components, ensuring a reliable installation. For optimal performance, it’s recommended that an auxiliary floor or overhead door stop is used to protect the closer and doorway from damage due to over-extension. While it can be adjusted for site conditions, keep in mind that achieving adequate closing force may vary depending on specific door sizes and conditions. With a 5-year limited warranty, the CRL Jackson® closer offers peace of mind alongside its robust functionality.
Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "AP" Hardware Package for 7/8" Top Rail
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Americans with Disabilities Act: Yes
Arm Type: End Load
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1-9/16
Bottom Pivot Type: Floor Mount Pivot
Brand: Jackson
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Includes: 20101M17, 20219, 202000, 201060
Material: Aluminum
Maximum Door Weight: 250
No Hold Open: 105°
Package Type: End Load AP
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: ELB2, ELS1
Shipping Limitations: None
Similar: CRL8772A, 21101A17
Spindle: 1/2
Spring Size: Adjustable
Top Rail Depth: 1
Type: Center Hung
UL Listed: Yes
