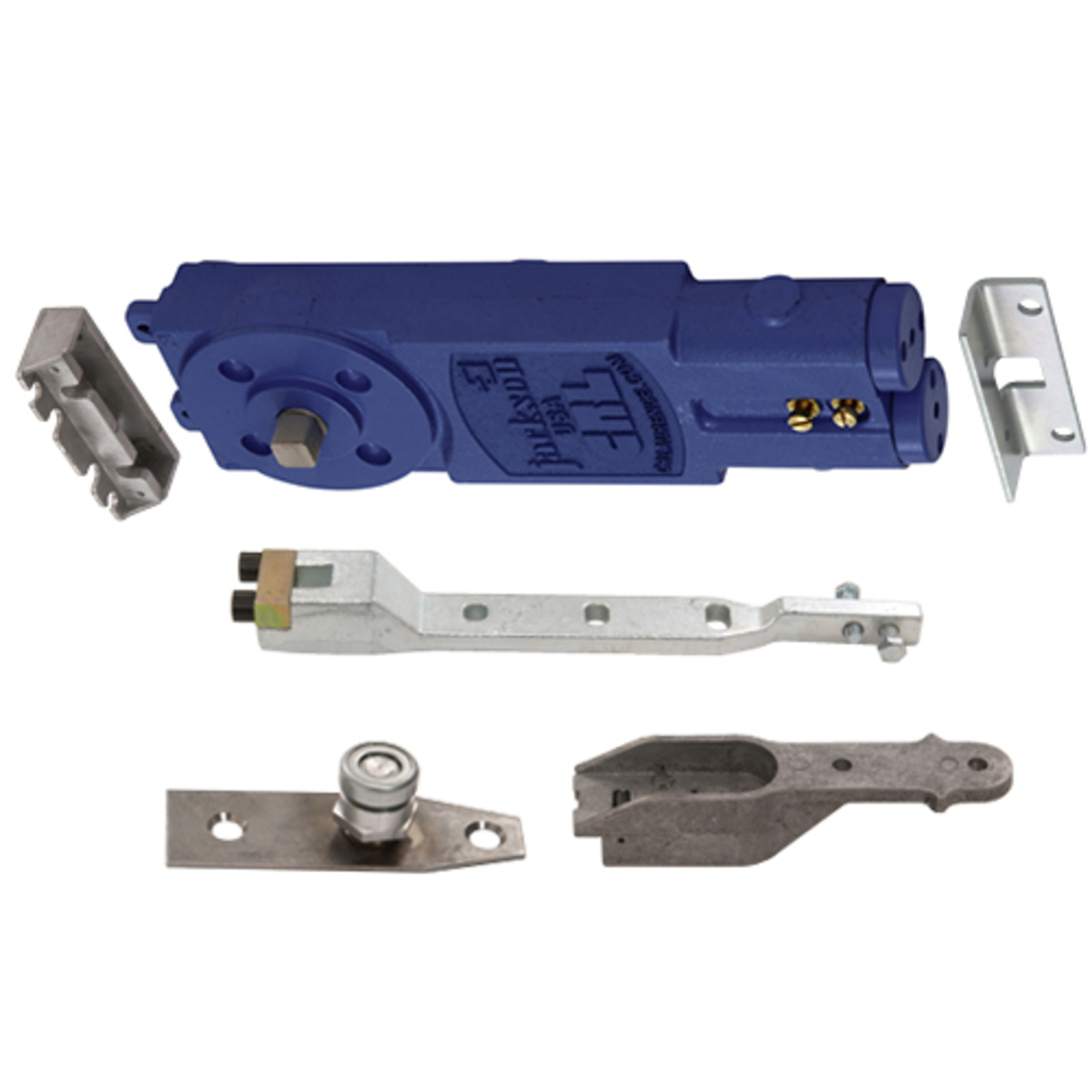

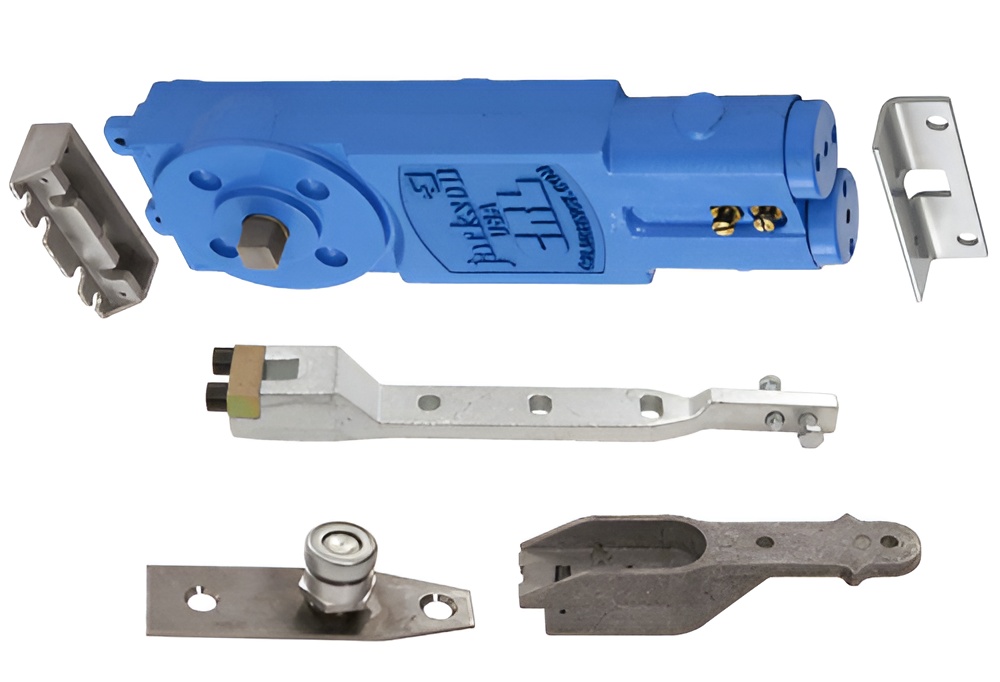

CRL 21101AP18 Jackson Adjustable Spring Power 105 Concealed Closer with AP Hardware

CRL 21101AP18 Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with "AP" Hardware Package for 7/8" Top Rail is an essential solution for both accessibility and versatility in door control. This overhead concealed closer accommodates doors ranging from 30" to 48" wide, ensuring compliance with A.D.A. opening force requirements. Its adjustable spring power can be set anywhere from size 1 (Barrier-Free) to size 4 (Regular), allowing for optimal performance across various door types and sizes. Engineered for durability, this closer features a floor-mounted pivot designed for a 1-9/16" deep bottom rail and is UL listed for safety. With a maximum door weight capacity of 250 pounds, it reliably supports heavy-duty applications. The closer holds open at a 105° angle, providing flexibility in high-traffic areas. Installation is straightforward, and while it can be adjusted to suit site conditions, it's important to note that an auxiliary floor or overhead door stop is recommended to prevent damage from over-extension. Backed by a 5-year limited warranty, the CRL 21101AP18 closer promises both quality and reliability, making it the top choice for building professionals and knowledgeable homeowners alike.

Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with "AP" Hardware Package for 7/8" Top Rail

• Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
• Floor Mounted Pivot for 1-9/16" (40 mm) Deep Bottom Rail
• 5 Year Limited Warranty
• UL Listed

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
• Specifications 08 7100 spring power adjustable overhead door closer.docx
