CRL 21101S19 Jackson Adjustable 90 Concealed Closer with "S" Hardware PackageCRL 21101S19 Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with "S" Hardware Package is engineered for versatility in A.D.A. Barrier-Free applications, accommodating doors from 30" to 48" wide. This innovative overhead concealed door closer meets A.D.A. opening force requirements while providing robust control for various door types and sizes. Designed with a floor-mounted pivot for a 1-1/2" deep bottom rail, the closer features a 3/16" height adjustment, allowing for precise installation and functionality. It is UL Listed and comes with a 5-year limited warranty, ensuring reliability and safety in commercial spaces. The adjustable spring power ranges from size 1 to 4, making it an ideal choice for a range of site conditions and user needs. However, it is important to note that while the closer can be adjusted to comply with A.D.A. standards, varying site conditions may impact its closing force. To protect both the door and the closer, it is recommended to use an auxiliary floor or overhead door stop to prevent over-extension. The CRL 21101S19 is built from durable aluminum, capable of handling a maximum door weight of 250 pounds, making it a solid choice for any professional-grade installation.

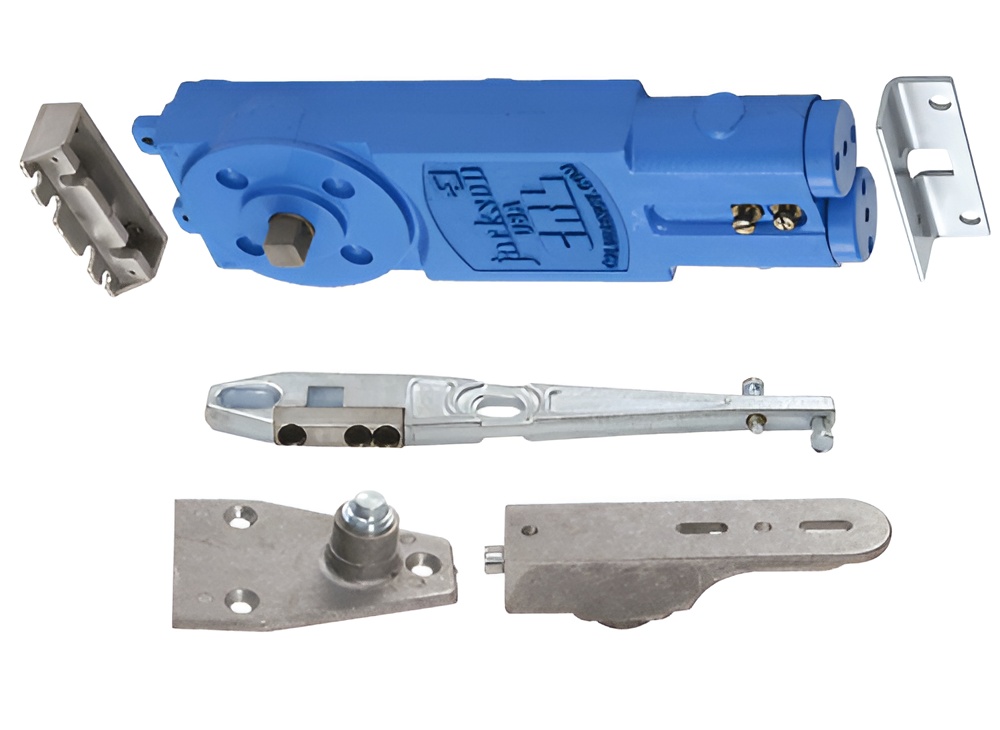

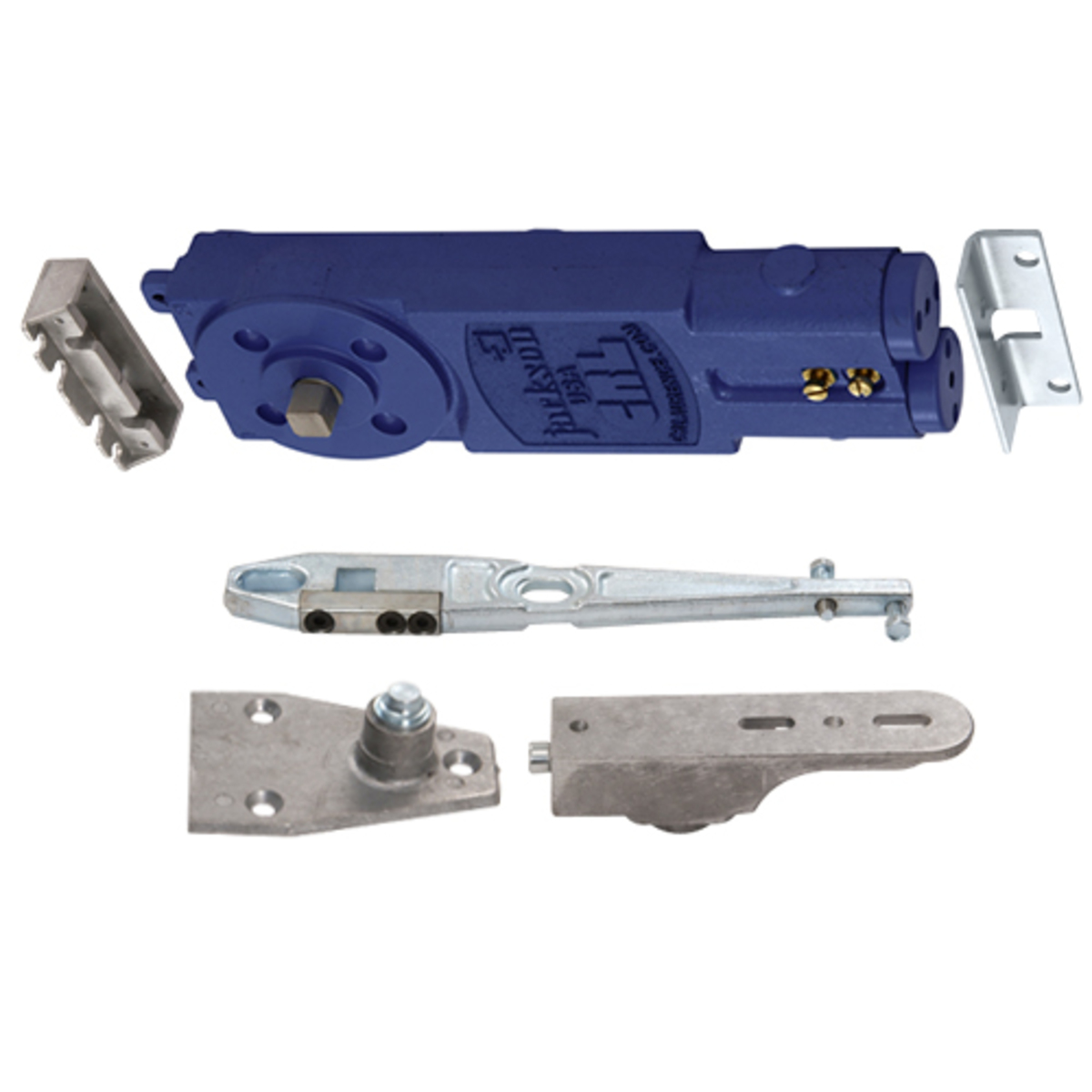

Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with "S" Hardware Package
- Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
- Floor Mounted Pivot for 1-1/2" (38 mm) Deep Bottom Rail
- 3/16" (5 mm) Height Adjustment
- UL Listed
- 5 Year Limited Warranty
This
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A Barrier-Free applications. The Door Closer is adjustable in a range of Sizes from 1 (Barrier-Free) through 4 (Regular), allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements, as well as provide door control for a wide range of door types and sizes. This should make it your #1 choice for versatility and adaptability in a range of conditions.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1-1/2
Bottom Pivot Type: Floor Mount Pivot
Brand: Jackson
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Includes: 20101M19, 20219, 20400B, 20902
Material: Aluminum
Maximum Door Weight: 250
No Hold Open: 90°
Package Type: Side Load S
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: 20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Shipping Limitations: None
Similar: 21101GE19, 21101U19
Spindle: 1/2
Spring Size: Adjustable
Top Rail Depth: 1/2
Type: Center Hung
UL Listed: Yes
