CRL 21101U20 Jackson Adjustable 90 Hold Open Concealed Closer with Side-Load Hardware

C.R. Laurence Jackson® 21101U20 Adjustable Spring Power 90 Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package combines functionality with robust design, making it an ideal choice for both commercial and residential applications. This overhead concealed closer is engineered for doors ranging from 30" to 48" wide (762 to 1.22 m), ensuring versatility across various installations. The closer features a spring power adjustable mechanism, allowing for tailored performance according to specific door needs. It includes a comprehensive hardware package with essential components such as mounting clips, a side-load arm, and a bottom pivot set designed for threshold mounting. With dual independent valves, users can easily adjust the closing and latching speeds for optimal door operation. Constructed from durable aluminum, the closer supports a maximum door weight of 250 pounds, ensuring reliable performance without sacrificing aesthetics. The 90º hold open feature enhances accessibility, while compliance with the Americans with Disabilities Act ensures it meets essential safety standards. Backed by a ten-year limited warranty and U.L. Listed for quality assurance, the CRL Jackson® 21101U20 is a dependable choice for any building professional seeking an effective and stylish door control solution.

Jackson Adjustable Spring Power 90 Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package

• 'U' Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
• Spring Power Adjustable Closer Suitable for Doors From 30" to 48" (762 to 1.22 m) Wide
• Ten Year Limited Warranty U.L. Listed

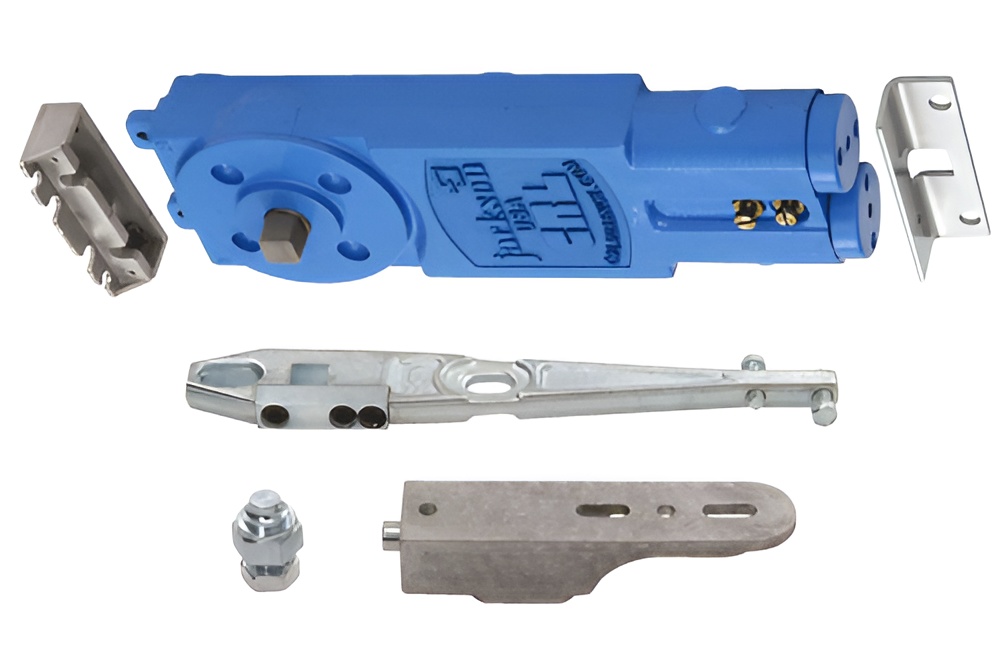

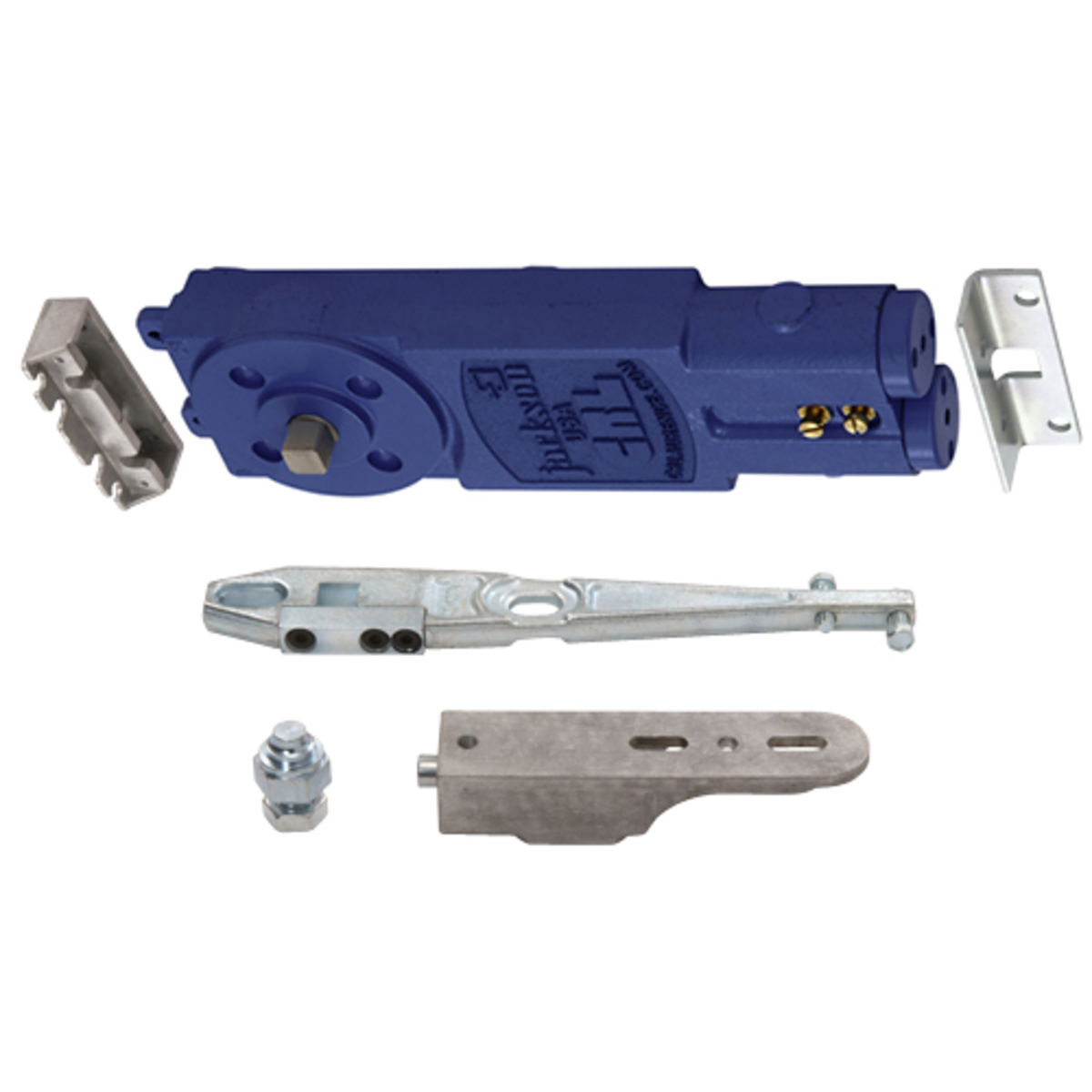

The CRL Jackson® 21101 Series Overhead Concealed Closer with 'U' Side-Load Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 48" (762 to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201380 Mounting Clips, 20400B Side-Load Arm, Type "GE" 20944 Bottom Pivot Set for Threshold mounting, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 90º Hold Open with fixed adjustable spring power size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
