CRL 21201P62820 Jackson Satin Aluminum Adjustable 90 Hold Open Concealed Closer with Slide Arm

C.R. Laurence Jackson® 21201P62820 Satin Aluminum Adjustable Spring Power Multi Size 90 Hold Open Overhead Concealed Closer With "P" Offset Slide-Arm Hardware Package offers a robust solution for managing door movement in a variety of settings. Designed for doors ranging from 30" to 42" wide, this adjustable closer seamlessly integrates into standard header extrusions measuring 1-3/4" x 4" or larger. Its innovative "P" Offset Slide-Arm hardware package is specifically suited for doors with 5/8" shallow top rails, making it a versatile choice for both aluminum and hollow metal door types. The closer features dual independent valves that allow for precise control over closing and latching speeds, ensuring smooth operation. With a reliable hold-open capability at 90 degrees, this closer not only enhances accessibility but also adds convenience in everyday use. Constructed from durable aluminum, it accommodates a maximum door weight of 250 pounds, making it suitable for various applications. Backed by a five-year limited warranty and U.L. listing, the C.R. Laurence closer combines functionality with peace of mind, making it an excellent addition to any architectural project. Its non-handed design simplifies installation, while the included mounting clips and installation instructions facilitate a hassle-free setup.

Jackson Satin Aluminum Adjustable Spring Power Multi Size 90 Hold Open Overhead Concealed Closer With "P" Offset Slide-Arm Hardware Package

• P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
• Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
• Five Year Limited Warranty U.L. Listed

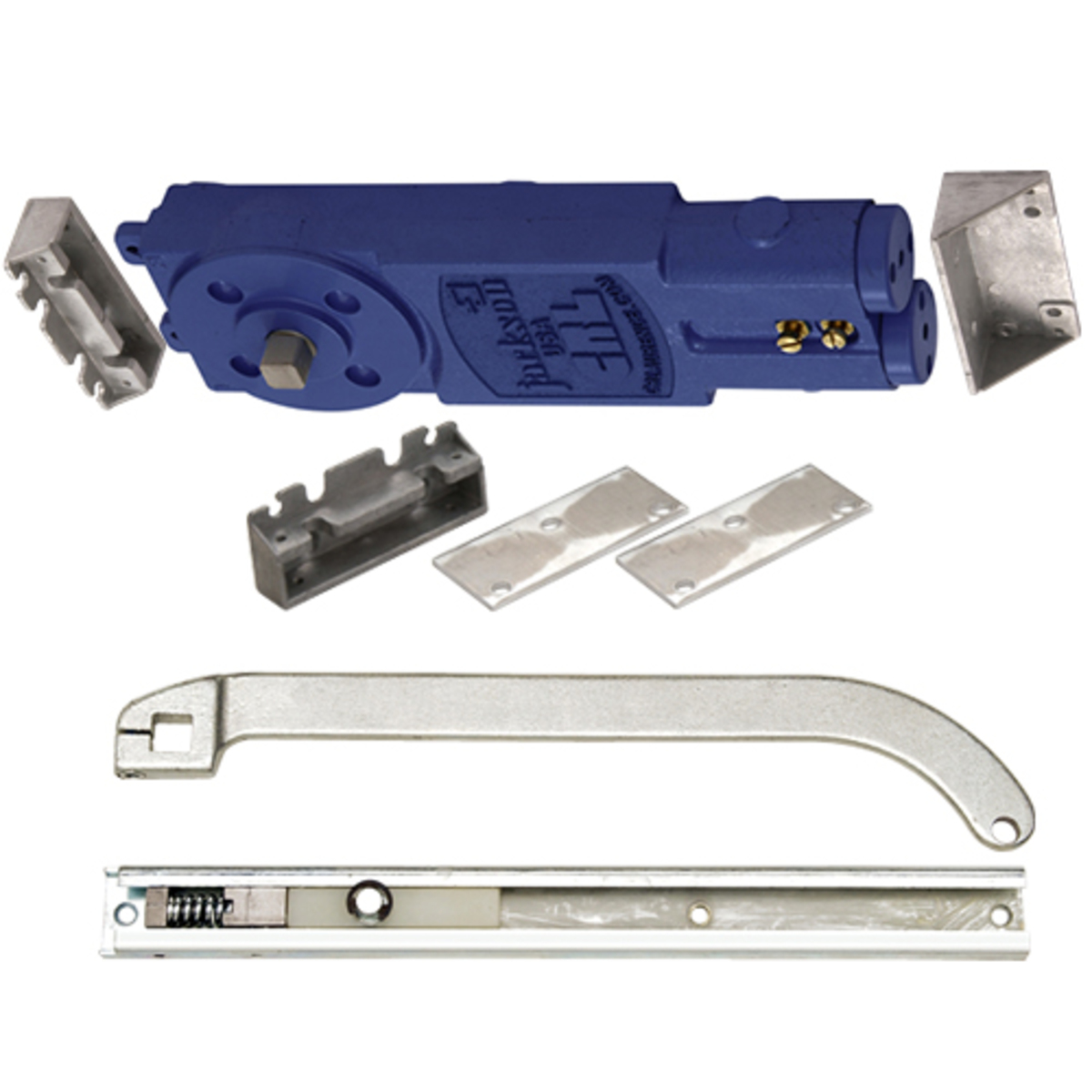

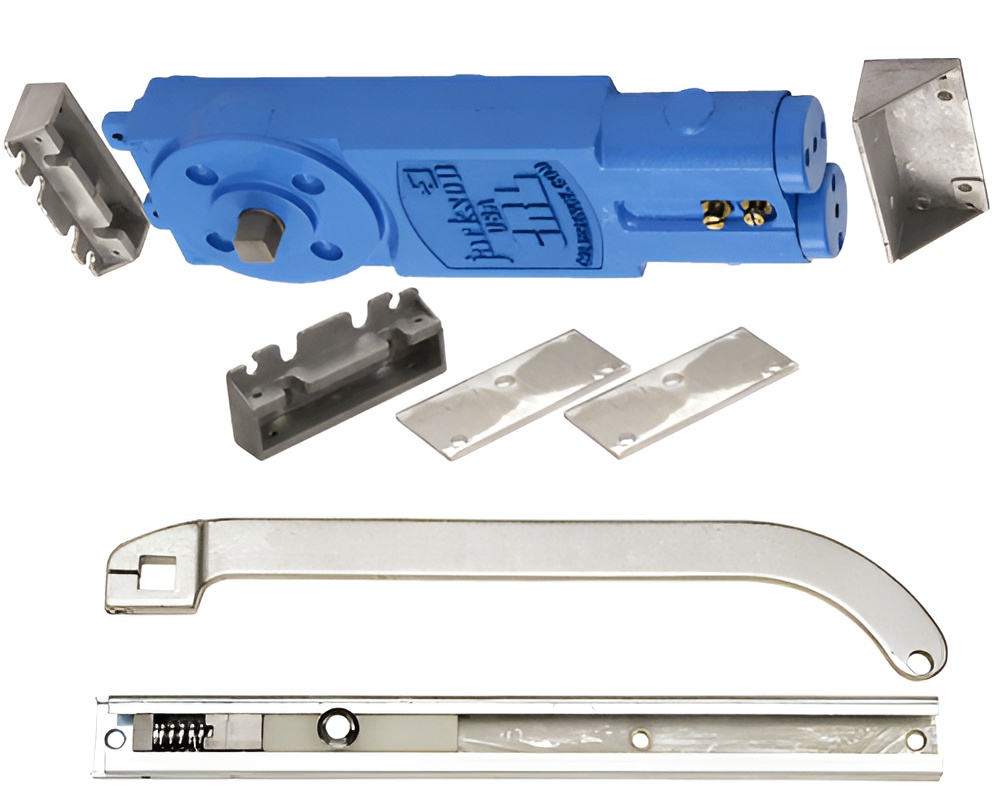

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 20118 Mounting Clips, 201133 Offset Arm Package, 201129 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 90º Hold Open with fixed adjustable spring power multi size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
