CRL 21201U62819 Jackson Adjustable Spring Overhead Concealed Closer with U-Offset Slide Arm

C.R. Laurence Jackson Aluminum Adjustable Spring Power Multi Size 90 No Hold Open Overhead Concealed Closer with U-Offset Slide-Arm Hardware Package is an ideal solution for those seeking efficient door management without compromising aesthetics. Designed to accommodate doors ranging from 30" to 42" (762 mm to 1.07 m) wide, this closer features a spring power adjustable mechanism that ensures smooth operation tailored to your specific needs. The unit comes equipped with a U Offset Slide-Arm Hardware Package, making it suitable for doors with 7/8" (22.2 mm) shallow top rails. Its dual independent valves allow for precise control over both closing and latching speeds, enhancing functionality and reliability. With a fixed adjustable spring power size, it operates with a 90° no hold open feature, ensuring the door closes securely without remaining ajar. Constructed from durable aluminum, this closer supports a maximum door weight of 250 lbs, making it an excellent choice for aluminum and hollow metal doors. Additionally, it is U.L. listed and backed by a ten-year limited warranty, guaranteeing quality and peace of mind. Elevate your door system with the C.R. Laurence Jackson Closer, combining performance, durability, and style seamlessly.

Jackson Aluminum Adjustable Spring Power Multi Size 90 No Hold Open Overhead Concealed Closer with U-Offset Slide-Arm Hardware Package

• U Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
• Spring Power Adjustable Closer Suitable for Doors from 30" to 42" (762 mm to 1.07 m) Wide
• Ten Year Limited Warranty U.L. Listed

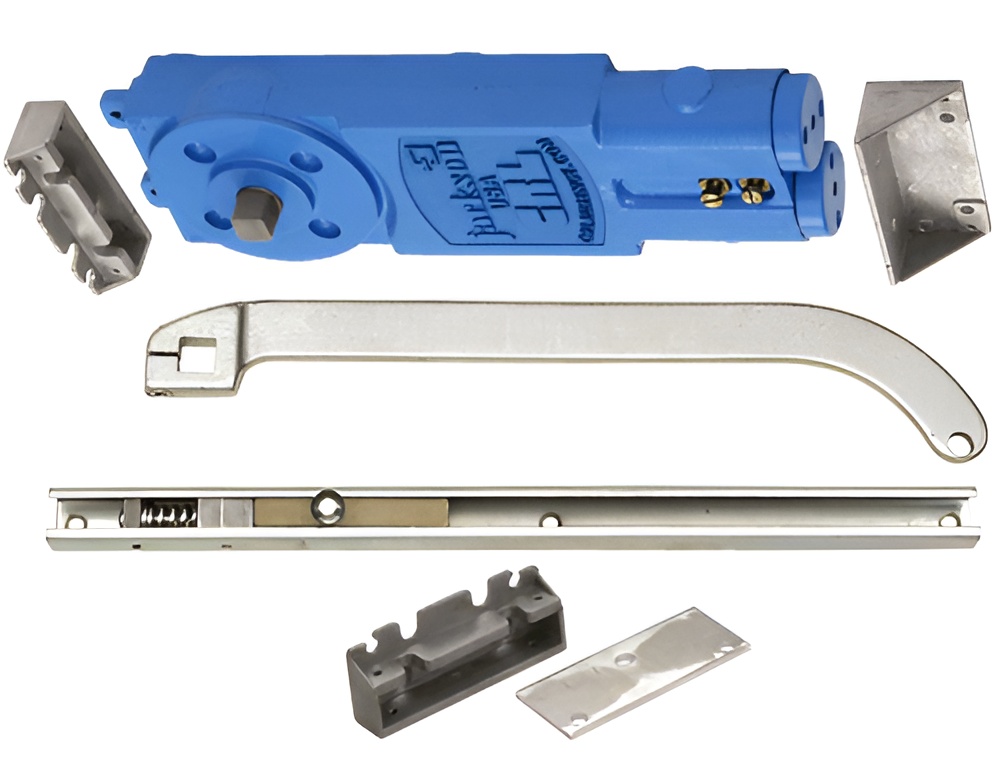

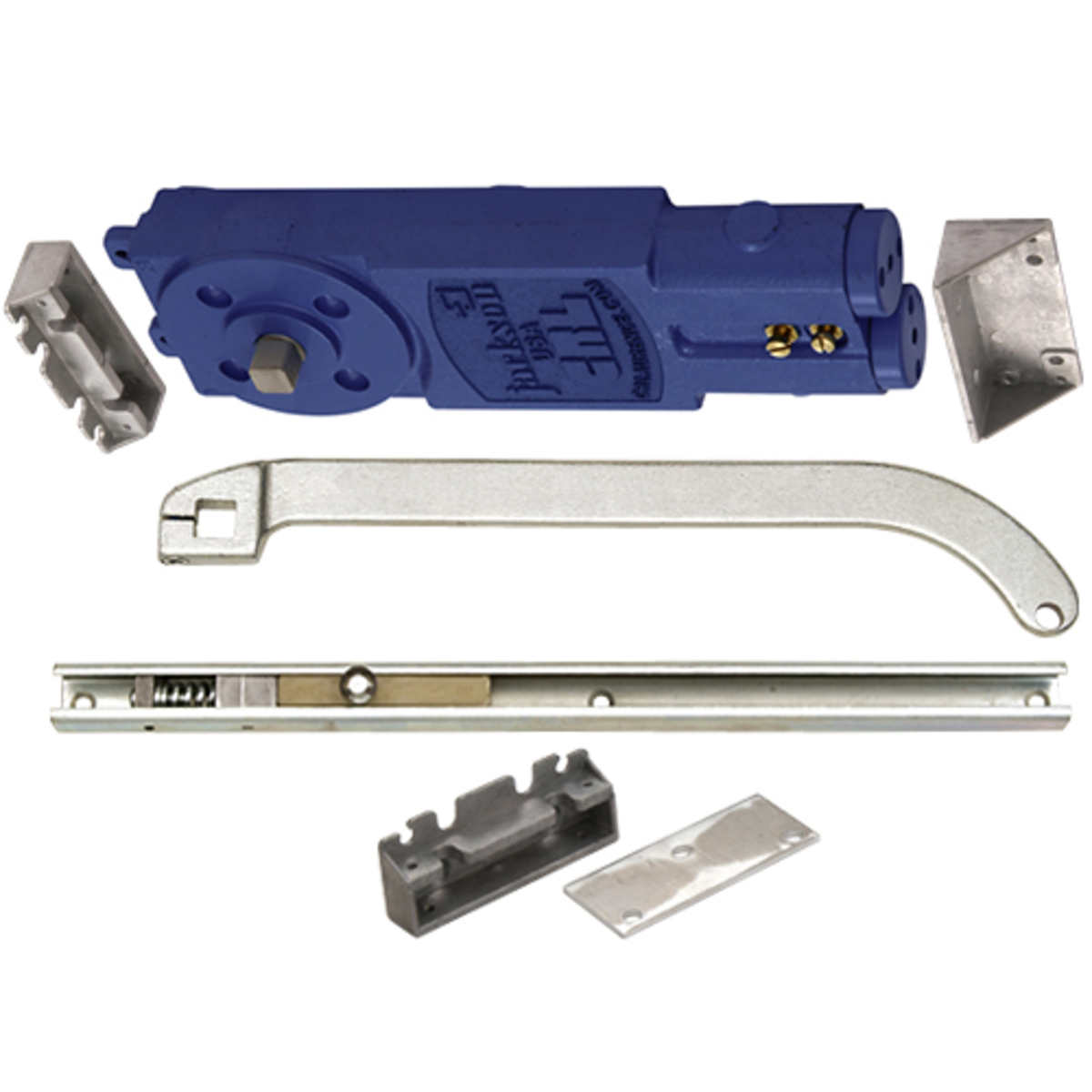

The CRL Jackson® 21201 Series Overhead Concealed Closer with U-Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 90º No Hold Open with fixed adjustable spring power size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
