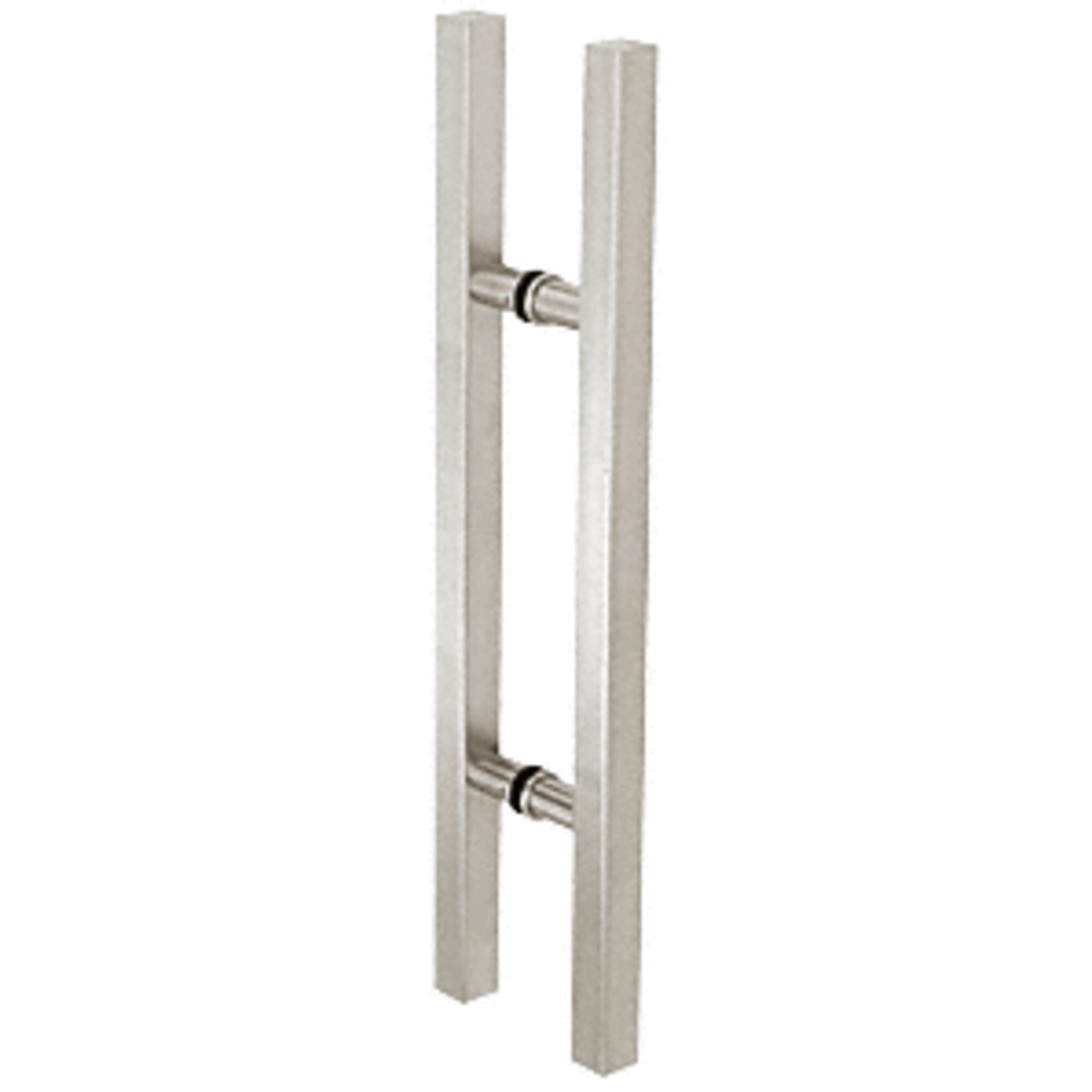

CRL 24SQRLPBS Brushed Stainless Square Ladder Pull Handle, 24" with Round MountsC.R. Laurence 24SQRLPBS Brushed Stainless Glass Mounted Square Ladder Style Pull Handle with Round Mounting Posts offers a sleek, modern solution for enhancing your glass doors. Designed for use with monolithic tempered glass ranging from 3/8" to 3/4" thick, this pull handle combines practicality with contemporary style. Its 24" overall length is ideal for a variety of applications, providing a comfortable grip and streamlined look. Constructed from high-quality 1-1/4" square stainless steel tubing, this pull handle ensures durability and resistance to wear. The back-to-back round mounting posts allow for secure installation with supplied through-bolts. Each set includes essential components such as matching finish metal washers and rubber gaskets, ensuring a neat and professional appearance. For optimal functionality, the handle requires two 5/8" diameter holes to be fabricated in the glass. This piece not only enhances accessibility but also adds a touch of sophistication to any space. With a brushed stainless finish, it complements a range of interior designs, making it a versatile choice for both residential and commercial settings. Remember to perform periodic maintenance to preserve its factory finish, as stainless steel is resistant to corrosion but not entirely rust-proof.
Brushed Stainless Glass Mounted Square Ladder Style Pull Handle with Round Mounting Posts - 24" Overall Length
- Extra Bolts Available, Sold Separately
- Round Mounting Posts
- Use Monolithic Tempered Glass
CRL Square Ladder Style Pull Handle are for back-to-back round mounting posts with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock sizes range from 24", 36", 48" and 60" overall length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1-1/4" square stainless-steel tubing.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 12 in. (305 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 24 in. (610 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
